Summary
Non-combustible aluminium cladding systems.
Non-combustible aluminium cladding systems.
Non-combustible aluminium cladding systems.
Application
Suitable for commercial and residential building exteriors. Can be used in applications such as:
- Rainscreen cladding.
- Soffits.
- Commercial cladding.
- Domestic cladding.
- Balcony soffit cladding.
Suitable for commercial and residential building exteriors. Can be used in applications such as:
- Rainscreen cladding.
- Soffits.
- Commercial cladding.
- Domestic cladding.
- Balcony soffit cladding.
Suitable for commercial and residential building exteriors. Can be used in applications such as:
- Rainscreen cladding.
- Soffits.
- Commercial cladding.
- Domestic cladding.
- Balcony soffit cladding.
Description

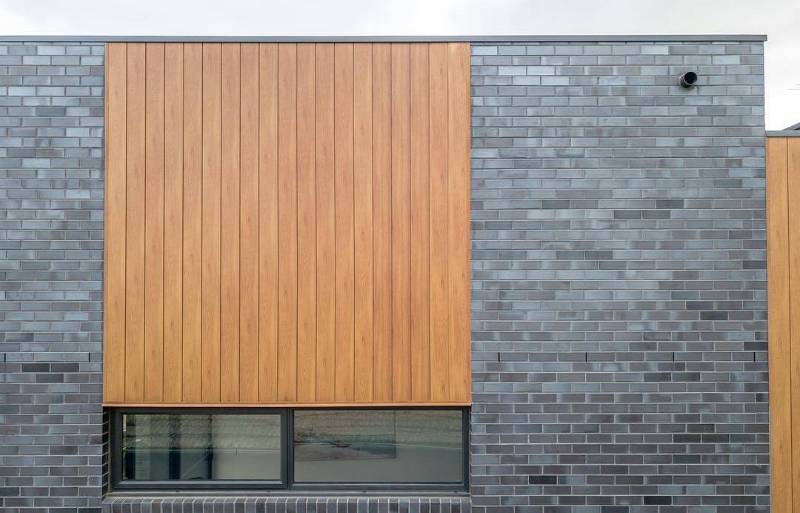

Vincent Timber are offering Knotwood's interlocking rainscreen cladding system, designed with timber profiles in mind this range of three cladding boards and trims provided the benefits of aluminium with the design aesthetic of timber.
Architects and planners design and specify aluminium cladding systems to provide robust protection to building exteriors, while enhancing the aesthetic appeal.
The versatility, durability and sustainability of aluminium cladding systems have made them a popular material selection for commercial and residential building exteriors. Knotwood aluminium cladding systems are stylish wood effect design applications that make contemporary buildings look fresh and inviting. The Knotwood aluminium cladding system is innovative, combining distinctive designs with easy installation.
The special clip fixing system provides space for the expansion and contraction of the cladding board, which gives specifiers the confidence that it won’t twist or warp, regardless of the weather conditions.
The interlocking board system includes extra components to ensure that the cladding can be easily maneuvered around windows, joints and corners.
Features and benefits:
- Made from aluminium which is non-combustible and meets all relevant international fire safety standards.
- Versatile.
- Wide choice of finishes.
- Lightweight.
- Easy to transport, handle and install which makes the work of contractors more manageable.
- Low maintenance, requiring very occasional cleaning rather than repainting at regular intervals.
- VOC-free (volatile organic compounds) coatings and lead free finishes.
- 100% recyclable when removed.
- All systems are fire rated to A2-s1-d0 and classed as non combustible.
Vincent Timber are offering Knotwood's interlocking rainscreen cladding system, designed with timber profiles in mind this range of three cladding boards and trims provided the benefits of aluminium with the design aesthetic of timber.
Architects and planners design and specify aluminium cladding systems to provide robust protection to building exteriors, while enhancing the aesthetic appeal.
The versatility, durability and sustainability of aluminium cladding systems have made them a popular material selection for commercial and residential building exteriors. Knotwood aluminium cladding systems are stylish wood effect design applications that make contemporary buildings look fresh and inviting. The Knotwood aluminium cladding system is innovative, combining distinctive designs with easy installation.
The special clip fixing system provides space for the expansion and contraction of the cladding board, which gives specifiers the confidence that it won’t twist or warp, regardless of the weather conditions.
The interlocking board system includes extra components to ensure that the cladding can be easily maneuvered around windows, joints and corners.
Features and benefits:
- Made from aluminium which is non-combustible and meets all relevant international fire safety standards.
- Versatile.
- Wide choice of finishes.
- Lightweight.
- Easy to transport, handle and install which makes the work of contractors more manageable.
- Low maintenance, requiring very occasional cleaning rather than repainting at regular intervals.
- VOC-free (volatile organic compounds) coatings and lead free finishes.
- 100% recyclable when removed.
- All systems are fire rated to A2-s1-d0 and classed as non combustible.
Vincent Timber are offering Knotwood's interlocking rainscreen cladding system, designed with timber profiles in mind this range of three cladding boards and trims provided the benefits of aluminium with the design aesthetic of timber.
Architects and planners design and specify aluminium cladding systems to provide robust protection to building exteriors, while enhancing the aesthetic appeal.
The versatility, durability and sustainability of aluminium cladding systems have made them a popular material selection for commercial and residential building exteriors. Knotwood aluminium cladding systems are stylish wood effect design applications that make contemporary buildings look fresh and inviting. The Knotwood aluminium cladding system is innovative, combining distinctive designs with easy installation.
The special clip fixing system provides space for the expansion and contraction of the cladding board, which gives specifiers the confidence that it won’t twist or warp, regardless of the weather conditions.
The interlocking board system includes extra components to ensure that the cladding can be easily maneuvered around windows, joints and corners.
Features and benefits:
- Made from aluminium which is non-combustible and meets all relevant international fire safety standards.
- Versatile.
- Wide choice of finishes.
- Lightweight.
- Easy to transport, handle and install which makes the work of contractors more manageable.
- Low maintenance, requiring very occasional cleaning rather than repainting at regular intervals.
- VOC-free (volatile organic compounds) coatings and lead free finishes.
- 100% recyclable when removed.
- All systems are fire rated to A2-s1-d0 and classed as non combustible.
Color
Brown, Grey, Silver, Yellow, White, Black, Other
Brown, Grey, Silver, Yellow, White, Black, Other
Brown, Grey, Silver, Yellow, White, Black, Other
Finish
Woodgrain, Powder-coated, Matt, Other
Woodgrain, Powder-coated, Matt, Other
Woodgrain, Powder-coated, Matt, Other
Material
Aluminium
Aluminium
Aluminium
Shape
Other
Other
Other
Length
5600 mm, Bespoke
5600 mm, Bespoke
5600 mm, Bespoke
Width
100 mm, 150 mm, 200 mm
100 mm, 150 mm, 200 mm
100 mm, 150 mm, 200 mm
Height
16 mm
16 mm
16 mm
Warranty description
15 year
15 year
15 year
SKU Code
VTKEC100LW, VTKEC150LW, VTKEC200LW, VTKAOCC45, VTKECFBF, VTKECFTTLM, VTKECFTTSM, VTKECIECF, VTKECIECM, VTKECIECF, VTKECIECM, VTKECIECLF135, VTKECIECLM135, VTKEDSTR-SQ, VTKECTH9025-6500, VTKECJBF, VTKECTJM
VTKEC100LW, VTKEC150LW, VTKEC200LW, VTKAOCC45, VTKECFBF, VTKECFTTLM, VTKECFTTSM, VTKECIECF, VTKECIECM, VTKECIECF, VTKECIECM, VTKECIECLF135, VTKECIECLM135, VTKEDSTR-SQ, VTKECTH9025-6500, VTKECJBF, VTKECTJM
VTKEC100LW, VTKEC150LW, VTKEC200LW, VTKAOCC45, VTKECFBF, VTKECFTTLM, VTKECFTTSM, VTKECIECF, VTKECIECM, VTKECIECF, VTKECIECM, VTKECIECLF135, VTKECIECLM135, VTKEDSTR-SQ, VTKECTH9025-6500, VTKECJBF, VTKECTJM
Specification
Classification data
Alloy
-
-
-
Grade
6063.
6063.
6063.
Temper
T6.
T6.
T6.
Sheet thickness
1.6 mm.
1.6 mm.
1.6 mm.
Panel size
200 mm.
100 mm.
150 mm.
Finish
-
-
-
Material
Powder-coated., Wood effect., Anodized.
Powder-coated., Wood effect., Anodized.
Powder-coated., Wood effect., Anodized.
Colour
Anthracite Ash., Kwila., Light Oak., Grey Ash., QLD (Queensland) Walnut., Natural Oak., Silver., Primrose., Dune., Woodland Grey., Deep Ocean., White., Black., Hampton Cedar., Shou Sugi Ban., Hinoki., Nordic Oak., Spruce., Norwegian Beech., Sycamore., French Walnut., White Ash., Pacific Teak., Red wood., Teak Brown., Black Cedar., Driftwood., Merbau., Iroko., Royal Oak., Chestnut., Spotted Gum., Blackbutt., Bush cherry., Western Red Cedar., English Chestnut., Black Wenge., Other.
Anthracite Ash., Kwila., Light Oak., Grey Ash., QLD (Queensland) Walnut., Natural Oak., Silver., Primrose., Dune., Woodland Grey., Deep Ocean., White., Black., Hampton Cedar., Shou Sugi Ban., Hinoki., Nordic Oak., Spruce., Norwegian Beech., Sycamore., French Walnut., White Ash., Pacific Teak., Red wood., Teak Brown., Black Cedar., Driftwood., Merbau., Iroko., Royal Oak., Chestnut., Spotted Gum., Blackbutt., Bush cherry., Western Red Cedar., English Chestnut., Black Wenge., Other.
Anthracite Ash., Kwila., Light Oak., Grey Ash., QLD (Queensland) Walnut., Natural Oak., Silver., Primrose., Dune., Woodland Grey., Deep Ocean., White., Black., Hampton Cedar., Shou Sugi Ban., Hinoki., Nordic Oak., Spruce., Norwegian Beech., Sycamore., French Walnut., White Ash., Pacific Teak., Red wood., Teak Brown., Black Cedar., Driftwood., Merbau., Iroko., Royal Oak., Chestnut., Spotted Gum., Blackbutt., Bush cherry., Western Red Cedar., English Chestnut., Black Wenge., Other.
Reaction to fire
-
-
-
Panel external face
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
Panel internal face
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
To BS EN 13501-1, Class A2-s1, d0.
Additional properties
Clip
Not required., Cladding Clip 45 mm.
Not required., Cladding Clip 45 mm.
Not required., Cladding Clip 45 mm.
Trims
Not required., 70 mm finishing base (F).
, 65 mm finishing top large (M)., 30 mm finishing top small (M).
, 65 mm finishing top large (M)., 30 mm finishing top small (M).
Not required., 70 mm finishing base (F).
, 65 mm finishing top large (M)., 30 mm finishing top small (M).
, 65 mm finishing top large (M)., 30 mm finishing top small (M).
Not required., 70 mm finishing base (F).
, 65 mm finishing top large (M)., 30 mm finishing top small (M).
, 65 mm finishing top large (M)., 30 mm finishing top small (M).
Corner trims
Not required., 45 mm internal/external corner (F)., 52 mm internal/external corner (M)., 135° corner (F)., 135° corner (M).
Not required., 45 mm internal/external corner (F)., 52 mm internal/external corner (M)., 135° corner (F)., 135° corner (M).
Not required., 45 mm internal/external corner (F)., 52 mm internal/external corner (M)., 135° corner (F)., 135° corner (M).
StarterType
Not required., Starter trim.
Not required., Starter trim.
Not required., Starter trim.
Tophat channel
Not required., Tophat 90 x 25 mm.
Not required., Tophat 90 x 25 mm.
Not required., Tophat 90 x 25 mm.
Joints
Not required., Joiner base 100 mm (F)., Joiner top 50 mm (M).
Not required., Joiner base 100 mm (F)., Joiner top 50 mm (M).
Not required., Joiner base 100 mm (F)., Joiner top 50 mm (M).
Length
5600 mm., Bespoke.
5600 mm., Bespoke.
5600 mm., Bespoke.
Sustainability data
Contains Red List materials
No
No
No
Country of material origin
Australia
Australia
Australia
Country of product manufacture
Australia
Australia
Australia
Recyclability
100%
100%
100%
