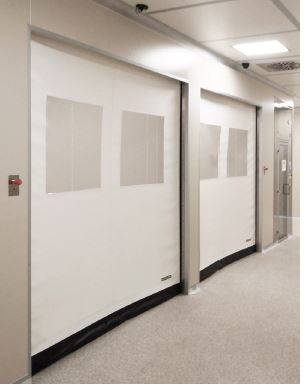

Rapidor Pharma - Clean Room Speed Door For Hygiene and Pressure Control
Rapidor Pharma - Clean Room Speed Door For Hygiene and Pressure Control

Verified 2 months ago

Tekta UK

PVC Curtain

Verified 2 months ago

Tekta UK

Insulated 7 mm Curtain

Summary
A self-repairing, high speed roll up door designed to separate pressurized sterile environments, where low air permeability is required
A self-repairing, high speed roll up door designed to separate pressurized sterile environments, where low air permeability is required
Color
Blue, Brown, Grey, Green, Ivory, Orange, Red, Yellow, White, Black
Blue, Brown, Grey, Green, Ivory, Orange, Red, Yellow, White, Black
Finish
Galvanized, Powder-coated
Galvanized, Powder-coated
Material
Stainless steel, Steel, Polyvinyl chloride (PVC)
Stainless steel, Steel, Polyvinyl chloride (PVC)
Shape
Square, Rectangle
Square, Rectangle
Length
Bespoke
Bespoke
Width
Bespoke
Bespoke
Height
Bespoke
Bespoke

Specification

Opening
2.5 m/s (maximum).
2.5 m/s (maximum).
Closing
0.8 m/s.
0.8 m/s.
Format
Rapid roll up.
Rapid roll up.
Arrangement
Face-fitted across opening., Fitted into reveal.
Face-fitted across opening., Fitted into reveal.
Curtain material
1300 g/m² PVC curtain.
Insulated, 7 mm, translucent 35/ 40%, FDA (white), antistatic.
Material
Galvanized steel, patented sliding system, PE-HD, self-lubricant., Stainless steel, Grade 441, patented sliding system, PE-HD, self-lubricant., Stainless steel, Grade 316, patented sliding system, PE-HD, self-lubricant., Powder-coated steel, patented sliding system, PE-HD, self-lubricant.
Galvanized steel, patented sliding system, PE-HD, self-lubricant., Stainless steel, Grade 441, patented sliding system, PE-HD, self-lubricant., Stainless steel, Grade 316, patented sliding system, PE-HD, self-lubricant., Powder-coated steel, patented sliding system, PE-HD, self-lubricant.
Finish and colour
RAL 9010., RAL 1015., RAL 1003., RAL 2004., RAL 3002., RAL 6026., RAL 7042., RAL 7037., RAL 7035., RAL 5012., RAL 5002., RAL.
RAL 9010., RAL 1015., RAL 1003., RAL 2004., RAL 3002., RAL 6026., RAL 7042., RAL 7037., RAL 7035., RAL 5012., RAL 5002., RAL.
Operation
Push start/ stop button., Two free contacts (Door open/ closed/ alarm)., Automatic/ Manual interlocking between two doors.
Push start/ stop button., Two free contacts (Door open/ closed/ alarm)., Automatic/ Manual interlocking between two doors.

Additional properties

Standards
To BS EN 12604.
To BS EN 12604.
Control panel
Inverter controls in powder-coated steel box., Inverter controls in plastic case., Inverter controls in stainless steel case.
Inverter controls in powder-coated steel box., Inverter controls in plastic case., Inverter controls in stainless steel case.
Power supply
230 V single phase inverter (16 A maximum)., 400 V three phase inverter (10 A maximum).
230 V single phase inverter (16 A maximum)., 400 V three phase inverter (10 A maximum).
Safety
Photocells set IP65, Anti-jam sensor reverse, WiFi safety edge IP65., Multi ray light curtain barrier H2500 IP67.
Photocells set IP65, Anti-jam sensor reverse, WiFi safety edge IP65., Multi ray light curtain barrier H2500 IP67.
Air permeability
To EN 12426-7, Class 2.
To EN 12426-7, Class 2.
ThermalTransmittance
To EN 12428, 6.02 W/m²·K.
To EN 12428, 3.03 W/m²·K.
Resistance to water penetration
To EN 12425, Class 1.
To EN 12425, Class 1.
Dimensions
4500 x 4500 mm (maximum).
4500 x 4500 mm (maximum).
Battery back-up
Not required., UPS Battery.
Not required., UPS Battery.
Emergency release
Counterweight system., UPS Battery.
Counterweight system., UPS Battery.
Ingress protection (IP) rating
Powder-coated steel and Stainless steel: IP54, PVC: IP65.
Powder-coated steel and Stainless steel: IP54, PVC: IP65.
Operating temperature
-10°C with heating kit added.
-10°C with heating kit added.
Curtain colour
RAL 9010., RAL 1015., RAL 1003., RAL 2004., RAL 3002., RAL 6026., RAL 5012., RAL 5002., RAL 5010., RAL 7037., RAL 7042., RAL 7035., RAL 8017., RAL 9005., RAL 6018., RAL 7016.
RAL 9010., RAL 1003., RAL 2004., RAL 3002., RAL 5002., RAL 7035.
