Summary

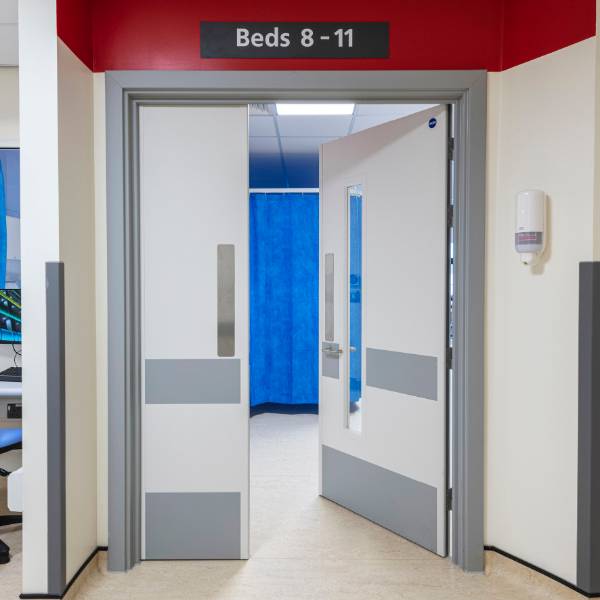

Internal, pre-hung timber flush unequal doorsets.
-
-
Application
Ahmarra's Healthcare Range is a range of severe-duty doorsets tailored to meet the specific needs of hospitals, health centres and care homes.
Engineered for longevity, the range has been specifically
developed to suit the demands of busy healthcare environments.
-
-
Description
Pre-hung doorsets are available with FD30(s), FD60(s) and FD90(s) fire-ratings and 30, 35 and 40–44 RwdB acoustic ratings. Doors come with fully compatible ironmongery options as standard.
Features and benefits:
- BM TRADA Q-Mark Fire Door Manufacture scheme certified.
- NFR, FD30, FD30s, FD60, FD60s, FD90 and FD90s fire ratings available.
- 30, 35 and 40–44 RwdB acoustic ratings available.
- Bespoke designs - available with a wide range of high pressure laminate or wood veneer facings, as well as ready primed eco veneer for on-site painting.
- Made-to-measure - manufactured to suit the specified structural opening.
- Sustainably manufactured from FSC® certified timber.
- Architectural ironmongery - fully compatible and factory-fitted as standard.
- Finger protection is available and tested to BS 8613:2017 - Type A.
- Pre-hung doorsets - the door leaf is pre-hung in the frame for quick and easy installation.
- Various vision panel configurations available.
- Glazed screens, internal windows and fanlights are also available.
- Replacement parts list available for facility management teams to maximise the product’s lifespan and retain certification.
- BM TRADA Q-Mark Fire Door Installation service by experienced installers is available.
Third party accreditation:
- BM TRADA Q-Mark Fire Door Manufacture scheme certified.
- BS EN ISO 9001 Quality Management System certified.
- BS EN ISO 14001 Environmental Management System certified.
- BS EN ISO 14064 Carbon Footprint verified.
- FSC® (Forest Stewardship Council) certified.
- Fleet Operator Recognition Scheme (FORS).
- Guild of Architectural Ironmongers (GAI) full member.
- Architectural and Specialist Door Manufacturers' Association (ASDMA) member.
- Made in Britain member.
-
-
Product certifications
-
-
Color
Beige, Black, Blue, Brown, Cream, Green, Grey, Ivory, Orange, Pink, Purple, Red, Turquoise, White, Yellow, Other
-
-
Finish
Textured, Laminated, Veneered, Primed
-
-
Material
Timber
-
-
Shape
Rectangle
-
-
Length
Bespoke
-
-
Width
Bespoke
-
-
Height
Bespoke
-
-
Warranty description
One year
-
-
SKU Code
HLTH-UNEQUALPAIR
-
-
Specification
Standard
Internal fire-rated doorset to BS 476-22 and third-party-certified.
-
-
Wood in joinery standard
To BS EN 942.
-
-
Configuration
Leaf and part-leaf.
-
-
Doorset size
-
-
-
Performance
-
-
-
Fire resistance
-
-
-
Integrity
To BS 476-22, FD30.
-
-
Acoustic performance
Unrated., 30 RwdB., 35 RwdB., 40–44 RwdB.
-
-
Strength and durability
Severe duty.
-
-
Thermal
-
-
-
Frame
-
-
-
Material
Timber.
-
-
Species
Engineered Softwood (ESWD)., Engineered Hardwood (EHWD)., American White Oak., American Black Walnut., American Cherry., Ash., Maple., Steamed Beech.
-
-
Appearance class
J30.
-
-
Finish
Primed - white., Lacquered - clear., PVC wrapped.
-
-
Door leaf
-
-
-
Core
Severcore™., Timbercore™., Soundcore™.
-
-
Facings
PVC., High pressure laminate., Wood veneer., Primed.
-
-
Species
Not required., American Black Walnut., American Cherry., American White Oak., Ash., European Oak., Maple., Sapele., Steamed Beech., Other.
-
-
Cut
Not required., Crown cut veneer., Quarter cut veneer.
-
-
Lippings
Exposed lippings to all edges., Semi-concealed to all edges., Replaceable PVC edge protection on both vertical edges.
-
-
Glazing
-
-
-
Type
-
-
-
Manifestation
-
-
-
Beading
-
-
-
Type
Not required., Hardwood bolection / cloak bead., Hardwood flush / quirk bead., PVC wrapped., Stainless steel clad.
-
-
Fixing
Factory fitted.
-
-
Hardware
All architectural ironmongery included - as part of a complete pre-hung doorset., Mortice only., Hinges only.
-
-
Accessories
Not required., Glazed side screens., Elevated side screens., Fanlights.
-
-
Additional properties
Lippings
American White Oak., American Black Walnut., American Cherry., Ash., Maple., Steamed Beech.
-
-
Vision panels
Not required., VP01 - single narrow vision panel 200 x 1400 mm., VP03 - narrow vision panels with middle rail 200 x 830 (top) x 420 mm (bottom)., VISTA01- vistamatic pivacy vision panel - rectangle shaped 258 x 800 mm., VISTA02 - vistamatic pivacy vision panel - square shaped 404 x 404 mm., Bespoke size.
-
-
Door frame
Lining with planted door stops (LNG)., Lining with extension and planted stops (LLE)., Lining double action (LDA).
-
-
Architraves
44 x 18 mm., 69 x 18 mm., Bespoke.
-
-
Anti-finger trap Option
Not required., Integral finger protection - aluminium (Safehinge Alumax)., Retro-fit finger protection - resilient blind in a robust aluminium housing (Trap Guard).
-
-
Sustainability data
Country of material origin
United Kingdom
-
-
