Maple Façades

MS3000 25Rc

Last verified by manufacturer over a year ago

Maple Façades

MS3000 25Sq

Summary
Perforated architectural panels.
Perforated architectural panels.
Application

Can be customised to suit any project.

Can be customised to suit any project.

Description

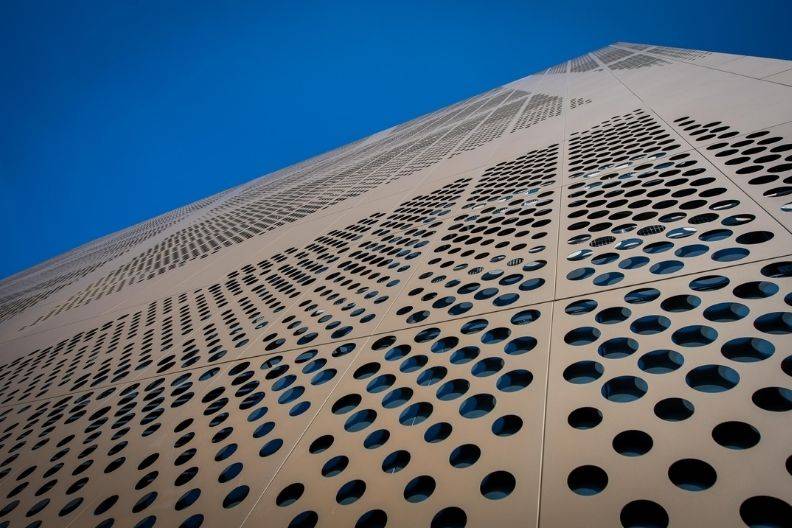

Perforated architectural panels can be created in aluminium or Corten steel. Each aluminium or Corten façade panel is perforated according to the custom design of the façade. Installation is fast and efficient thanks to Maple's engineered bracket design.


Each perforated façade panel can be colour-treated to meet the concept design theme – and all panels are bi-metallic corrosion protected.


Panel Construction:

Aluminium sheet, grade and thickness dependent of project location and wind loadings. Panels have nominal 50mm returns to form the tray. Perforation pattern project specific – manufacturer suggests that hole sizes are at least 10x the thickness of the sheet to reduce the risk of whistling (i.e. 3mm sheet = 30mm min. hole size) – this is an indication only.


Vertical Support Construction:

Façade mullions, made of 6063 T6 extruded aluminium installed to suitable fixing grounds by purpose-designed bracketry.


Bracket Construction:

Laser cut and folded brackets, designed and engineered to suit the project location, wind loadings and tolerances, manufactured from s275 (or superior) mild steel, and installed direct to suitable fixings grounds.


Panel Colour/ Finish:

Specific for each project – polyester powder-coated 60µm or anodized 25µm.


Vertical Support Colour/ Finish:

Specific to each project – polyester powder-coated 60µm or anodized 25µm.


Bracket Colour/ Finish:

Specific to each project – hot dip galvanized or polyester powder-coated 60µm.

Perforated architectural panels can be created in aluminium or Corten steel. Each aluminium or Corten façade panel is perforated according to the custom design of the façade. Installation is fast and efficient thanks to Maple's engineered bracket design.


Each perforated façade panel can be colour-treated to meet the concept design theme – and all panels are bi-metallic corrosion protected.


Panel Construction:

Aluminium sheet, grade and thickness dependent of project location and wind loadings. Panels have nominal 50mm returns to form the tray. Perforation pattern project specific – manufacturer suggests that hole sizes are at least 10x the thickness of the sheet to reduce the risk of whistling (i.e. 3mm sheet = 30mm min. hole size) – this is an indication only.


Vertical Support Construction:

Façade mullions, made of 6063 T6 extruded aluminium installed to suitable fixing grounds by purpose-designed bracketry.


Bracket Construction:

Laser cut and folded brackets, designed and engineered to suit the project location, wind loadings and tolerances, manufactured from s275 (or superior) mild steel, and installed direct to suitable fixings grounds.


Panel Colour/ Finish:

Specific for each project – polyester powder-coated 60µm or anodized 25µm.


Vertical Support Colour/ Finish:

Specific to each project – polyester powder-coated 60µm or anodized 25µm.


Bracket Colour/ Finish:

Specific to each project – hot dip galvanized or polyester powder-coated 60µm.

Color
Other
Other
Finish
Powder-coated, Anodized
Powder-coated, Anodized
Material
Aluminium, Corten
Aluminium, Corten
Shape
Square, Rectangle, Other
Square, Rectangle, Other
Warranty description
Three year
Three year
SKU Code
MS3000
MS3000

Specification

Material
Aluminium., Stainless steel., Steel., Zinc.
Aluminium., Stainless steel., Steel., Zinc.
Finish
Polyester powder coated.
Polyester powder coated.
Colour
-
-
Dimensions
-
-
Hole size (maximum)
25 mm.
15 mm.
Pitch
50 mm.
25 mm.

Additional properties

Materials
Grade 6063 T6 folded Aluminium profiles., Grade 6063 T6 curved and folded Aluminium profiles.
Grade 6063 T6 folded Aluminium profiles., Grade 6063 T6 curved and folded Aluminium profiles.
Panel Type
Rectangle.
Square.
Material
Galvanized mild steel spigot bracket., Profiled aluminium bracket.
Galvanized mild steel spigot bracket., Profiled aluminium bracket.
Finish
Polyester powder coated.
Polyester powder coated.
Fastener
A2 stainless steel, with bi-metallic corrosion protection.
A2 stainless steel, with bi-metallic corrosion protection.
Construction
Grade J57S, 5251 and 1050 aluminium.
Grade J57S, 5251 and 1050 aluminium.
