CPT: Concealed Post Base
CPT: Concealed Post Base
CPT: Concealed Post Base

Last verified by manufacturer over a year ago

Simpson Strong-Tie

CPT88Z

Last verified by manufacturer over a year ago

Simpson Strong-Tie

CPT44Z

Last verified by manufacturer over a year ago

Simpson Strong-Tie

CPT66Z

Summary
The CPT post base provides a clean look while providing a 25 mm stand off height above the ground, reducing the potential for decay at the post end.
The CPT post base provides a clean look while providing a 25 mm stand off height above the ground, reducing the potential for decay at the post end.
The CPT post base provides a clean look while providing a 25 mm stand off height above the ground, reducing the potential for decay at the post end.
Application

For fixing timber posts to concrete.

For fixing timber posts to concrete.

For fixing timber posts to concrete.

Description

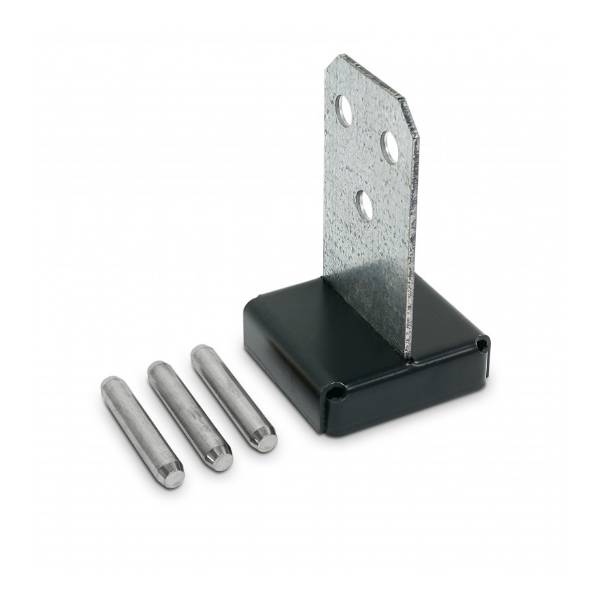

The CPT Concealed Post Base can be fixed to a concrete base with M12 resin anchors (sold separately).


The flitch plate, washers and standoff base are pre-galvanized steel. The standoff base has an additional textured, flat black powder-coat finish for aesthetic purposes. The 12 mm diameter dowels are mechanically galvanized.


Features and benefits:

  • CE marked.
  • Suitable for outdoor use.
  • Service class 3.

The CPT Concealed Post Base can be fixed to a concrete base with M12 resin anchors (sold separately).


The flitch plate, washers and standoff base are pre-galvanized steel. The standoff base has an additional textured, flat black powder-coat finish for aesthetic purposes. The 12 mm diameter dowels are mechanically galvanized.


Features and benefits:

  • CE marked.
  • Suitable for outdoor use.
  • Service class 3.

The CPT Concealed Post Base can be fixed to a concrete base with M12 resin anchors (sold separately).


The flitch plate, washers and standoff base are pre-galvanized steel. The standoff base has an additional textured, flat black powder-coat finish for aesthetic purposes. The 12 mm diameter dowels are mechanically galvanized.


Features and benefits:

  • CE marked.
  • Suitable for outdoor use.
  • Service class 3.
Color
Black
Black
Black
Finish
Powder-coated
Powder-coated
Powder-coated
Material
Steel
Steel
Steel
Shape
Square
Square
Square
Length
89 mm, 133 mm, 184 mm
89 mm, 133 mm, 184 mm
89 mm, 133 mm, 184 mm
Width
89 mm, 133 mm, 184 mm
89 mm, 133 mm, 184 mm
89 mm, 133 mm, 184 mm
SKU Code
CPT
CPT
CPT

Specification

Classification data
Dimensions
184 x 184 mm.
89 x 89 mm.
133 x 133 mm.
Material
Carbon steel.
Carbon steel.
Carbon steel.
Finish as delivered
-
-
-
Applied finish
Galvanized and powder-coated.
Galvanized and powder-coated.
Galvanized and powder-coated.
Colour
Black.
Black.
Black.

Additional properties

Fasteners
Into post: 3no. Ø13x120 mm dowels; Into concrete: 2no. Ø12 mm resin anchors.
Into post: 3no. Ø13x70 mm dowels; Into concrete: 2no. Ø12 mm resin anchors.
Into post: 3no. Ø13x120 mm dowels; Into concrete: 2no. Ø12 mm resin anchors.
