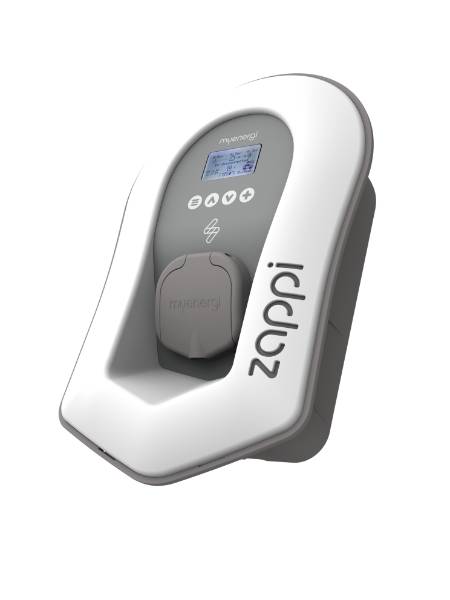

Home EV charging.

zappi has three charging modes which makes it great for all homeowners. Those with grid-tied micro-generation systems like wind or solar can use the eco settings allowing users to save on energy bills. The charging current is automatically and continually adjusted in response to on-site generation and household power consumption. In FAST charge mode, zappi operates like an ordinary EV charging station.

Charging Modes:

• ECO: Charge power is continuously adjusted in response to changes in generation or power consumption elsewhere in the home. Charging will continue until the vehicle is fully charged, even if power is drawn from the grid.
• ECO +: Charge power is continuously adjusted in response to changes in generation or power consumption elsewhere in the home. Charging will pause if there is too much imported power, continuing only when there is surplus free power available.
• FAST: In this mode, the vehicle will be charged at maximum power. This is just like an ordinary Mode 3 charging point.

Technical characteristics:

• Dynamic load balancing: Optional setting to limit current drawn from the unit supply or the grid.
• Standby power consumption: 3 W.
• Economy tariff sense input: 230 V AC sensing (4 kV isolated).
• Wireless interface: 868 MHz (proprietary protocol) for wireless sensor and remote monitoring options.
• Grid current sensor: 100 A maximum primary current, 16 mm maximum cable diameter.
• Cable entry: Rear, bottom or side.
• Circuit breaker: 32 A Curve B.
• Earthing arrangement: TN: Can be connected to the PME supply. Complies with BS 7671:2018-amd1:2020722.411.4.1 (v); TT: Earth resistance <200 Ω according to BS 7671:2018, or <100 Ω for some vehicles.

Features and benefits:

• Three charging modes: ECO, ECO + and FAST.
• Optimises microgeneration self-consumption.
• Works with solar PV or wind turbine systems.
• Economy tariff sense input.
• Programmable timer function.
• Charge and event logging.
• Pin-code lock function.
• OZEV (home/ work scheme) approved
• Tap operated display backlight.
• Integral cable holster.
• Remote control and monitoring through the myenergi app
• Supplied with clip-on grid current sensor
• Works alongside battery storage systems.
• A future proof installation.
• Three-year warranty.
