Summary
Instantaneous domestic hot water (DHW) generator with three port control valve.
-
-
Application
Applications include:
- Schools.
- Hospitals.
- Leisure centres.
- Hotels.
- Sports stadiums.
- Motorway services stations.
- Nursing homes.
- Anywhere where an uninterrupted DHW supply is imperative.
-
-
Description

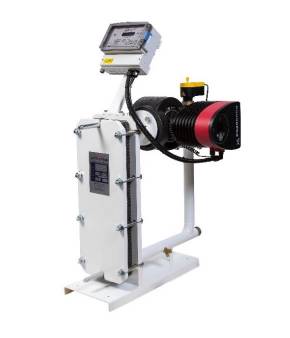

The GP Series (Gasketed Plate) is an instantaneous DHW generator consisting of Gasketed plate heat exchanger, primary pump, control valve and intelligent control system all mounted on an epoxy coated chassis.
Features and benefits:
- Available with outputs from 517–1120 kW.
- Three port control valve.
- Grundfos Magna 3 50-120 primary pump.
- Virdis controller.
- From 148.2 to 321.6 litres per minute of hot water at 60°C.
-
-
Color
White
-
-
Finish
Coated
-
-
Material
Steel, EPDM, Stainless steel, Cast iron
-
-
Shape
Rectangle
-
-
Length
865 mm
-
-
Width
537 mm
-
-
Height
1165 mm
-
-
SKU Code
GPPH322, GPPH26, GPPH30, GPPH334, GPPH338, GPPH342, GPPH346, GPPH350, GPPH354, GPPH358, GPPH362, GPPH366, GPPH370, GPPH374
-
-
Specification
Classification data
Primary medium
-
-
-
Fluid
Hot water.
-
-
Flow rate
3.79 L/s.
-
-
Inlet temperature
80°C.
-
-
Outlet temperature
110°C.
-
-
Working pressure
1 N/mm².
-
-
Secondary medium
-
-
-
Fluid
Water.
-
-
Flow rate
2.47 L/s.
-
-
Inlet temperature
10°C.
-
-
Outlet temperature
60°C.
-
-
Working pressure
0.60 N/mm².
-
-
Pressure loss
23 kPa.
-
-
Output
517 kW.
-
-
Material
-
-
-
Plates
Stainless steel.
-
-
Gaskets
EPDM.
-
-
Additional properties
Primary return temperature
48°C.
-
-
Plate material/ colour
Epoxy coated steel 25 mm thick (rear chassis plate - stationary).
Epoxy coated steel 20 mm thick (front chassis plate - moveable).
Epoxy coated steel 20 mm thick (front chassis plate - moveable).
-
-
Bolts
20 mm carbon steel.
-
-
Control valve
3-Port.
-
-
Pump
Grundfos Magna 3 50-120.
-
-
Actuator
230 V, modulating, motor open/close.
-
-
Control
EcoFlow Controller.
-
-
Control panel
ABS enclosure.
-
-
Power supply
230 V, Single Phase, 50 Hz.
-
-
Dimensions
865 x 537 x 1165 mm.
-
-
Weight
250 kg.
-
-
Accessories
Not required., Duplex primary (double) pump., +1 T transfer pump to buffer., +1R recirculating pump., Custom fit insulation jacket., Tamper proof metal box cover.
-
-
