Packaged Plate Heat Exchangers - GPPH3[22-74] 50/120 (517-1120KW) - Packaged Plate Heat Exchanger

Verified by manufacturer 4 months ago

GPPH322 - 50/120 - 517 kW

Virdis Energy Ltd Variant:

Instantaneous domestic hot water (DHW) generator with three port control valve.

Jump to:
0333 567 1121 Website

Application

Applications include:

  • Schools.
  • Hospitals.
  • Leisure centres.
  • Hotels.
  • Sports stadiums.
  • Motorway services stations.
  • Nursing homes.
  • Anywhere where an uninterrupted DHW supply is imperative.

Description

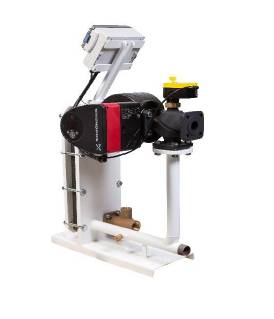

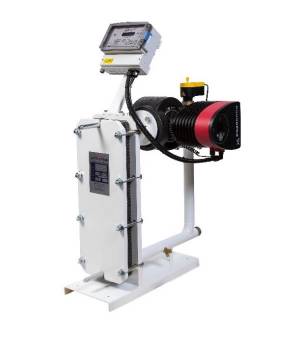

The GP Series (Gasketed Plate) is an instantaneous DHW generator consisting of Gasketed plate heat exchanger, primary pump, control valve and intelligent control system all mounted on an epoxy coated chassis.


Features and benefits:

  • Available with outputs from 517–1120 kW.
  • Three port control valve.
  • Grundfos Magna 3 50-120 primary pump.
  • Virdis controller.
  • From 148.2 to 321.6 litres per minute of hot water at 60°C.

General information

Color

White

Finish

Coated

Material

Steel

EPDM

Stainless steel

Cast iron

Shape

Rectangle

Length

865 mm

Width

537 mm

Height

1165 mm

Uniclass

Pr_60_60_38_62 Plate heat exchangersPrimary

CAWS

T90/110 Heating system

T90/110 Heating system

Specification data - Plate heat exchangers

Primary medium

-

Fluid

Hot water.

Flow rate

3.79 L/s.

Manufacturer guidance

Primary flow rate at 80°C.

Inlet temperature

80°C.

Outlet temperature

110°C.

Manufacturer guidance

Maximum primary side temperature.

Working pressure

1 N/mm².

Manufacturer guidance

Maximum primary side pressure.

Secondary medium

-

Fluid

Water.

Flow rate

2.47 L/s.

Manufacturer guidance

Secondary flow rate at 60°C.

Inlet temperature

10°C.

Outlet temperature

60°C.

Working pressure

0.60 N/mm².

Manufacturer guidance

Maximum secondary side pressure.

Pressure loss

23 kPa.

Manufacturer guidance

Secondary pressure drop at peak output.

Output

517 kW.

Material

-

Plates

Stainless steel.

Guidance for specification option:

316 grade.

Gaskets

EPDM.

Primary return temperature

48°C.

Manufacturer guidance

Primary return temperature at peak output.

Plate material/ colour

Epoxy coated steel 25 mm thick (rear chassis plate - stationary).
Epoxy coated steel 20 mm thick (front chassis plate - moveable).

Bolts

20 mm carbon steel.

Manufacturer guidance

Retaining bolts material.

Control valve

3-Port.

Guidance for specification option:

  • Sauter BUE040F200 + AVM105F100.
  • Cast iron, DN40, PN10.

Manufacturer guidance

Primary control valve.

Pump

Grundfos Magna 3 50-120.

Manufacturer guidance

Primary pump.

Actuator

230 V, modulating, motor open/close.

Manufacturer guidance

Primary control valve actuator.

Control

EcoFlow Controller.

Control panel

ABS enclosure.

Manufacturer guidance

Control panel material.

Power supply

230 V, Single Phase, 50 Hz.

Dimensions

865 x 537 x 1165 mm.

Weight

250 kg.

Accessories

Not required.

Duplex primary (double) pump.

+1 T transfer pump to buffer.

+1R recirculating pump.

Custom fit insulation jacket.

Show more

Manufacturer guidance

Consult manufacturer's literature for details.
