Summary
Adaptive escape sign luminaire that enables real-time adjustment of exit routes according to the nature and location of a hazard.
-
-
Application
- Particularly suitable for use in outdoor areas or in industrial applications.
- Atlantic LED R and Atlantic LED O are suitable for use in food processing industry in accordance with standards IFS and HACCP.
- Applications include factories, warehouses, underground car parks, workshops, tunnels, escape routes and corridors.
-
-
Description

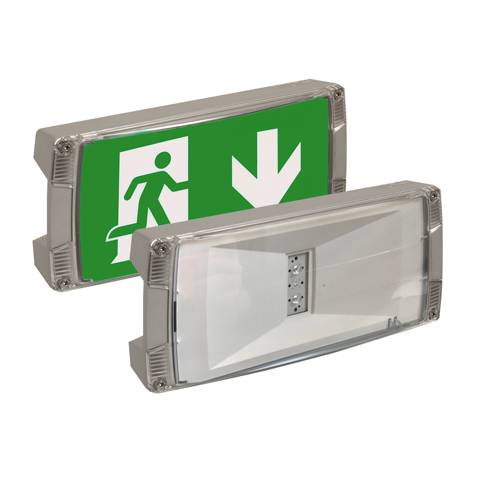

The Atlantic LED CGLine+ luminaire series fulfils protection rating IP65, and with UV-resistant materials and an especially tough construction, it is particularly suitable for use in outdoor areas or in industrial applications. Atlantic LED R and Atlantic LED O are also suitable for use in food processing industry in accordance with standards IFS and HACCP.
The range includes safety luminaires with different optics for escape route or anti-panic illumination and single sided or double sided exit signs. The use of LEDs, automatic testing and monitoring devices (CGLine+) significantly reduce the operating and maintenance costs of the installation.
Features and benefits:
- 24 m viewing distance.
- High luminance >500 cd/m².
- Li-Ion battery.
- Selectable duration of 1 h, 3 h, 8 h.
- Comply with the requirements of food-law HACCP.
- CGLine+ technology.
- Degree of protection IP65 and IK10.
- Robust construction from aluminium diecast.
- High impact resistant cover made of polycarbonate.
- Wall and ceiling installation.
- Safety luminaire with asymmetric and symmetric optics.
- Optional versions with a self-regulating battery heater allow ambient temperature down to -20°C.
-
-
Color
Grey
-
-
Material
Aluminium, Polycarbonate
-
-
Shape
Rectangle
-
-
Width
303 mm
-
-
SKU Code
40071354870, 40071354871, 40071354872, 40071354873, 40071354875, 40071354876, 40071354877, 40071354878
-
-
Specification
Classification data
Standards
To BS EN 60598-2-22.
-
-
Luminaire description
Exit sign luminaire Atlantic LED S, single sided, CGLine+.
-
-
Classification
-
-
-
Electric shock
Class I.
-
-
Ingress protection (minimum)
IP65.
-
-
Circumstances of use
Normal.
-
-
Type
X.
-
-
Mode of operation
0., 1.
-
-
Duration of emergency mode (minimum)
60.
-
-
Impact protection (minimum)
IK10.
-
-
Controlgear position
Integral within luminaire.
-
-
Nominal voltage
230 V a.c.
-
-
Luminaire power factor
Not applicable.
-
-
LED luminaires
-
-
-
Initial LED luminaire efficacy (minimum)
-
-
-
Wattage
7.0 W.
-
-
Graphical symbol format
Pictogram, right., Pictogram, left., Pictogram, down.
-
-
Additional properties
Batteries
Li-Ion battery, 3.7 V/ 4 Ah.
-
-
Housing
Aluminium die-cast housing.
White polycarbonate reflector.
Clear polycarbonate diffuser.
White polycarbonate reflector.
Clear polycarbonate diffuser.
-
-
Housing colour
Grey.
-
-
Mounting
Wall surface mounting., Ceiling surface mounting.
-
-
