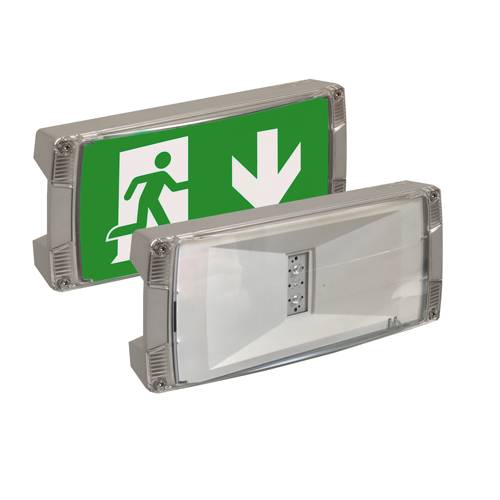

Atlantic LED CG-Line - Self-Contained Safety and Exit Sign
Verified by manufacturer 6 months ago
Atlantic LED S 1-8h/D CGLine+, Single-Sided - 40071354870
Atlantic LED S 1-8h/D CGLine+, Single-Sided - 40071354870
Adaptive escape sign luminaire that enables real-time adjustment of exit routes according to the nature and location of a hazard.
Application
- Particularly suitable for use in outdoor areas or in industrial applications.
- Atlantic LED R and Atlantic LED O are suitable for use in food processing industry in accordance with standards IFS and HACCP.
- Applications include factories, warehouses, underground car parks, workshops, tunnels, escape routes and corridors.
Description
The Atlantic LED CGLine+ luminaire series fulfils protection rating IP65, and with UV-resistant materials and an especially tough construction, it is particularly suitable for use in outdoor areas or in industrial applications. Atlantic LED R and Atlantic LED O are also suitable for use in food processing industry in accordance with standards IFS and HACCP.
The range includes safety luminaires with different optics for escape route or anti-panic illumination and single sided or double sided exit signs. The use of LEDs, automatic testing and monitoring devices (CGLine+) significantly reduce the operating and maintenance costs of the installation.
Features and benefits:
- 24 m viewing distance.
- High luminance >500 cd/m².
- Li-Ion battery.
- Selectable duration of 1 h, 3 h, 8 h.
- Comply with the requirements of food-law HACCP.
- CGLine+ technology.
- Degree of protection IP65 and IK10.
- Robust construction from aluminium diecast.
- High impact resistant cover made of polycarbonate.
- Wall and ceiling installation.
- Safety luminaire with asymmetric and symmetric optics.
- Optional versions with a self-regulating battery heater allow ambient temperature down to -20°C.
General information
Color | Grey |
Material | Aluminium Polycarbonate |
Shape | Rectangle |
Width | 303 mm |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires V90/510 General-purpose luminaires V90/510 General purpose luminaires |
Specification data - Emergency luminaires
Standards | To BS EN 60598-2-22. |
Luminaire description | Exit sign luminaire Atlantic LED S, single sided, CGLine+. |
Classification | |
Electric shock | Class I. |
Ingress protection (minimum) | IP65. |
Circumstances of use | Normal. |
Type | X. |
Mode of operation | 0.1. |
Duration of emergency mode (minimum) | 60.Guidance for specification option: Configurable duration, 1 h, 3 h or 8 h. |
Impact protection (minimum) | IK10. |
Controlgear position | Integral within luminaire. |
Nominal voltage | 230 V a.c.Guidance for specification option: 50/60 Hz. |
Luminaire power factor | Not applicable. |
LED luminaires | |
Initial LED luminaire efficacy (minimum) | Guidance for specification option: Light source: LED, not exchangeable. |
Wattage | 7.0 W.Guidance for specification option: 7.2 VA. |
Graphical symbol format | Pictogram, right.Pictogram, left.Pictogram, down. |
Batteries | Li-Ion battery, 3.7 V/ 4 Ah. |
Housing | Aluminium die-cast housing. |
Housing colour | Grey. |
Mounting | Wall surface mounting. Ceiling surface mounting. |
Literature
Atlantic LED CG-Line
