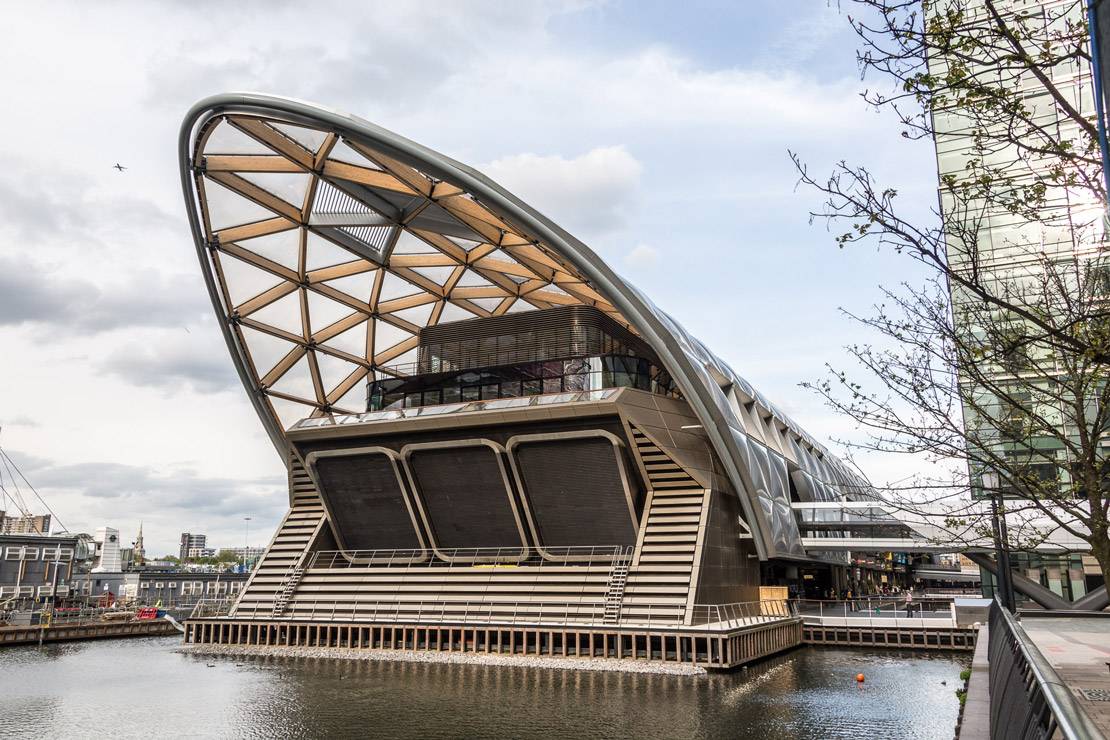

Crossrail Place

OVERVIEW

Radmat Building Products has supplied the waterproofing roofing system for the Crossrail Place shopping development and roof garden in Canary Wharf. The system provides high performance waterproofing and thermal insulation – guaranteed for the lifetime of the structure – and has enabled the construction of an extensively planted living roof.


• The 310m long roof arches 30m over the park and opens to allow natural irrigation

• Highly insulating roofing materials help create a microclimate for the gardens


Radmat Approved Contractor Prater delivered a 9,300m² roofing solution using PermaQuik PQ6100 Hot Melt Monolithic Waterproofing MembraneEshaFlex 370 WS Root Barrier and ProTherm insulation.


Construction access to the complex inverted timber roof was challenging, so Radmat’s products were chosen for their quick and flexible application and fast-sealing properties.

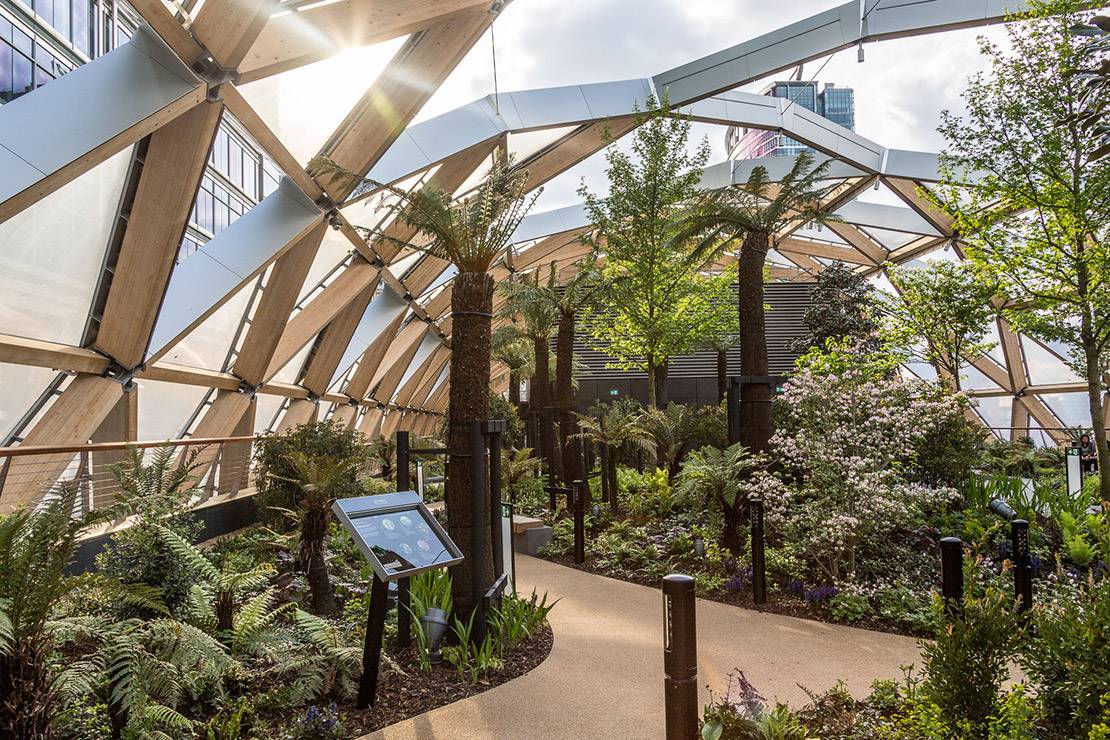

PermaQuik is widely used beneath green roof installations where long-term weather tightness is a necessity, and it was chosen to support the extensive and densely planted gardens, which are the main feature of the Crossrail Place roof terrace.


The PermaQuik membrane was followed by EshaFlex 370 WS Root Barrier, a reinforced bitumen membrane that is torch applied to the base sheet. It was selected because of its thermal efficiency and suitability for use with living roof systems. Partnered with ProTherm’s excellent insulation, the complex timber roof now boasts a waterproof system that is BBA Certified to last the lifetime of the building.

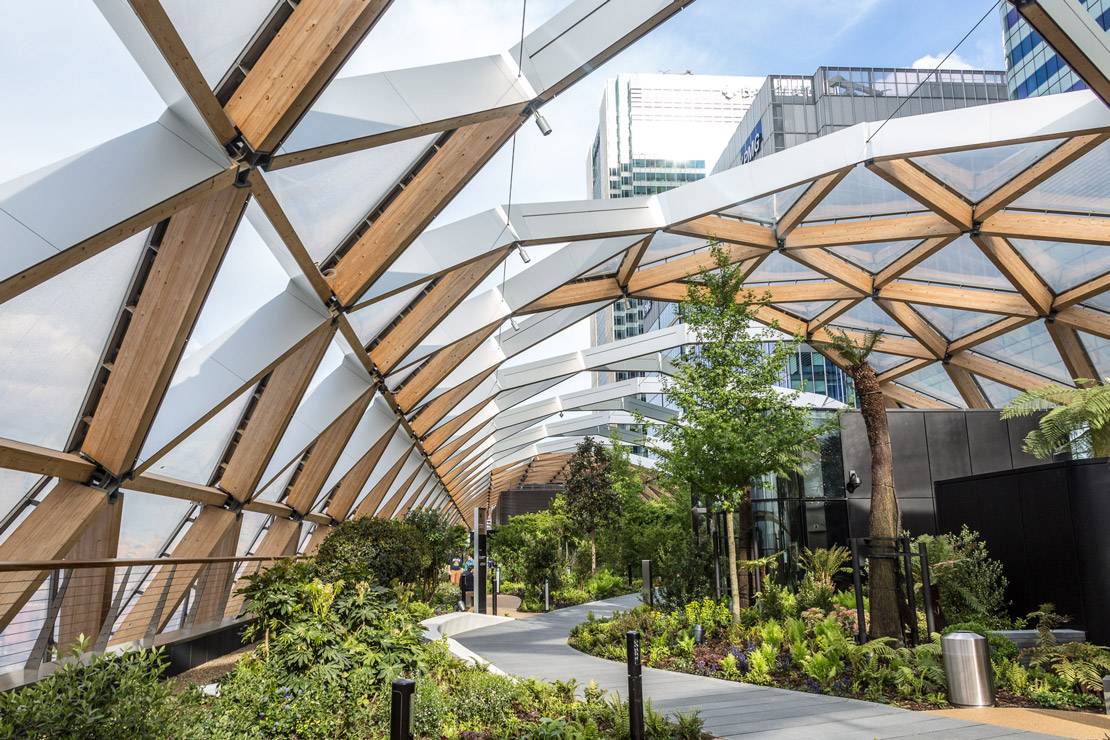

The wooden structure evokes the ships that once sailed into West India Dock and provides a warm, natural counterpoint to the steel and glass towers of Canary Wharf.


And with Radmat’s high performance products and lifetime guarantee, the green roof terrace at Crossrail Place will be a living oasis in the heart of London’s financial district for years to come.

Products featured in this case study

View all products (112)
PermaQuik Standard Protection Sheet XL

PermaQuik Standard Protection Sheet XL

PermaQuik PQ6100 Inverted Roof System

PermaQuik PQ6100 Inverted Roof System

PermaQuik PQ6100

PermaQuik PQ6100

More inspiration from Radmat Building Products Ltd

View inspiration
Bloomberg European HQ

Bloomberg European HQ

Olympic Village, Stratford

Olympic Village, Stratford

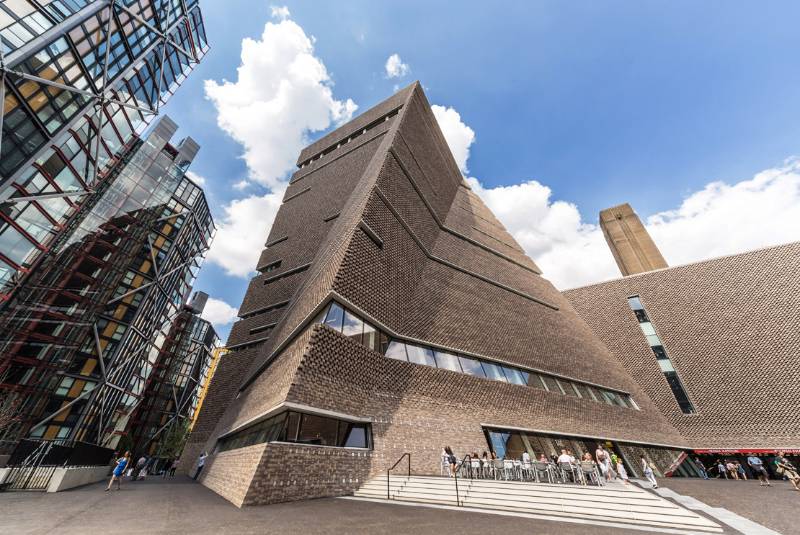

Tate Modern Extension

Tate Modern Extension

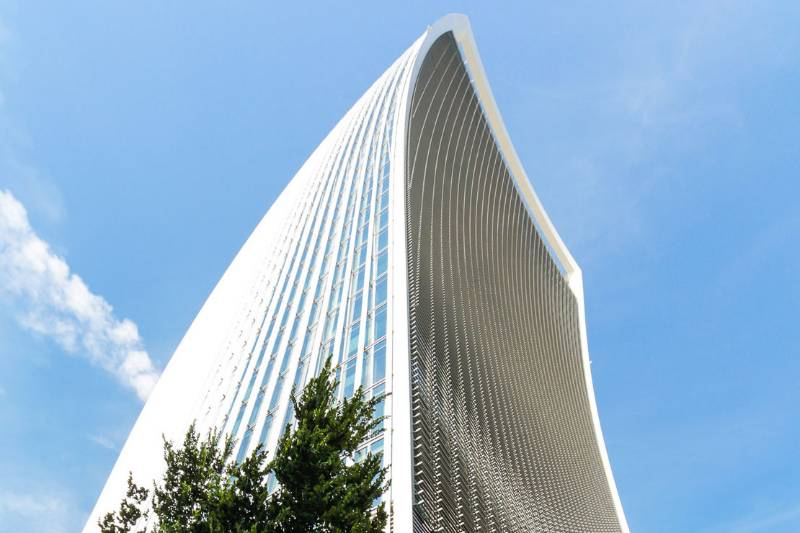

The Walkie Talkie, Fenchurch Street

The Walkie Talkie, Fenchurch Street

More inspiration from Reinforced bitumen roofing sheets

View inspiration
Westfield Shopping Centre

Westfield Shopping Centre

Cambridge Mosque

Cambridge Mosque

Case Study - Proteus Pro-Felt® - City Tower

Case Study - Proteus Pro-Felt® - City Tower

Case Study - Proteus Pro-Felt® - CO-OP Wembley

Case Study - Proteus Pro-Felt® - CO-OP Wembley

More inspiration from Liquid-applied inverted roof covering systems

View inspiration
Library of Birmingham

Library of Birmingham

Morris Blitz Court

Morris Blitz Court

Case Study - Proteus Pro-BW® Plus - Knolly's House

Case Study - Proteus Pro-BW® Plus - Knolly's House

Case Study - Proteus Hot Melt® and Proteus Cold Melt® - Nashmills

Case Study - Proteus Hot Melt® and Proteus Cold Melt® - Nashmills

More inspiration from Hot-applied polymer-modified bitumen waterproof coatings

View inspiration
Westfield Shopping Centre

Westfield Shopping Centre

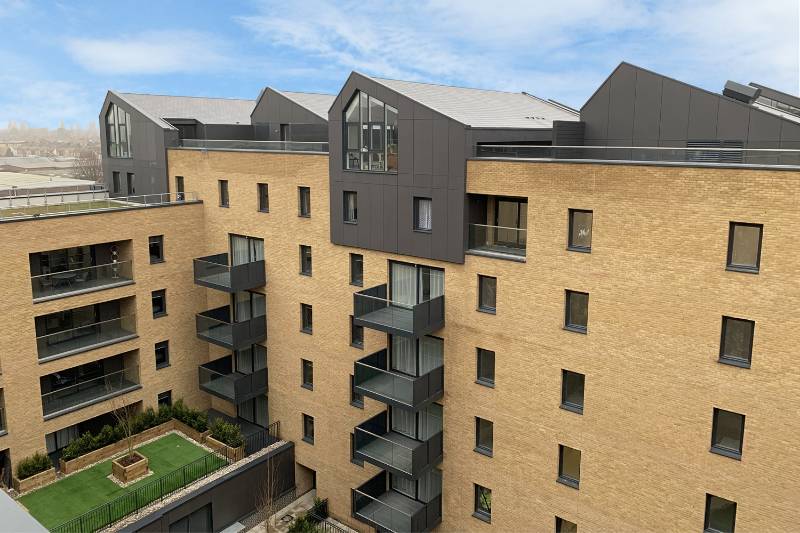

Blackhorse Lane
