Binns Canada PAS68 Automatic Bollards

Impact rated as a single bollard. Zero penetration. Supplied with integral re-bar.

Model: EAG060-30A

Crash Rated to 7.5T (N2) @30mph (48kph)

PAS68:2010 V7500(N2)48/90:0/0

Diameter: 219mm Height: 1000mm above FFL

Finish: Galvanised and powder coated. Optional Stainless Steel Foundation: 1.2m x 1.2m x 1.7m

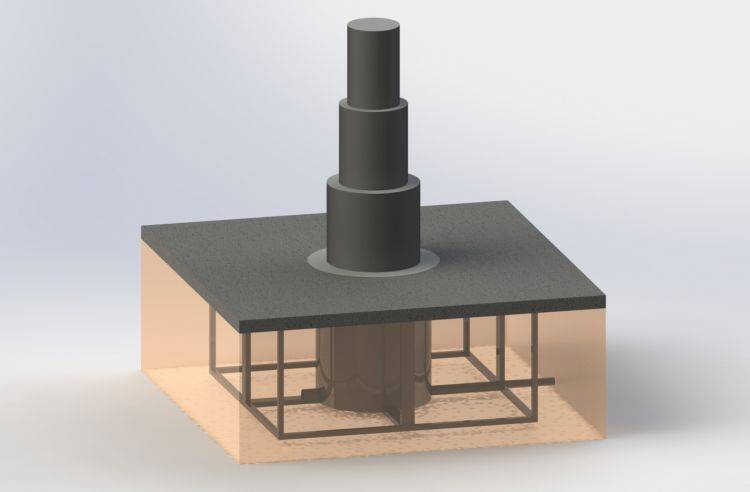

Raise speed: 6-8 seconds standard, 1-2 seconds with optional EFO Power Supply: Three phase Model: EAG060-30AT The world’s shallowest foundation telescopic rising bollard tested with the 7.5T (N2) 48kph (30mph).

This has a foundation depth of just 500mm. Supplied with integral re-bar.

Crash Rated to 7.5T (N2) vehicle @30mph (48kph) PAS68:2010 V7500(N2)48/90:0/0

Impact Rated as a single bollard Height: 900mm above FFL Foundation: 1.7m x 1.7m x 0.5m

Raise speed: 8-10 seconds standard, 2-4 seconds with optional EFO Power Supply: Three phase Model: EAG060-50A A high impact rated bollard tested with the 7.5T (N3) vehicle at 50mph (80kph). Supplied with integral re-bar.

Crash Rated to 7.5T (N3) @50mph (80kph) PAS68:2010 7500(N3)80/90:5.9/7.0 Impact Rated as a single bollard Diameter: 323mm Height: 1200mm above FFL

Finish: Galvanised and powder coated.

Optional Stainless Steel Foundation: 1.2m x 1.2m x 2.0m Raise speed: 6-8 seconds standard, 1-2 seconds with optional EFO Power Supply: Three phase
