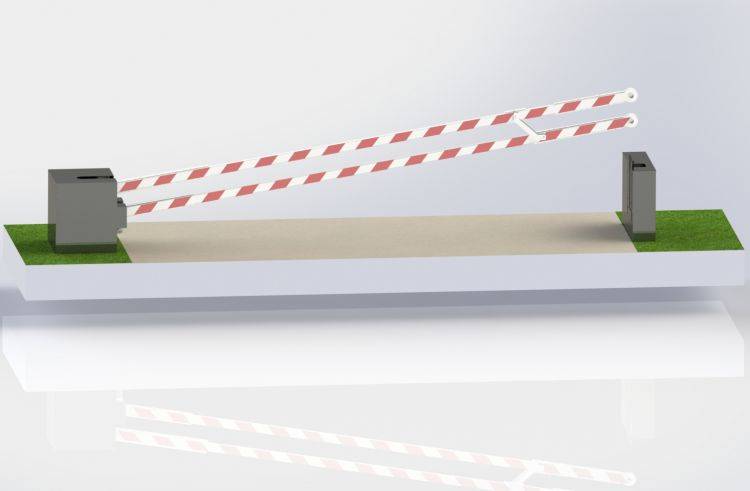

Binns Canada IWA14-1 Arrester Rising Arm Barrier

The Rising Arm Barrier is the latest addition to Binns Canada's portfolio of impact rated products. Tested at a clear opening of 7.1m it meets our secure before impact (SBI) criteria

Model: EAG10040 Operation options Automatic, PLC control and Hydraulic system.

Manual, counterweight attached to beam. Manual, hand pump/drill drive HPU. Key Features Crash Rated to 7.2T (N2A) @40mph (64kph) IWA14-1:2013 V/7200(N2A)/64/90/3.0 Foundation depth: 400mm (comprising 20mm blinding, 330mm concrete, 50mm surface finish)

Span: Tested at 7100mm clear opening ‘Secure Before Impact’ – the product does not rely upon an impact for beam to catch into a locking system – these have proven unreliable and easily overcome and so NPSA have expressed significant preference toward products which are secured before impact
