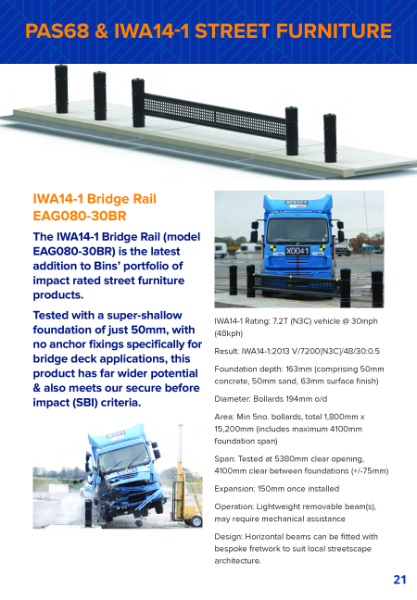

Binns Canada IWA14-1 Bridge Rail

The IWA14-1 Bridge Rail (model EAG080-30BR) is the latest addition to Binns’ portfolio of impact rated street furniture products. Tested with a super-shallow foundation of just 50mm, with no anchor fixings specifically for bridge deck applications, this product has far wider potential and also meets our secure before impact (SBI) criteria.

IWA14-1 Rating: 7.2T (N3C) vehicle @ 30mph (48kph)

Result: IWA14-1:2013 V/7200[N3C]/48/30:0.5

Foundation depth: 163mm (comprising 50mm concrete, 50mm sand, 63mm surface finish)

Diameter: Bollards 194mm o/d

Area: Min 5no. bollards, total 1,800mm x 15,200mm (includes maximum 4100mm foundation span)

Span: Tested at 5380mm clear opening, 4100mm clear between foundations (+/-75mm)

Expansion: 150mm once installed

Operation: Lightweight removable beam(s), may require mechanical assistance

Design: Horizontal beams can be fitted with bespoke fretwork to suit local streetscape architecture.
