ScreentoRoof
Verified by manufacturer over a year ago

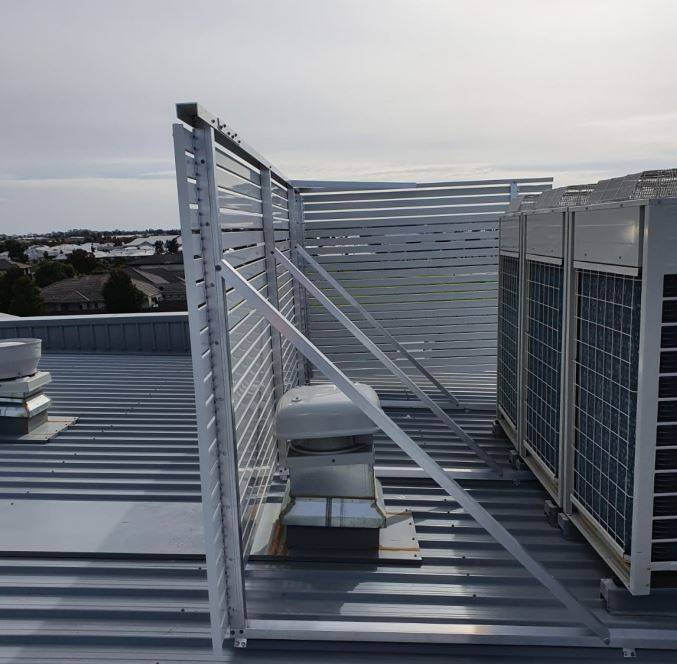

Retrofitting screens to any surface. Including rooftops.
Application
Perfect for a wide range of industrial applications:
- Large condenser platform screening.
- General architectural screening.
- Compressor enclosures and screening.
- Other mechanical plant equipment enclosures.
Description

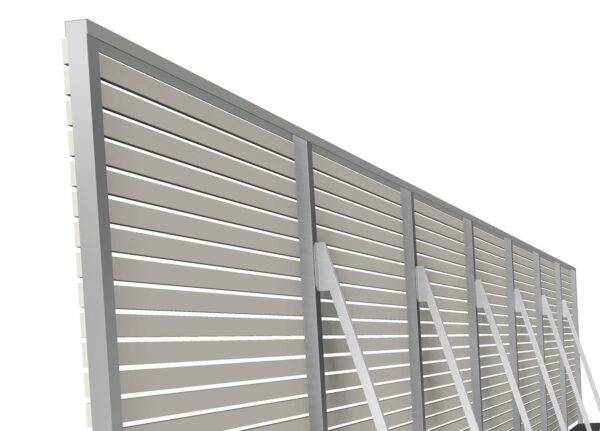

Conceal unsightly plant machinery with the sharp clean lines of the Screen to Roof Wall solutions.
Available in all screening solutions including Classic, Louvre Wall, and Acoustic Wall Solutions.
Features and benefits include:
- Components provide highly durable, long-term stability and performance.
- Provides clean lines and a smooth low profile finish.
- Easy, quick, and economical installation, no cutting or welding required.
- Powder-coating options available.
- Easy assembly and lightweight design reduce the need for additional structural requirements.
- The system remains flexible during and after project design, allowing for changes late into the construction stage.
General information
Color | Other Manufacturer guidanceAvailable in the following Colorbond® colours
|
Finish | Powder-coated |
Material | Aluminium |
Shape | Rectangle |
Size | Manufacturer guidanceStandard heights. LouvreWall airflow can be sized to suit any plant equipment allowing sufficient area around the units for access. |
Length | Bespoke |
Width | Bespoke |
Height | 1200 mm 1600 mm 2000 mm 2400 mm |
Warranty description | 25 year Guidance for specification option: All components are backed by a 25-year warranty. |
Uniclass | |
NATSPEC National Classification System | 0457 External Screens 0191 Sundry Items |
SpecPack | 15782 Air Conditioning - Packaged Units 10240 Grilles and Screens |
Specification data - Panellized louvre screen systems
System performance | Aesthetic performance. |
Louvre panel type | Aluminium louvre panel units. |
Standard | To AS 1170.1, AS 1170.2, AS 1657 and AS 1664.1. |
Colour | Monument. Guidance for specification option: Gun metal grey. Shale grey. Guidance for specification option: Gulf-grey. Surf mist. Guidance for specification option: Off-white. |
Height | 1200 mm. 1600 mm. 2000 mm. 2400 mm. Manufacturer guidanceStandard heights. |
Wind loads | V500 = 45m/s. Guidance for specification option: Region A - Tc 2.5. V500 = 57m/s. Guidance for specification option: Region B - Tc 2.5. V500 = 66m/s. Guidance for specification option: Region C - Tc 2.5. Manufacturer guidanceCon-form Group products have been certified for wind regions A, B, and C. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | Yes. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
