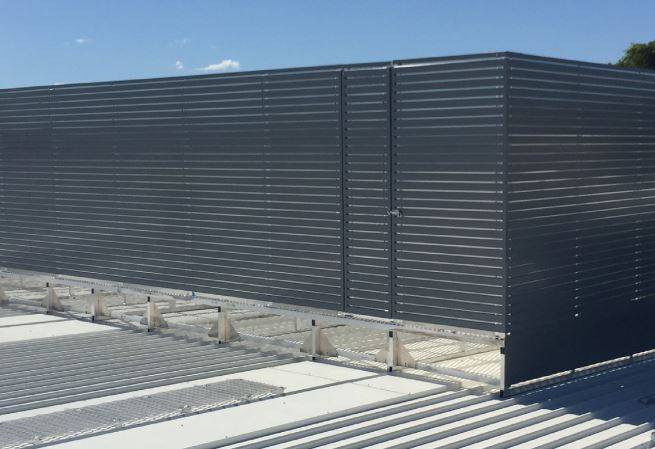

Classic Screen Wall

Verified by manufacturer over a year ago

Con-form Group

Powder-coated roof plant screens.

Jump to:
+61 1300 818 214 Website

Application

Perfect for a wide range of industrial applications including:

  • Large condenser platform screening.
  • General architectural screening.
  • Compressor enclosures and screening.
  • Other mechanical plant equipment enclosures.

Description

Conceal unsightly plant machinery with the sharp clean lines of the Screen Wall. Integrates aesthetically with the surrounding architecture.


Features and benefits include:

  • Aluminium components provide highly durable, long-term stability and performance.
  • Provides clean lines and a smooth low profile finish.
  • Easy, quick and economical installation, no cutting or welding required.
  • Powder coating options available.
  • Easy assembly, the aluminium design reduces the need for additional structural requirements.
  • System remains flexible during and after project design, allowing for changes late into the construction stage.

General information

Color

Other

Manufacturer guidance

Available in the following Colorbond® colours


  1. Surf Mist
  2. Shale Grey
  3. Monument

Finish

Powder-coated

Material

Aluminium

Shape

Rectangle

Size

-

Manufacturer guidance

Standard heights. Also available in custom heights.

Length

Bespoke

Width

Bespoke

Height

1200 mm

1600 mm

2000 mm

2400 mm

Warranty description

25 year

Guidance for specification option:

All components are backed by a 25-year warranty.

Uniclass

Ss_25_50_45_60 Panellized louvre screen systemsPrimary

NATSPEC National Classification System

0457 External Screens

0191 Sundry Items

SpecPack

15782 Air Conditioning - Packaged Units

10240 Grilles and Screens

Specification data - Panellized louvre screen systems

Standard

To AS 1170.1, AS 1170.2, AS 1657 and AS 1664.1.

Colour

Classic colour range.

Guidance for specification option:

Classic cream.

Paperbark.

Pale eucalypt.

Woodland grey.

Deep ocean.

Cottage green.

Manor red.

Contemporary colour range.

Guidance for specification option:

Surfmist.

Evening haze.

Shale grey.

Dune.

Cove.

Windspray.

Gully.

Mangrove.

Wallaby.

Jasper.

Basalt.

Ironstone.

Terrain.

Monument.

Manufacturer guidance

Conceal plant machinery with a range of classic and contemporary colours to match the Colorbond Steel range.

Height

1200 mm.

1600 mm.

2000 mm.

2400 mm.

Manufacturer guidance

Standard heights.

Wind loads

V500 = 45m/s.

Guidance for specification option:

Region A - Tc 2.5.

V500 = 57m/s.

Guidance for specification option:

Region B - Tc 2.5.

V500 = 66m/s.

Guidance for specification option:

 Region C - Tc 2.5.

Manufacturer guidance

Con-form Group products have been certified for wind regions A, B, and C.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

Yes
