LouvreWall Airflow
Verified by manufacturer over a year ago

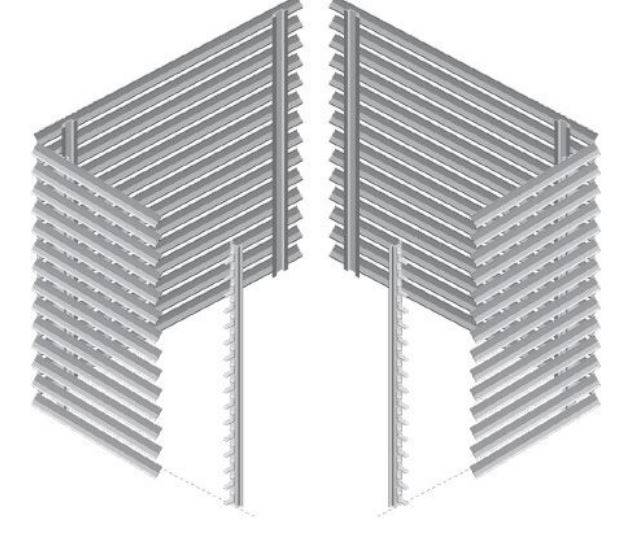

Louvre Screen Barrier for HVAC/Plant platforms. 100% visual barrier, 55% airflow.
Application
Perfect for a wide range of industrial applications:
- Large condenser platform screening.
- General architectural screening.
- Compressor enclosures and screening.
- Other mechanical plant equipment enclosures.
Description
Conceal unsightly plant machinery and maximise airflow to machinery.
Features and benefits include:
- Aesthetic screening with 55% open airflow & sized to suit any plant equipment. Airflow can be increased to any specification.
- Aluminium components providing highly durable, long-term stability and performance.
- Provides clean lines and a smooth low profile finish.
- Easy, quick and economical installation - no cutting or welding required.
- Powder-coated to match any colour scheme.
- Easy assembly, aluminium design reduces the need for additional structural requirements.
- The system remains flexible during and after project design, allowing for changes late into the construction stage.

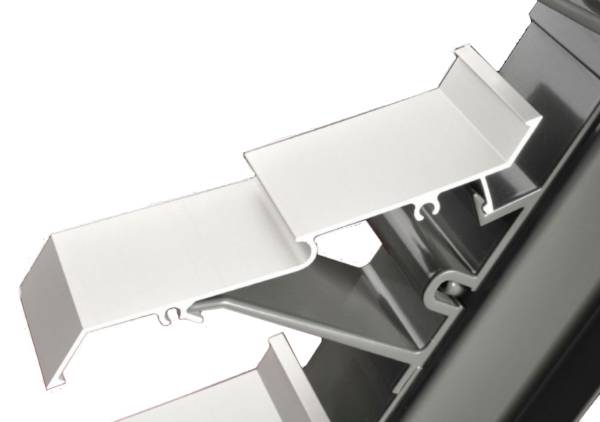

- 100mm blade repeats.
General information
Color | Other Manufacturer guidanceAvailable in the following Colorbond® colours
|
Finish | Powder-coated |
Material | Aluminium |
Shape | Square Rectangle Other |
Size | Manufacturer guidanceStandard heights to standard length. |
Length | Bespoke |
Width | Bespoke |
Height | 1200 mm 1600 mm 2000 mm 2400 mm |
Warranty description | 25 year Guidance for specification option: All components are backed by a 25-year warranty. |
Uniclass | |
NATSPEC National Classification System | 0457 External Screens 0191 Sundry Items |
SpecPack | 15782 Air Conditioning - Packaged Units 10240 Grilles and Screens |
Specification data - Panellized louvre screen systems
System performance | Aesthetic performance. |
Louvre panel type | Aluminium louvre panel units. |
Standard | To AS 1170.1, AS 1170.2, AS 1657 and AS 1664.1. |
Colour | Classic colour range. Guidance for specification option: Classic cream. Paperbark. Pale eucalypt. Woodland grey. Deep ocean. Cottage green. Manor red. Contemporary colour range. Guidance for specification option: Surfmist. Evening haze. Shale grey. Dune. Cove. Windspray. Gully. Mangrove. Wallaby. Jasper. Basalt. Ironstone. Terrain. Monument. Manufacturer guidanceConceal plant machinery with a range of classic and contemporary colours to match the Colorbond Steel range. |
Height | 1200 mm. 1600 mm. 2000 mm. 2400 mm. Manufacturer guidanceStandard heights. |
Wind loads | V500 = 45m/s. Guidance for specification option: Region A - Tc 2.5. V500 = 57m/s. Guidance for specification option: Region B - Tc 2.5. V500 = 66m/s. Guidance for specification option: Region C - Tc 2.5. Manufacturer guidanceCon-form Group products have been certified for wind regions A, B, and C. |
Weight | 7 kg/m². |
Sustainability data
Contains Red List materials | No |
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100 |
Literature
LouvreWall airflow Product Data Sheet
