Acoustic+

Verified by manufacturer over a year ago

Con-form Group

Exterior acoustic wall system with ultra noise reduction by absorption and reflection.

Jump to:
+61 1300 818 214 Website

Application

Perfect for a wide range of noise-reduction applications:

  • Large-format stores – Shopping Centres - Supermarkets.
  • Large condenser screening.
  • General architectural screening.
  • Compressor enclosures and screening.
  • Other mechanical plant equipment enclosures.

Description

An ultra-high-performance noise wall system developed over several years by Acoustic Engineers and Industry Professionals makes it the best-in-class solution in the attenuation of air-borne noise.


Acoustic+ is Australia’s leading external acoustic wall system in performance, design and value.

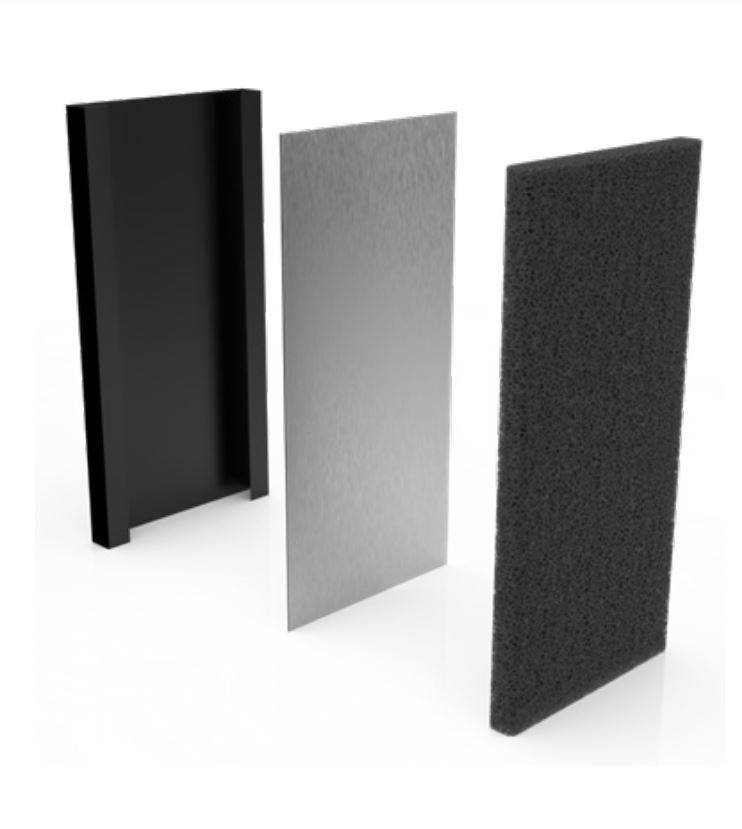

Con-form Group’s most effective system at reducing sound energy due to its three phase operation (absorbing – reflecting – absorbing).


Features and benefits include:

  • Con-form Group’s most effective system at reducing sound energy due to its three-phase operation (absorbing - reflecting - absorbing).
  • Non-invasive - perfect to retrofit.
  • Can be fitted directly to existing metal deck or concrete roofs.
  • Structural components provide highly durable, long-term stability and performance.
  • Built to withstand all weather conditions.
  • Absorptive barrier is moisture resistant, UV resistant, and fire retardant.
  • Easy assembly, the design reduces the need for additional structural requirements.
  • System remains flexible during and after project design, allowing for changes late into the construction stage.


Acoustic performance

Available in five surface density options to suite site specific requirements:

  • Option A = 7kg/m2
  • Option B = 13kg/m2
  • Option C = 19kg/m2
  • Option D = 25kg/m2
  • Option E = 31kg/m2


All options have a noise absorptive surface as a standard.


NRC = 0.75


General information

Color

Grey

Guidance for specification option:

Shale Grey

White

Guidance for specification option:

Surf Mist

Other

Guidance for specification option:

Monument

Manufacturer guidance

Available in three popular Colorbond colour choices.


  1. Surf Mist
  2. Shale Grey
  3. Monument

Finish

Powder-coated

Material

High density polyethylene (HDPE)

Shape

Square

Rectangle

Other

Size

-

Manufacturer guidance

Standard heights to standard length.

Length

Bespoke

Width

Bespoke

Height

1200 mm

1600 mm

2000 mm

2400 mm

Warranty description

25 year

Guidance for specification option:

All components are backed by a 25-year warranty.

Uniclass

Ss_25_50_45_60 Panellized louvre screen systemsPrimary

NATSPEC National Classification System

0457 External Screens

0191 Sundry Items

SpecPack

15782 Air Conditioning - Packaged Units

10240 Grilles and Screens

Specification data - Panellized louvre screen systems

System performance

Acoustic performance.

Fire performance.

Environmental performance.

Standard

To AS 1170.1, AS 1170.2, AS 1657 and AS 1664.1.

Fire performance

To AS 1530.3.

Guidance for specification option:

“Early Fire Hazard Properties of Materials”, PSB exhibit the following

characteristics:

Ignitability Index: 0

Spread of Flame Index: 0

Heat Evolved: 0

Smoke Developed Index: 0 – 3

Acoustic performance

Available in four surface density options to suit your site-specific needs.

Guidance for specification option:

Option A = 7 kg/m².

Option B = 13 kg/m².

Option C = 19 kg/m².

Option D = 25 kg/m².

Option E = 31 kg/m².

*All options have a noise absorptive surface as a standard.

Colour

Sufist mist.

Guidance for specification option:

Off-white.

Shale grey.

Guidance for specification option:

Gull-grey.

Monument.

Guidance for specification option:

Gun metal grey.

Height

1200 mm.

1600 mm.

2000 mm.

2400 mm.

Manufacturer guidance

Standard heights.

Wind loads

V500 = 45m/s.

Guidance for specification option:

Region A - Tc 2.5.

V500 = 57m/s.

Guidance for specification option:

Region B - Tc 2.5.

V500 = 66m/s.

Guidance for specification option:

 Region C - Tc 2.5.

Manufacturer guidance

Wind loads in accordance with AS/NZS 1170.2, and based on the following parameters: VR,500 = as listed below; and Ms = 1.00, Mt = 1.00, Md, =1.00, and Mz,cat.


Con-form Group products have been certified for wind regions A, B, and C.

Sustainability data

Contains Red List materials

No

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %

Literature

Acoustic+ Technical Data Sheet

Acoustic+ Technical Data Sheet

Similar products from Con-form Group

Classic Screen Wall

Classic Screen Wall

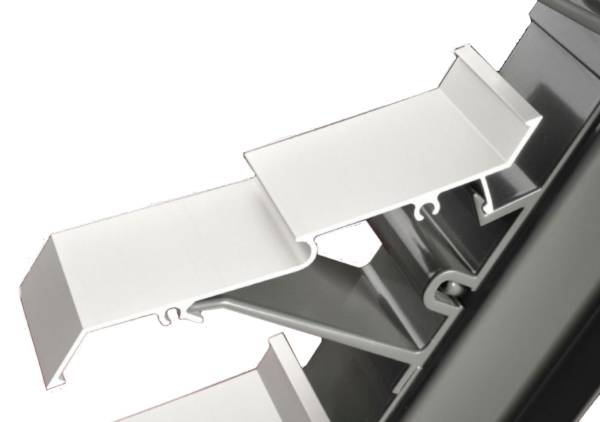

LouvreWall Airflow

LouvreWall Airflow

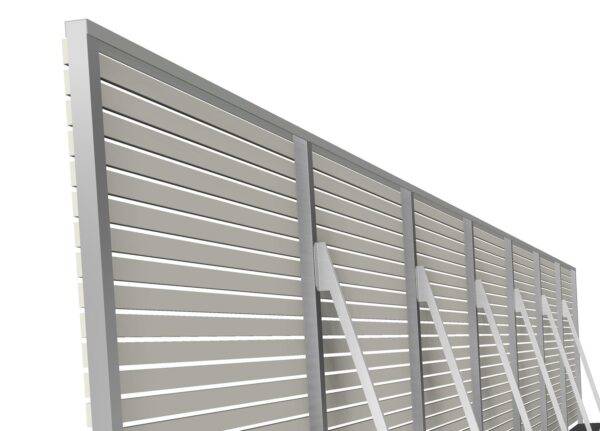

ScreentoRoof
