Metashield V
Verified by manufacturer over a year ago

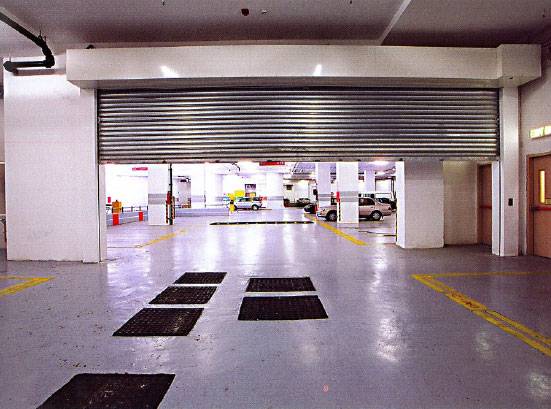

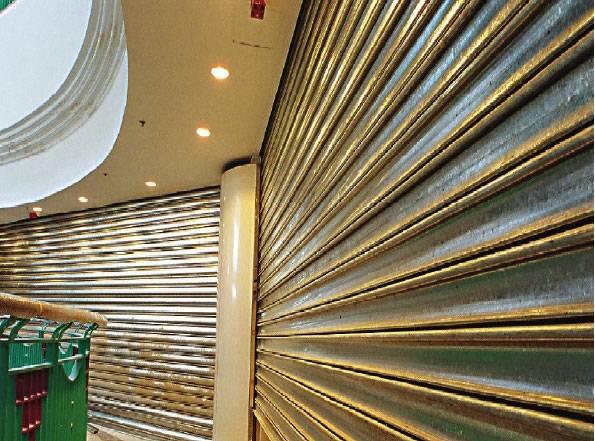

Long span fire shutter.
Application
Suitable for extra large openings in external walls and fire compartment walls, non-required stairways, proscenium walls and as security separation between areas.
Description
Metashield V is a long span fire shutter. It is the only system on the market that does not require a head box to maintain the system's fire rating. Some of its features include:
- Fire tested in accordance with AS 1530.4.
- High quality fittings.
- Allows continuous spans of up to 18 m.
- Available in various finishes.
General information
Finish | Galvanized Metallic |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
SpecPack | 08330 Roller Shutter Doors |
NATSPEC National Classification System | 0454 Overhead Doors 1002 Fire Services Design and Install |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - Fire-resisting roller shutters
Standard | To AS 1905.2. |
Opening sizes | Manufacturer guidanceAvailable in sizes up to 4 m W x 4 m H. Contact local manufacturer for specific dimension needs. |
Type | Electric operation. |
Fire resistance level | |
Standard | To AS 1530.4. |
Value | -/120/- (minimum).-/240/- (application dependent). |
Frame and guides | |
Finish | |
Coating | Natural.Painted. |
Texture | Gloss.Matt.Satin. |
Shutter curtain | |
Profile | Flat. |
Height | Manufacturer guidanceAvailable in heights up to 3.8 m. Contact local manufacturer for specific dimension needs. |
Finish | |
Coating | Natural.Painted. |
Texture | Gloss.Matt.Satin. |
Durability | Five cycles per hour (maximum). |
Closing | 150 mm/s (nominal). |
Shutter box | 600 mm H x 600 mm D. Manufacturer guidanceRefers to head box dimensions. |
End plates | 525 mm H x 510 mm D. |
Side guides | 75 mm W x 30 mm D. |
Slats | 75 mm W. Guidance for specification option: 0.8 mm profile with metal clips. Minimum setback of 20 mm from edge. |
Controls | Manufacturer guidanceRequires 240 V 10 A power supply and an alarm signal through a normally closed dry contact. 3 phase option is available on request. |
Integral accessories | Alarm signal. Guidance for specification option: Should be in the form of a normally closed dry contact. A localised smoke or heat detector may also be used. |
Box weight | 75 kg/m of system width (for curtain heights up to 3 m). 90 kg/m of system width (for curtain heights up to 4 m). |
MaximumWorkingPressure | 1000 Pa (fully closed curtain). Manufacturer guidanceRefers to maximum pressure resistance. Higher pressure resistance may be available depending on application. Contact local manufacturer for details. |
Installation | To be installed by Smoke Control approved installer network. |
Sustainability data
Country of product manufacture | Australia |
