Metashield L
Verified by manufacturer over a year ago

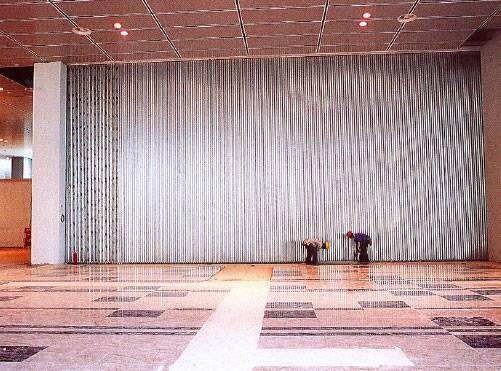

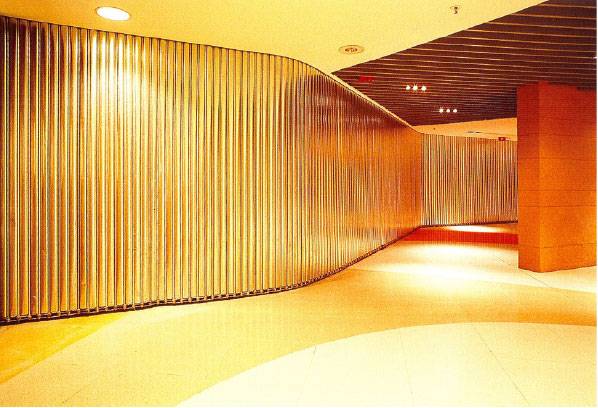

Long span lateral fire shutter.
Application
Suitable for large to extra large openings. Ideal for external walls and fire compartment walls and as security separation between areas.
Description
Metashield L is a long span lateral fire shutter that can resist pressures in excess of 100 Pa (fully deployed). Some of its features include:
- Fire tested in accordance with AS 1530.4.
- High quality fittings.
- Operable sideways.
- Ideal for large to extra large openings.
- Available in various finishes.
General information
Finish | Galvanized Painted |
Material | Stainless steel |
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
SpecPack | 08330 Roller Shutter Doors |
NATSPEC National Classification System | 0454 Overhead Doors 1002 Fire Services Design and Install |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - Fire-resisting roller shutters
Standard | To AS 1905.2. |
Opening sizes | Manufacturer guidanceAvailable in sizes up to 18 m W x 3.8 m H. Contact local manufacturer for specific dimension needs. |
Type | Electric operation. |
Fire resistance level | |
Standard | To AS 1530.4. |
Value | -/120/- (minimum).-/240/- (application dependent). |
Frame and guides | |
Finish | |
Coating | Natural.Painted. |
Texture | Gloss.Matt.Satin. |
Shutter curtain | |
Profile | Flat. |
Height | Manufacturer guidanceAvailable in heights up to 3.8 m. Contact local manufacturer for specific dimension needs. |
Finish | |
Coating | Natural.Painted. |
Texture | Gloss.Matt.Satin. |
Durability | Three cycles per hour (maximum). |
Closing | 100 mm/s (nominal). |
Shutter box | 850 mm H x 700 mm D (for system widths up to 6 m). 1100 mm H x 850 mm D (for system widths up to 12 m). 1350 mm H x 850 mm D (for system widths up to 18 m). Manufacturer guidanceRefers to shutter box dimensions. |
Top track | 150 mm W x 55 mm H welded steel section. Guidance for specification option: Total hanger width is 170 mm (nominal). |
Bottom guide track | 120 mm W x 90m mm H metal track. Manufacturer guidanceTo be rebated into fire rated structure or clad with fire rated board. |
Slats | 75 mm W. Guidance for specification option: 0.7 – 1.2 mm profile with metal clips. |
Controls | Manufacturer guidanceRequires 415 V 3 phase, 16 A power supply and an alarm signal through a normally closed dry contact. 240 V single phase is available on request. |
Integral accessories | Alarm signal. Guidance for specification option: Should be in the form of a normally closed dry contact. A localised smoke or heat detector may also be used. |
Box weight | Manufacturer guidanceRefers to system weight. Due to variations in size and pressure, the system weight is project specific. Contact local manufacturer for details. |
MaximumWorkingPressure | 50 Pa (fully closed curtain). Manufacturer guidanceRefers to maximum pressure resistance. Higher pressure resistance may be available depending on application. Contact local manufacturer for details. |
Installation | To be installed by Smoke Control approved installer network. |
Sustainability data
Country of product manufacture | Australia |
