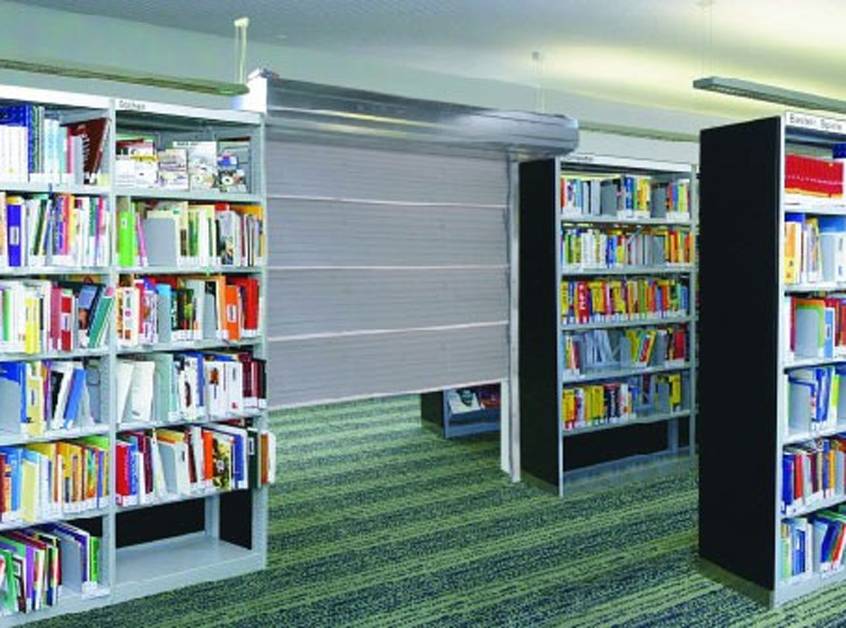

Fibershield -/60/60
Verified by manufacturer over a year ago
Combined fire shutter and operable wall.
Application
Suitable for small to medium openings in existing and new buildings, such as:
- Museums and art galleries.
- Hospitals.
- Servery openings.
- Escape paths and fire compartmentation between tenancies.
- Replacement of fire rated walls.
Description
Fibershield -/60/60 is a combined fire shutter and operable wall. It is a fire protection curtain comprised of alternating layers of insulating and cooling material, allowing it to provide full fire integrity and insulation. Some of its features include:
- Full fire integrity and insulation for 60 minutes without the need for sprinklers.
- Fire tested in accordance with AS 1530.4.
- Sparing use of textiles.
- Reduced weight compared to conventional models.
- Can be considered as a deemed-to-satisfy moveable fire-rated wall.
General information
Shape | Rectangle |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | One year |
Uniclass | |
SpecPack | 08330 Roller Shutter Doors 10240 Grilles and Screens |
NATSPEC National Classification System | 0454 Overhead Doors 1002 Fire Services Design and Install |
SpeedSpec | 08330 Roller Shutter Doors |
Specification data - Vertical active fire curtain barriers
Performance | |
Fire resistance level | |
Standard | To AS 1530.4. |
Value | -/120/120 (minimum). |
Smoke leakage | |
Standard | To EN 12101-1. |
Value | ≤ 25 m³/h.Manufacturer guidanceRefers to fabric permeability only. |
Fire hazard properties | |
Standard | To AS/NZS 1530.3 and AS 3837. |
Group number | 1.Manufacturer guidanceTested in accordance with AS 3837. |
Spread of flame index | Manufacturer guidanceTested in accordance with AS 1530.3. |
Durability | 2000 open-close cycles. |
Closing time | 90 mm/s (nominal). |
Time delay for deployment | Manufacturer guidanceUpon receipt of alarm. |
Time delay for rewind | Manufacturer guidanceUpon reset of the Fire Indicator Panel. |
Battery back-up | Manufacturer guidanceProvided by the control box. |
Curtain | |
Size and shape (maximum) | Manufacturer guidanceAvailable in sizes up to 4 m W x 4 m H. Contact local manufacturer for specific dimension needs. |
Colour | Silver. |
Head box | |
Size | 350 mm H x 382 mm D (for curtain heights up to 3 m).460 mm H x 430 mm D (for curtain heights up to 4 m).Manufacturer guidanceWidth varies depending on specified curtain size. Contact local manufacturer for specific dimension needs. |
Side guides | |
Size | 200 mm W x 81.5 mm D.Guidance for specification option: Head box extends 47 mm past the edge of side guides. |
Controls | Control box.Guidance for specification option: Requires one 240 V, 10 A power supply and an alarm signal through a normally closed dry contact. |
Integral accessories | Alarm signal.Guidance for specification option: Should be in the form of a normally closed dry contact. A localised smoke or heat detector may also be used. Battery back-up.Guidance for specification option: Provided by the control box as standard. |
Fire barrier | To AS 1905.2. Manufacturer guidanceRefers to Fire Shutter performance data. |
Box weight | 100 kg/m of system width (for curtain heights up to 3 m). 137.5 kg/m of system width (for curtain heights up to 4 m). Manufacturer guidanceRefers to system weight. |
MaximumWorkingPressure | 50 Pa (fully closed curtain). Manufacturer guidanceRefers to maximum pressure resistance. |
Optional features | Rewind switches. Guidance for specification option: Rewind switches are optionally available for direct connection to the control box. Curtain retraction will be based on a set timer. Curtain applied signage. |
Installation | To be installed by Smoke Control approved installer network. |
Back support | Masonry or concrete wall only (60/60/60). Guidance for specification option: Minimum thickness of 150 mm. |
Sustainability data
Country of product manufacture | Australia |
