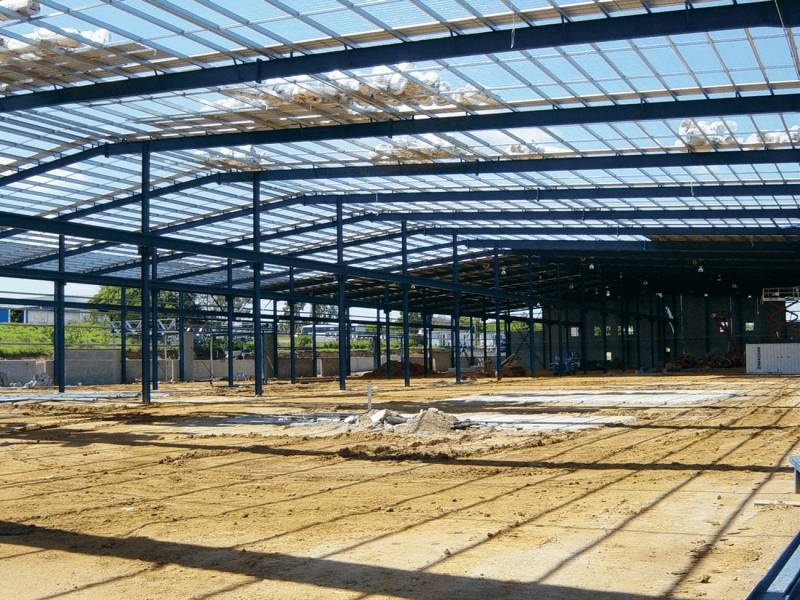

Name: Megaspan Purlins and Girts
Brand: Metroll
SKU: wu4vYFNVtghTe5ewHMMprx

Shape

Dependant on profile configuration.

Material

Steel.

Size

Manufacturer guidance

Dimensions vary per sectional profile. Depths range from 150 mm to 400 mm. Lengths are cut to order.

Uniclass

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary

SpecPack

05400 Cold-Formed Metal Framing

NATSPEC National Classification System

0342 Light Steel Framing

SpeedSpec

05400 Cold Formed Metal Framing

Material

Thickness

1.2 mm.

1.5 mm.

1.9 mm.

2.4 mm.

3.0 mm.

Corrosion protection

Standard

To AS 1397.

Class

Z350.

Manufacturer guidance

For more severe environments, Z450 will be required. Heavier coated products are subject to minimum orders and lead times.

Coating thickness

350 g/m².

Manufacturer guidance

For more severe environments, 450 g/m² (Z450) will be required. Heavier coated products are subject to minimum orders and lead times.

Steel grade

G450.

G500.

G550.

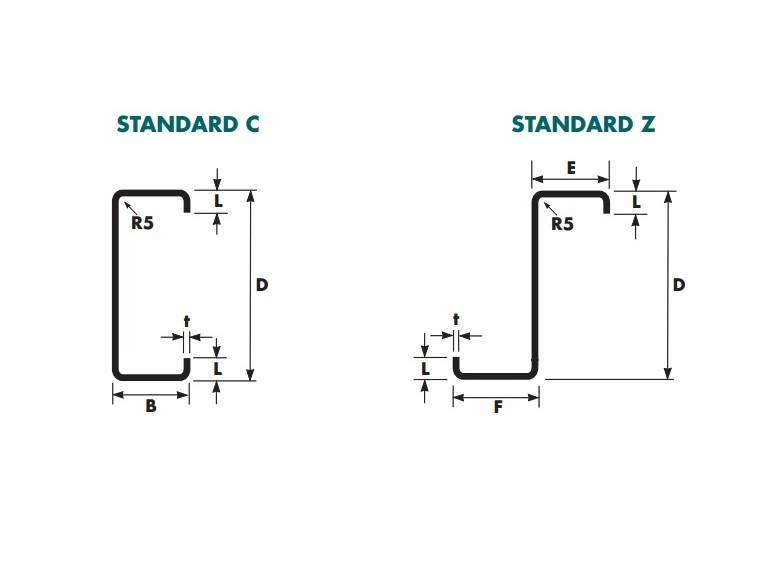

Configuration

Standard C-section.

Downturn Lip C-section.

Nestable C-section (box configuration).

Standard Z-section.

Lappable Z-section.

Section

150 12.

150 15.

150 19.

150 24.

200 12.

Guidance for specification option:

Minimum order quantity and lead time may apply.

Manufacturer guidance

Applicable to both C and Z sections. The first 3 digits indicate the depth of the section (i.e. 150 is 150 mm deep). The last two digits indicate the material thickness (i.e. 12 is 1.2 mm).

Tolerances of ±5 mm in overall length, ±1 mm in flange width, ±1 mm in depth and ±1.5 mm in hole centres.

MassDensity

2.78 kg/m (C or Z 150 12.)

3.47 kg/m (C or Z 150 15.)

4.40 kg/m (C or Z 150 19.)

5.56 kg/m (C or Z 150 24.)

3.49 kg/m (C or Z 200 12.)

Hole cutouts

Manufacturer guidance

Preferred method of dimensioning is hole centre to hole centre rather than referenced from one end. Overall purlin length is also required for dimensional checking.

Standard hole centres include:

18 x 22 mm holes, 40 mm apart for 100 mm purlin.
18 x 22 mm holes, 60 mm apart for 150 mm purlin (in Victoria, standard is 18 x 22 mm holes, 70 mm apart).
18 x 22 mm holes, 110 mm apart for 200 mm purlin.
18 x 22 mm holes, 160 mm apart for 250 mm purlin.
22 mm round holes, 210 mm apart for 300 mm purlin.
22 mm round holes, 260 mm apart for 350 mm purlin.
22 mm round holes, 310 mm apart for 400 mm purlin.

Alternative hole sizes, shapes and centres are available upon request.

Megaspan Purlins and Girts

Application

Description

General information

Shape

Material

Size

Manufacturer guidance

Uniclass

SpecPack

NATSPEC National Classification System

SpeedSpec

Specification data - Cold-formed galvanized steel sections

Material

Thickness

1.2 mm.

1.5 mm.

1.9 mm.

2.4 mm.

3.0 mm.

Corrosion protection

Standard

To AS 1397.

Class

Z350.

Manufacturer guidance

Coating thickness

350 g/m².

Manufacturer guidance

Steel grade

Configuration

Section

Manufacturer guidance

MassDensity

Hole cutouts

Manufacturer guidance

Sustainability data

Country of product manufacture

Literature

Material	-
Thickness	1.2 mm. 1.5 mm. 1.9 mm. 2.4 mm. 3.0 mm.
Corrosion protection	-
Standard	To AS 1397.
Class	Z350. Manufacturer guidance For more severe environments, Z450 will be required. Heavier coated products are subject to minimum orders and lead times.
Coating thickness	350 g/m². Manufacturer guidance For more severe environments, 450 g/m² (Z450) will be required. Heavier coated products are subject to minimum orders and lead times.

Steel grade	G450. G500. G550.
Configuration	Standard C-section. Downturn Lip C-section. Nestable C-section (box configuration). Standard Z-section. Lappable Z-section. Fascia purlin. Guidance for specification option: Subject to availability. Show more
Section	150 12. 150 15. 150 19. 150 24. 200 12. Guidance for specification option: Minimum order quantity and lead time may apply. 200 15. 200 19. 200 24. 250 15. Guidance for specification option: Minimum order quantity and lead time may apply. 250 19. 250 24. 300 19. Guidance for specification option: Minimum order quantity and lead time may apply. 300 24. 300 30. 350 19. Guidance for specification option: Minimum order quantity and lead time may apply. 350 24. Guidance for specification option: Minimum order quantity and lead time may apply. 350 30. 400 24. Guidance for specification option: Minimum order quantity and lead time may apply. 400 30. Guidance for specification option: Minimum order quantity and lead time may apply. 400 30WF. Guidance for specification option: Minimum order quantity and lead time may apply. 230 Plain Fascia Purlin. Guidance for specification option: Subject to availability. 230 Fluted Fascia Purlin. Guidance for specification option: Subject to availability. 260 Plain Fascia Purlin. Guidance for specification option: Subject to availability. 260 Fluted Fascia Purlin. Guidance for specification option: Subject to availability. Show more Manufacturer guidance Applicable to both C and Z sections. The first 3 digits indicate the depth of the section (i.e. 150 is 150 mm deep). The last two digits indicate the material thickness (i.e. 12 is 1.2 mm). Tolerances of ±5 mm in overall length, ±1 mm in flange width, ±1 mm in depth and ±1.5 mm in hole centres.
MassDensity	2.78 kg/m (C or Z 150 12.) 3.47 kg/m (C or Z 150 15.) 4.40 kg/m (C or Z 150 19.) 5.56 kg/m (C or Z 150 24.) 3.49 kg/m (C or Z 200 12.) 4.36 kg/m (C or Z 200 15.) 5.59 kg/m (C or Z 200 19.) 7.07 kg/m (C or Z 200 24.) 5.00 kg/m (C or Z 250 15.) 6.34 kg/m (C or Z 250 19.) 8.01 kg/m (C or Z 250 24.) 7.83 kg/m (C or Z 300 19.) 9.89 kg/m (C or Z 300 24.) 12.36 kg/m (C or Z 300 30.) 9.47 kg/m (C or Z 350 19.) 11.96 kg/m (C or Z 350 24.) 14.95 kg/m (C or Z 350 30.) 11.96 kg/m (C or Z 400 24.) 14.95 kg/m (C or Z 400 30.) 16.13 kg/m (C or Z 400 30WF.) Show more
Hole cutouts	- Manufacturer guidance Preferred method of dimensioning is hole centre to hole centre rather than referenced from one end. Overall purlin length is also required for dimensional checking. Standard hole centres include: 18 x 22 mm holes, 40 mm apart for 100 mm purlin. 18 x 22 mm holes, 60 mm apart for 150 mm purlin (in Victoria, standard is 18 x 22 mm holes, 70 mm apart). 18 x 22 mm holes, 110 mm apart for 200 mm purlin. 18 x 22 mm holes, 160 mm apart for 250 mm purlin. 22 mm round holes, 210 mm apart for 300 mm purlin. 22 mm round holes, 260 mm apart for 350 mm purlin. 22 mm round holes, 310 mm apart for 400 mm purlin. Alternative hole sizes, shapes and centres are available upon request.
