Intermediate Bridging

Verified by manufacturer over a year ago

Metroll

Basic bridging between purlins and an end component such as a clamp end.

Jump to:
+61 8 9365 5444 Website

Application

Suitable for installation between purlins.

Description

Intermediate Bridging is the basic bridging between purlins and an end component such as a clamp end. It is one of the typical Met-lock roof bridging assemblies with features including:

  • Fast installation.
  • Robust, straight and true.
  • Hook centres to match holes in purlins and girts.

General information

Material

Steel.

Uniclass

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary

SpecPack

05400 Cold-Formed Metal Framing

NATSPEC National Classification System

0342 Light Steel Framing

SpeedSpec

05400 Cold Formed Metal Framing

Specification data - Cold-formed galvanized steel sections

Finish

-

Colour

Standard aluminium colour.

Component type

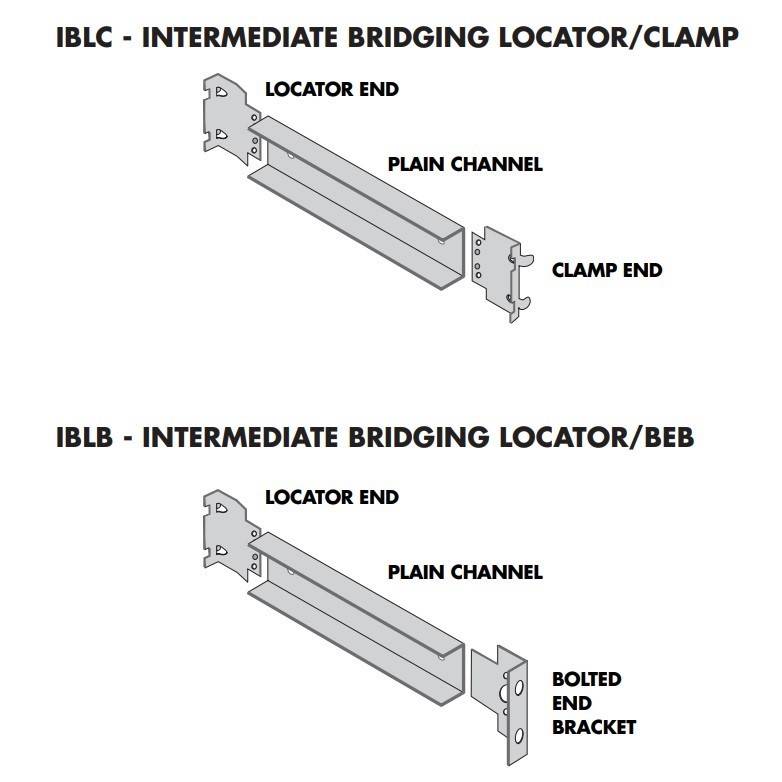

Intermediate bridging locator to clamp (IBLC).

Intermediate bridging locator to BEB (IBLB).

Intermediate bridging clamp to clamp (IBCC).

Intermediate bridging clamp to BEB (IBCB).

Intermediate bridging BEB to BEB (IBBB).

Length (effective)

-

Manufacturer guidance

Refers to bridging length. Should be stated as centre to centre dimensions.

Primary

-

Manufacturer guidance

Refers to the size of one of the bracings to be used, as specified on bridging profile.


  • Locator End: available in widths of 65 mm (size 100), 110 mm (size 150; set as 90 mm in Victoria), 140 mm (size 200) and 190 mm (size 250).
  • Clamp End: available in widths of 65 mm (size 100), 110 mm (size 150; set as 85 mm in Victoria), 140 mm (size 200) and 190 mm (size 250).
  • Bolted End Bracket (BEB).

Secondary

-

Manufacturer guidance

Refers to the size of the other bracing to be used, as specified on bridging profile.


  • Locator End: available in widths of 65 mm (size 100), 110 mm (size 150; set as 90 mm in Victoria), 140 mm (size 200) and 190 mm (size 250).
  • Clamp End: available in widths of 65 mm (size 100), 110 mm (size 150; set as 85 mm in Victoria), 140 mm (size 200) and 190 mm (size 250).
  • Bolted End Bracket (BEB).

Literature

Megaspan Purlins and Girts Design Manual

Megaspan Purlins and Girts Design Manual
