Fascia Bridging

Verified by manufacturer over a year ago

Metroll

Bridging system between the internal purlin and the fascia purlin.

Jump to:
+61 8 9365 5444 Website

Application

Suitable for supporting the internal purlin and straightening and securing the fascia purlin.

Description

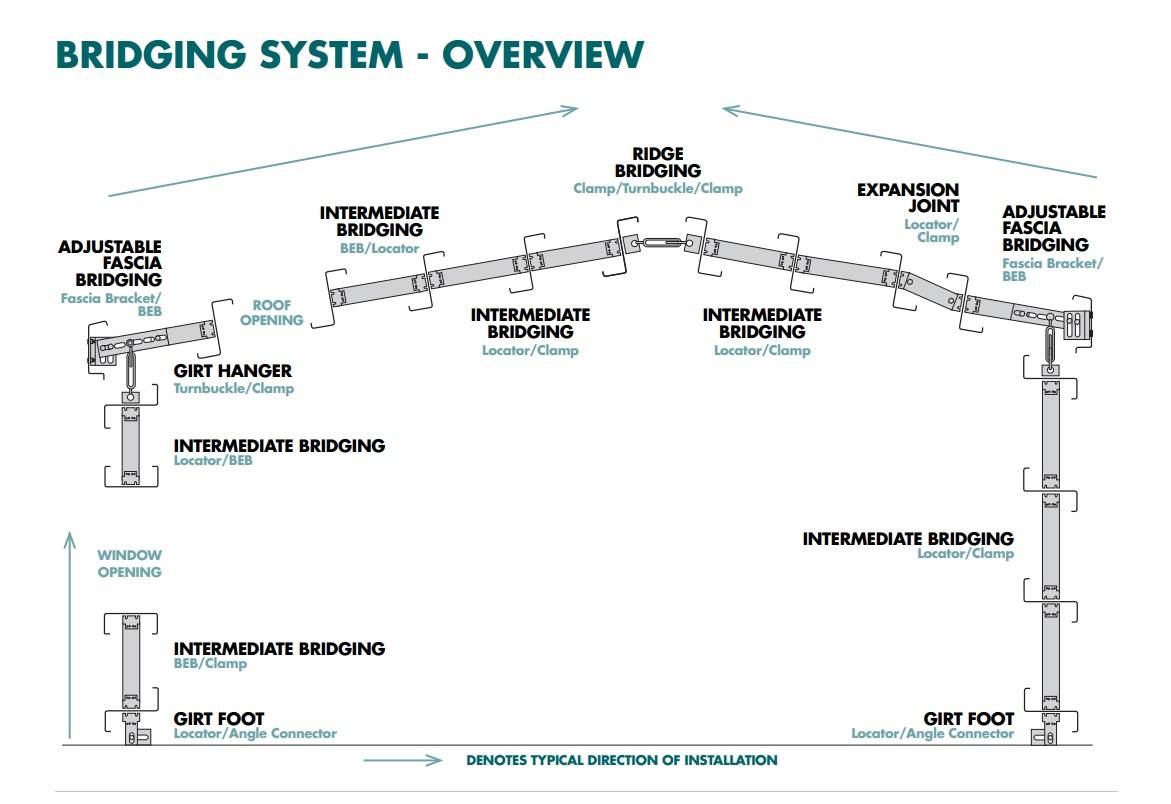

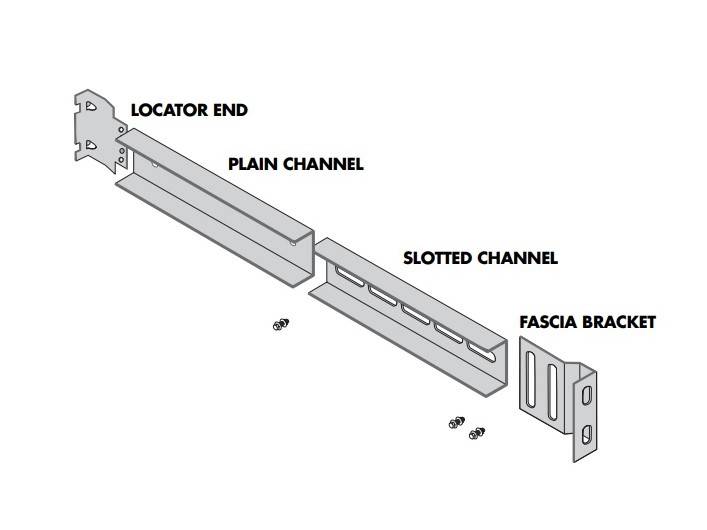

Fascia Bridging is a bridging system between the internal purlin and the fascia purlin. It is one of the typical Met-lock roof bridging assemblies with features including:

  • Fast installation.
  • Robust, straight and true.
  • Hook centres to match holes in purlins and girts.

General information

Material

Steel.

Uniclass

Pr_20_76_51_21 Cold-formed galvanized steel sectionsPrimary

SpecPack

05400 Cold-Formed Metal Framing

NATSPEC National Classification System

0342 Light Steel Framing

SpeedSpec

05400 Cold Formed Metal Framing

Specification data - Cold-formed galvanized steel sections

Primary components

Combination of Plain and Slotted Channel.

Manufacturer guidance

Plain Channels are cut to length. Slotted Channels range from 130 mm to 310 mm.

Ancillary components

Locator End and Fascia Bracket.

Manufacturer guidance

Locator Ends range from 65 mm to 190 mm in width. Fascia Brackets come in either 110 mm or 160 mm.

Length (effective)

-

Manufacturer guidance

Refers to bridging length of combined Plain and Slotted Channel. Plain Channels are cut to length. Slotted Channels range from 130 mm to 310 mm.

Bracing

-

Manufacturer guidance

Refers to size of Locator End. Standard widths are 65 mm (size 100), 110 mm (size 150; set as 90 mm in Victoria), 140 mm (size 200) and 190 mm (size 250).

Fasteners

-

Manufacturer guidance

Refers to size of Fascia Bracket. Available sizes include:

  • Size 150: 110 mm (width) x 135 mm (depth) with two holes measuring 80 mm x 14 mm each.
  • Size 200 or 260: 160 mm (width) x 135 mm (depth) with four holes measuring 65 mm x 14 mm each.
