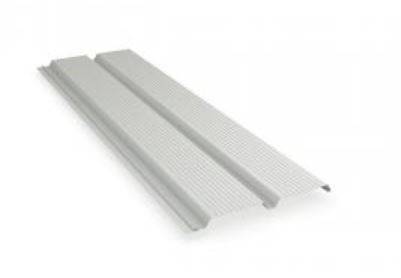

LYSAGHT EASYCLAD® (COLORBOND® Steel & ZINCALUME® Steel)

Name: LYSAGHT EASYCLAD® (COLORBOND® Steel & ZINCALUME® Steel)
Brand: Lysaght
SKU: i56xwF8SEonLJHkG2moJzF

Verified by manufacturer over a year ago

ZINCALUME® Steel

Lysaght

Attractive, strong wall cladding solution.

Jump to:

+61 1800 800 789 Website

Application

Suitable for walls, ceilings, infill panels and screens.
Suitable for exterior and interior application.
Can be used for eaves lining.
Can be installed with clips for fixing.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0 – 1992
AS 4040.1 – 1992
AS 4040.2 – 1992
AS 4040.3:2018

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles –
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions –
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions –
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding

Lysaght steel products comply with:

AS 1397-2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium –
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements –
AS 1397-2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

Easyclad® is an attractive, strong solution for both interior and exterior walling applications. Simple clips are used for fixing the start of the first sheet and subsequent sheets are nailed or screwed. Some of its significant features include:

Easy to install.
High-impact resistance sheets.
Sheets can run vertically or horizontally.
Nominal cover width at 300 mm.

Only available in NT, QLD, NSW, ACT, VIC, TAS & SA.

General information

Material	COLORBOND® Steel. ZINCALUME® Steel.
Size	300 mm Guidance for specification option: Cover width at 300 mm.
Warranty description	- Manufacturer guidance Covered by BlueScope material performance warranties.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing
NATSPEC National Classification System	0431 Cladding - Combined
SpeedSpec	07462 Cladding External Walls

Specification data - Steel profiled sheet

Standards	To AS 1397:2011 and AS/NZS 2728:2013.
Grade	G550.
Coating class	AM125.
Base Metal thickness (BMT)	0.42.
Profile	-
Form	Trapezoidal pans, flat ribs.
Height	19 mm.
Cover width	300 mm. Manufacturer guidance Width tolerance at +1.5 mm, –1.5 mm.
Colour	- Manufacturer guidance Available in unpainted steel range. Check with the manufacturer.
Finish	Zincalume® steel.
Solar absorptance value (maximum)	- Manufacturer guidance Solar absorptance values vary depending on the COLORBOND® steel colour of choice. To check with the manufacturer.

Length	- Manufacturer guidance Length tolerance: +0 mm, –15 mm. Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. Check with the local manufacturer for availability.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	Fully recyclable.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	20 %
