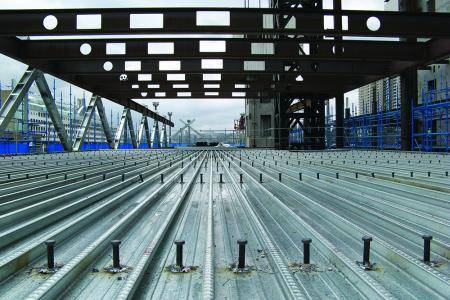

LYSAGHT BONDEK®

Name: LYSAGHT BONDEK®
Brand: Lysaght
SKU: kErxBdrpiCzbNohcAgYgK7

Verified by manufacturer over a year ago

Structural decking system for concrete floors with accessories to allow easy suspension of ceilings. Available in WA, SA, VIC and TAS.

Jump to:

+61 1800 800 789 Website

Application

Suitable as steel formwork for concrete slabs. Available in WA, SA, VIC and TAS only. In NSW/ACT, QLD and NT, BONDEK PLUS® is supplied.

AUSTRALIAN STANDARDS

Complies with Section B of the Building Code of Australia and with the relevant Australian Standards (AS 3600:2009 and AS/NZS 1170.0:2002).

Description

LYSAGHT BONDEK® is an efficient, versatile and robust structural decking and ceiling system for concrete slabs. It is a highly regarded formwork product offering efficiency and speed of construction. Some of its features include:

Excellent spanning capacities with less deflection.
Slip free embossments and ribs.
Acting as a permanent formwork.
Works as a composite slab (saving on concrete and reinforcement costs).

General information

Finish	Zinc-coated.
Material	Steel.
Width	590 mm
Height	54 mm
Warranty description	- Manufacturer guidance Backed by a BlueScope Steel warranty.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpecPack	03310 Concrete
SpeedSpec	03310 Concrete
NATSPEC National Classification System	0310 Concrete - Combined

Specification data - Steel profiled sheet

Standards	To AS 1397.
Grade	G550.
Coating class	Z350.
Base Metal thickness (BMT)	0.60. Guidance for specification option: Mass: 5.03 kg/m. Coverage: 117.37 m²/t. 0.75. Guidance for specification option: Mass: 6.20 kg/m. Coverage: 95.24 m²/t. 0.90. Guidance for specification option: Available by special order only. Mass: 7.36 kg/m. Coverage: 80.16 m²/t. 1.00. Guidance for specification option: Mass: 8.14 kg/m. Coverage: 72.52 m²/t.
Profile	-
Form	Trapezoidal.
Height	54 mm.
Cover width	590 mm.
Colour	Natural. Manufacturer guidance Pre-painted BRITEWITE® soffit is available on enquiry.
Finish	Zinc-coated.

Slab depth	100–250 mm. Manufacturer guidance Indicates compatible slab depths.
Slab size	Dependant on slab depth, BMT and props per span. Manufacturer guidance Indicates maximum slab span. Refer to Construction Manual and General Engineering Notes from manufacturer.
Fire resistance	BONDEK® composites slabs can achieve a fire resistance of up to 240 minutes.
