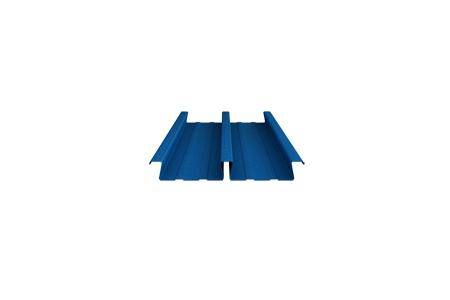

LYSAGHT BONDEK PLUS® 2P
Verified by manufacturer over a year ago
Structural decking system for concrete floors with accessories to allow easy suspension of ceilings. Available in SA.
Application
Suitable for both concrete and steel frame construction. Available in SA only.
AUSTRALIAN STANDARDS
Complies with Section B of the Building Code of Australia and with the relevant Australian Standards (AS 3600:2009 and AS/NZS 1170.0:2002).
Description
LYSAGHT BONDEK PLUS® 2P is a traditional flat pan concrete formwork profile with superior spanning capabilities, less deflection and greater composite strength than similar re-entrant profiles. Some of its features include:
- Patented corner embossments for stronger composite strength.
- Dovetail ribs for superior spanning (resists lateral deflection by up to 10%).
- Works as composite slab saving on concrete and reinforcement costs.
General information
Finish | Zinc-coated. |
Material | Steel. |
Width | 400 mm |
Height | 55 mm |
Warranty description | Manufacturer guidanceBacked by a BlueScope Steel warranty. |
Uniclass | |
SpecPack | 03310 Concrete |
SpeedSpec | 03310 Concrete |
NATSPEC National Classification System | 0310 Concrete - Combined |
Specification data - Steel profiled sheet
Standards | To AS 1397. |
Grade | G550. |
Coating class | Z350. |
Base Metal thickness (BMT) | 0.60.Guidance for specification option: Mass: 3.43 kg/m. Coverage: 116.65 m²/t. 0.75.Guidance for specification option: Mass: 4.22 kg/m. Coverage: 94.7 m²/t. 0.90.Guidance for specification option: Available on request. 1.00.Guidance for specification option: Mass: 5.55 kg/m. Coverage: 72.09 m²/t. |

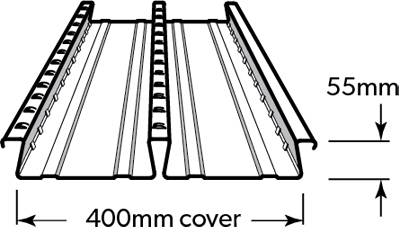

Profile | |
Form | Trapezoidal. |
Height | 55 mm. |
Cover width | 400 mm. |
Colour | Natural. |
Finish | Zinc-coated. |
Slab depth | 100–250 mm. Manufacturer guidanceIndicates compatible slab depths. |
Slab size | Dependant on slab depth, BMT and props per span. Manufacturer guidanceIndicates maximum slab span. Refer to Construction Manual and General Engineering Notes from manufacturer. |
Sustainability data
Country of product manufacture | Australia |
