KingKlip® 700 Non-Cyclonic
Verified by manufacturer over a year ago
WA Only
WA Only
Roofing and walling profile with high flexibility. Available in NSW, VIC, SA and WA only.
Application
Suitable for curved and flat roofs and as commercial roofing solution. Available in varying profiles in New South Wales, Victoria, South Australia and Western Australia only.
AUSTRALIAN STANDARDS
Published load capacity data is derived from testing in accordance with:
- AS 4040.0:1992.
- AS 4040.1:1992.
- AS 4040.2:1992.
- AS 4040.3:2018.
Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:
- AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
- AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
- AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
- AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.
Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.
Fielders steel products comply with:
- AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
- AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
- AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.
Description

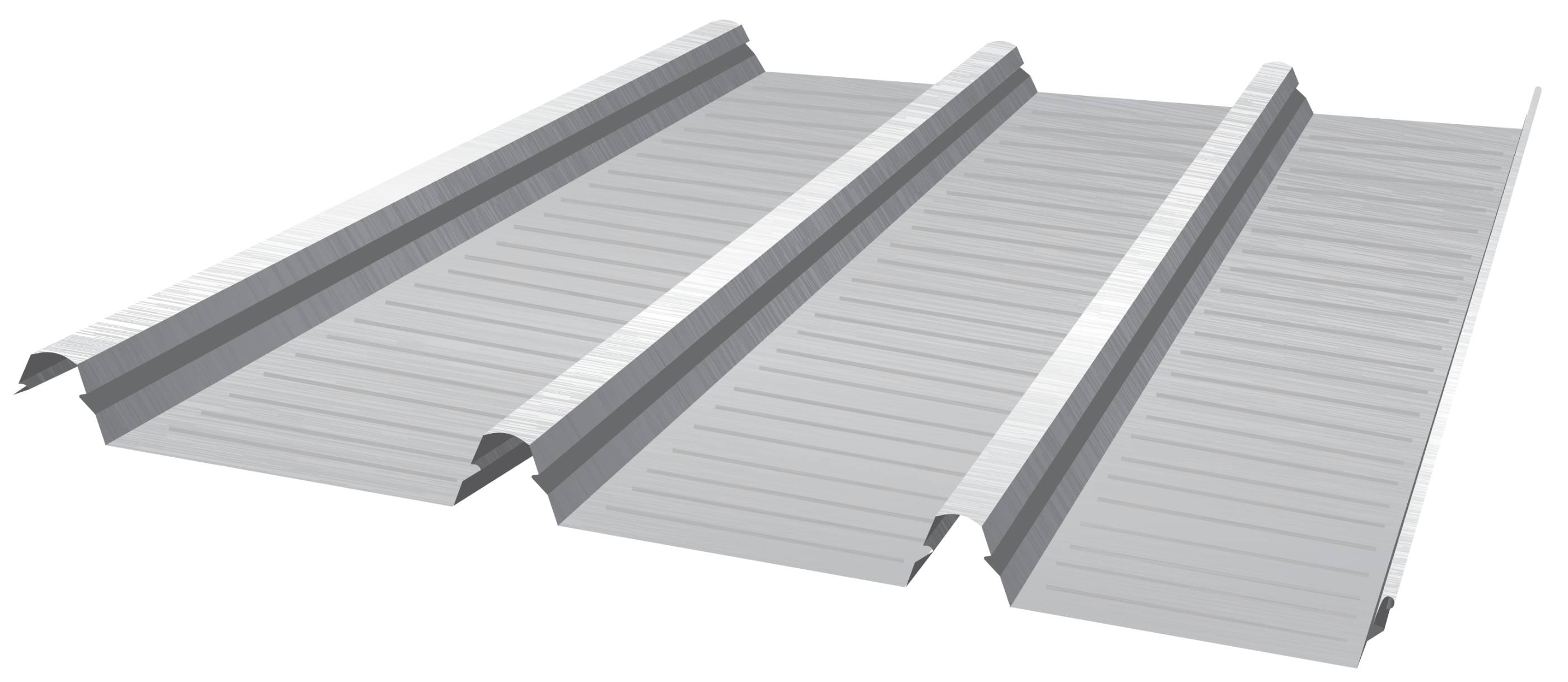

KingKlip® 700 Non-Cyclonic is a concealed-fix roofing and walling profile with high flexibility. It is available in a variety of lengths through the Fielders® Mobile Mill and can be installed through various fixing methods. Some of its features include:
- Combination of watertightness and strength.
- Faster installation and larger sheets.
- Fewer laps than alternative conventional screw fixed roofs.
- Available in a range of colours and finishes.
General information
Material | Steel. |
Shape | Rectangle |
Warranty description | 20 years. Manufacturer guidanceCovered by BlueScope material warranties. Warranty of up to 20 years, subject to project assessment and terms and conditions. |
Uniclass | |
SpeedSpec | 07610 Roofing and Roof Plumbing 07462 Cladding External Walls |
NATSPEC National Classification System | 0436 Cladding – Profiled and Seamed Sheet Metal 0423 Roofing – Profiled Sheet Metal |
SpecPack | 07600 Metal Roofing, Siding and Roof Plumbing |
Specification data - Steel profiled sheet
Standards | To AS 1397 and AS/NZS 2728.Guidance for specification option: Installation of the cladding should be in accordance with AS 1562.1 and HB 39. |
Grade | G550. |
Coating class | AM100 (COLORBOND® steel).AM125 (ZINCALUME® steel).AM150 (COLORBOND® ultra steel).Z400 (Galvanised steel).Z600 (Heritage galvanised steel). |
Base Metal thickness (BMT) | 0.42 mm.0.48 mm. |
Profile | |
Form | Trapezoidal. |
Height | 40 mm.Manufacturer guidanceRefers to rib height. |
Cover width | 700 mm.Manufacturer guidanceProvide manufacturing tolerance of ±4 mm. |
Colour | Basalt.Guidance for specification option: Available in COLORBOND® steel coating only. Classic Cream.Guidance for specification option: Available in COLORBOND® steel coating only. Cottage Green.Guidance for specification option: Available in COLORBOND® steel coating only. Cove.Guidance for specification option: Available in COLORBOND® steel coating only. Deep Ocean.Guidance for specification option: Available in COLORBOND® steel coating only. Dune.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Haze.Guidance for specification option: Available in COLORBOND® steel coating only. Gully.Guidance for specification option: Available in COLORBOND® steel coating only. Ironstone.Guidance for specification option: Available in COLORBOND® steel coating only. Jasper.Guidance for specification option: Available in COLORBOND® steel coating only. Mangrove.Guidance for specification option: Available in COLORBOND® steel coating only. Manor Red.Guidance for specification option: Available in COLORBOND® steel coating only. Monument.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Night Sky.Guidance for specification option: Available in COLORBOND® steel coating only. Pale Eucalypt.Guidance for specification option: Available in COLORBOND® steel coating only. Paperbark.Guidance for specification option: Available in COLORBOND® steel coating only. Shale Grey.Guidance for specification option: Available in COLORBOND® steel coating only. Standard steel (for ZINCALUME® steel and galvanised steel variation only).Guidance for specification option: Available in silver matt finish only. Surfmist.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Terrain.Guidance for specification option: Available in COLORBOND® steel coating only. Wallaby.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Windspray.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Woodland Grey.Guidance for specification option: Available in COLORBOND® steel and COLORBOND® Ultra steel coating. Basalt (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Dune (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Monument (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Shale Grey (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Surfmist (Matt).Guidance for specification option: Available in COLORBOND® steel coating only. Aries (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Astro (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Celestian (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Cosmic (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Galactic (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Rhea (Metallic).Guidance for specification option: Available in COLORBOND® steel coating only. Manufacturer guidanceColours are limited to certain finishes. |
Finish | Painted (COLORBOND® steel).Zinc-coated (ZINCALUME® steel and galvanised steel.) |
Length | Manufacturer guidanceSheets are supplied custom cut to length to suit project requirements. Transportation limits apply. To address thermal expansion and contraction, the recommended maximum sheet length is 24 m. Where lengths exceed 24 m, step joints or concealed decks are recommended. Provide manufacturing tolerance of ±7 to 15 mm in length. |
Span | 900 mm. 1200 mm. 1500 mm. 1800 mm. 2100 mm. Manufacturer guidanceRefers to maximum allowable spans based on supports of 1.0 mm BMT. These vary depending on profile thickness and span type. Maximum spans are as follows:
|
Frame or support | Steel (single thickness steel of 1.0 to 3.0 mm BMT). Guidance for specification option: Affix with 5.4-14 x 25 mm Vortex Hex Head and 12-14 x 30 mm Concealed Hex Tek screws. Steel (total lapped thicknesses of 1.0 to 3.8 mm BMT). Guidance for specification option: Affix with 5.4-14 x 25 mm Vortex Hex Head and 12-14 x 30 mm Concealed Hex Tek screws. Timber Hardwood (J1 - J3). Guidance for specification option: Affix with 5.4-14 x 25 mm Vortex Hex Head screws. Timber Softwood (J4). Guidance for specification option: Affix with 5.4-14 x 25 mm Vortex Hex Head screws. Manufacturer guidanceRefers to recommended fixing supports and fasteners if product is to be installed without insulation. Use three fasteners per clip. Contact manufacturer for details on screw fixed installation. |
Mass | 4.61 – 4.65 kg/m² (0.42 mm BMT). 5.24 – 5.28 kg/m² (0.48 mm BMT). |
Insulation | Manufacturer guidanceWhen insulation thickness up to 50 mm are installed, screws may need to be increased in number depending on insulation thickness and density. For insulation thicknesses greater than 50 mm, Fielders® recommends the use of a thermal spacer. |
Installation | Concealed clip fixed. Guidance for specification option: To be installed with MK2 KingKlip® Concealed Fix Clipping System. Screw fixed. |
Manufacturing location | Manufactured on-site with Fielders Mobile Mill. Manufactured at a Fielders facility and transported to project site. |
Sustainability data
Country of material origin | Australia |
Country of product manufacture | Australia |
Recyclability | 100% Recyclable. |
