Deckshield ED Rapide
Verified by manufacturer over a year ago
AWTA Test results
Certificate type
Deckshield ED Rapide is a crack bridging MMA resin-based car park deck waterproof coating for exposed decks.
Application
Used to cosmetically enhance and waterproof external and multi-storey carparks.
Description
A crack bridging MMA carpark deck coating that provides colorful, waterproof and durable surface for exposed decks.
- Rapid Curing, fast track application, can be overcoated without mechanical preparation.
- Waterproof to as per AS 4654.1 waterproofing Membrane standard.
- Crack bridging, flexible, solvent-free and used where elongation is critical.
- Provides fire, slip, abrasion, UV and chemical resistance to carpark surfaces.
- High textured noise reducing finish.
- UV resistant
- Low VOC.
- Colourful and attractive coating system.
- Non hazardous to health and environment.
- Seamless, hygienic finish.
General information
Color | Manufacturer guidanceWide range of colours available. Applicators responsibility to verify accuracy of colour prior to application. Check with the manufacturer's data sheet and instruction. |
Finish | Satin. |
Material | Methyl methacrylate |
Warranty description | Manufacturer guidanceGuaranteed against defective materials and manufacture. Subject to Flowcrete standard ‘Warranty, Terms and Conditions of Sale. Check with manufacturer for details. |
Uniclass | |
NATSPEC National Classification System | 0657 Resin Based Seamless Flooring |
SpeedSpec | 03365 Concrete Finishes |
SpecPack | 07180 Traffic Coatings |
Product range |
Specification data - Resin flooring systems
Substrate preparation | Manufacturer guidanceConcrete should be finished by steel trowel. Surface preparation is to be completed by totally enclosed light shot blasting or course or diamond grinding to a minimum CSP3 prior to any coating application. For proper methods, refer to ICRI’s Technical Guideline No. 03732. |
Reinforcement | Manufacturer guidanceApply a band of Flowfast Primer, 50 mm wider than the reinforcing scrim. Allow to cure. Apply a band of Deckshield PDS Membrane. While still wet, apply Deckshield Scrim (Permafab), immediately followed by a second layer of Deckshield PDS Membrane. Allow to cure. Reinforce all horizontal and vertical junctions and gullies etc. as follows: Apply a band of Flowfast Primer and allow to cure. Apply a fillet of Dymonic 100 sealant to horizontal/vertical junction and allow to cure. |
Standard | To AS 4654.1:2012. |
Primer | Flowfast Primer @ 0.35 kg/m². Manufacturer guidanceFor coating application and instruction . To follow manufacturer's technical data sheet. |
Membrane | Deckshield PDS membrane. Guidance for specification option: Applied in two coats @ 0.6 kg/m² per coat. |
Binder | Apply Flowfast Flexible Binder mixed with SNL Filler. Guidance for specification option: Apply Flowfast Flexible Binder at 0.75kgm² mixed with SNL Filler at 0.75kgm². Manufacturer guidanceFor coating application and instruction . To follow manufacturer's technical data sheet. |
Aggregate | 24 Mesh White Aluminium Oxide Aggregate. |
Sealer coat | Flowfast Flexible Sealer. Guidance for specification option: Applied in two coats. First coating @ 0.45- 0.55kg/m², second coating @ 0.25- 0.35kg/m². Manufacturer guidanceRate dependent on aggregate. Follow manufacturer's instructions for application. |
Colour | Bluebell. Bridge Grey. Dark Grey. Light Grey Blue. Light Grey. Manufacturer guidanceApplicators responsibility to verify accuracy of colour prior to application. Refer to manufacturers' data sheets and instructions. For a full colour chart and sample requests, contact the manufacturer. |
Finish: | Satin. |
NominalThickness | 4 mm. 6 mm. |
Slip resistance | P5 (Based on 24 Mesh White Aluminium Oxide Aggregate). Manufacturer guidanceSlip resistance value as per method describe in AS 4586. |
UV resistance | UV stable. |
Coving | Manufacturer guidanceCoving can form an integral part of the flooring system. It creates a sealed finish between the floor and wall joint. Please refer to Flowtex F1 Coving Mortar for further information. |
Curing time | Foot traffic curing - 1 hour. Full chemical cure between 2 hours to 3 hours. Vehicular traffic between 2 hours to 3 hours. Manufacturer guidanceCure time per coating. Check and verify with the manufacturer. |
Fire performance | To AS/ISO 9239.1. Guidance for specification option: Fire resistance to AS/ISO 9239.1. |
Fire resistance | CHF Value 2.7 kW/m². HF-30 Value 4.9 kW/m². Smoke Value 226% (Mean). |
VOC content | Less than 250 g/L. Manufacturer guidanceCompliant with Green Star Design & As Built V1.2-13.1.1B, Green Star Interiors V1.2-12.1.1B. |
Sustainability data
Country of product manufacture | Australia |
Third party certifications

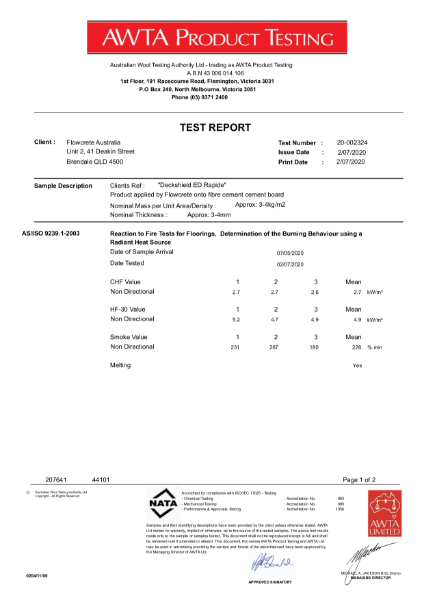

AWTA Test results
Deckshield ED Rapide AWTA Fire Test
Literature

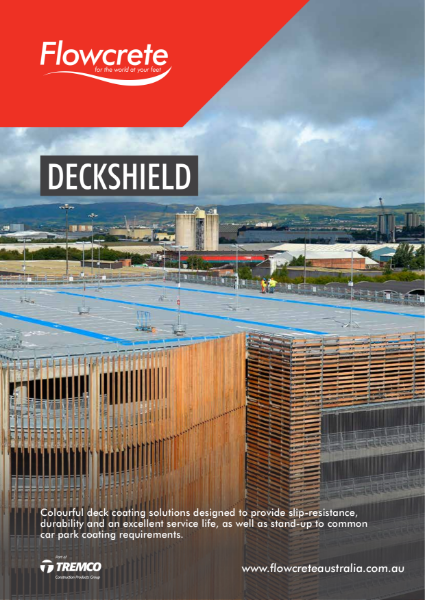

Deckshield Brochure

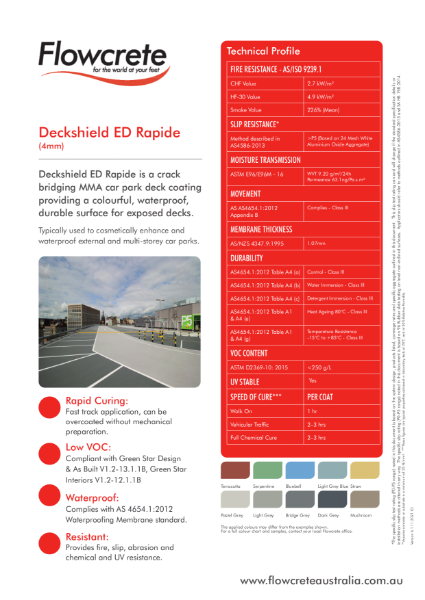

Deckshield ED Rapide 4mm

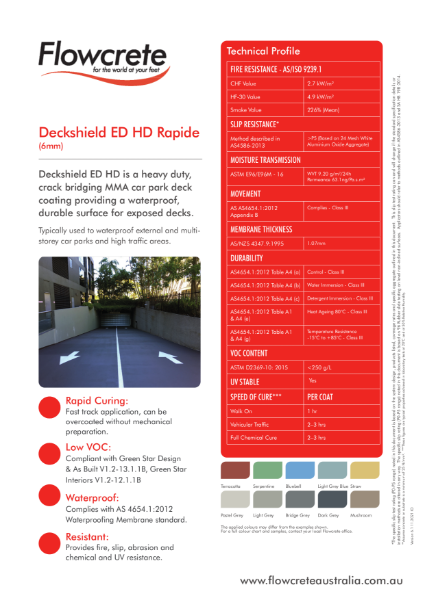

Deckshield ED Rapide 6mm
Case studies

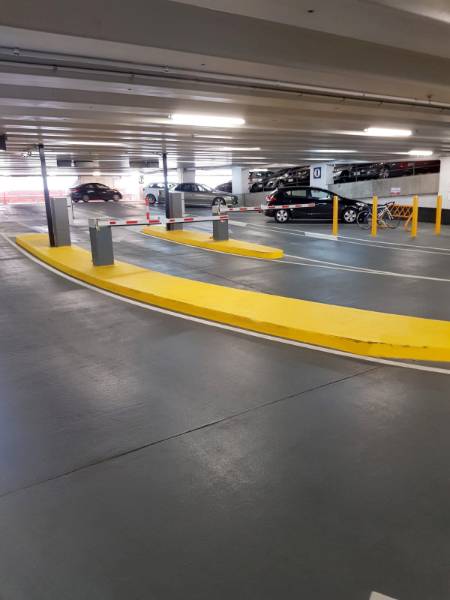

Waterproof Deck Coating Solution for Gawler Place
