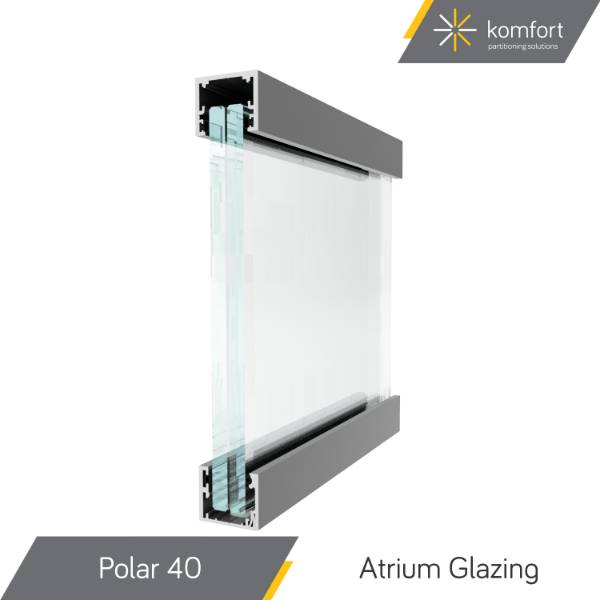

Polar 40 is Komfort’s mullion-free atrium glazing system using 19.5–21.5 mm glass configurations with a minimal aluminium trackwork for increased structural performance. The silicone jointed glazing is fully demountable and relocatable.

Features and benefits:

Trackwork | 40 x 32 mm (width x depth).
Screen height | up to 3900 mm _{depending on configuration.}
Acoustic performance | Up to 43 dB (Rw) single glazed, up to 53 dB (Rw) double glazed with Polar 30 _{depending on configuration.}
Structural performance | 0.74 kN/m up to 3900 mm, 1.5 kN/m up to 3575 m (BS 6180) _{depending on configuration.}
Fire performance | None.
Deflection | +/-25 mm option at head.
Glass options | 19.5 mm or 21.5 mm toughened laminated.
Glass specification | all glass can be specified as low-iron.
Other options | applied Kross Glaze bars.
Finishes | polyester powder coated to any RAL or BS colour code or special anodized finishes.

Please consult the Komfort Specification Team for further information and certifications.

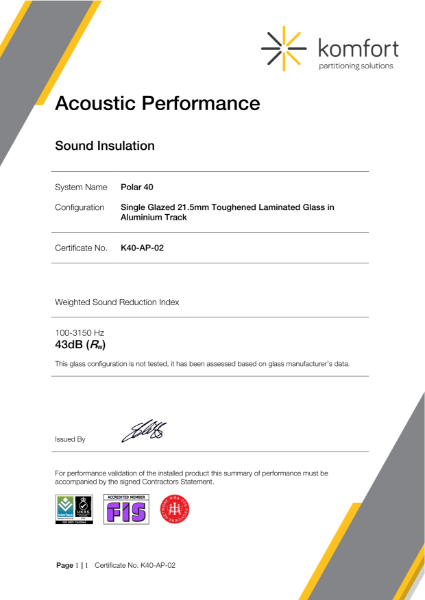

K40-AP-02 | Acoustic Performance | Polar 40 | 21.5mm Toughened Laminated | 43dB
