Polar 35FR is Komfort’s mullion-free single glazed 30/0 fire rated partitioning system using Pyrostop 14 or Pyrobel 16 glass configurations with a minimal aluminium trackwork.

Features and benefits:

Trackwork | 35 mm Wide x 32 mm Deep
Screen Height | Up to 3000 mm _{depending on configuration}
Acoustic Performance | Up to 39 dB (Rw) _{depending on configuration}
Structural Performance | 0.74 kN/m up to 3000 mm (BS 6180) _{depending on configuration}
Fire Performance | 30/0
Deflection | None
Door Options | 12 mm Pyran S Glass Doorsets up to 2800 mm or Fire Rated 44 mm & 54 mm Timber Doorsets up to 3000 mm
Finishes | Polyester Powder Coated to any RAL or BS Colour Code or Special Anodized Finishes

Please consult the Komfort Specification Team for further information and certifications.

Additional Notes on Supporting Construction

The supporting construction may be blockwork, brickwork or concrete walls, but shall be a type that provides in excess of 30 minutes fire resistance at the required size and with the required aperture size. Partitions constructed from steel or timber studs with layers of plasterboard may be used as an alternative supporting structure, ensuring that it deflects no more than 10 mm when subjected to fire resistance test conditions.

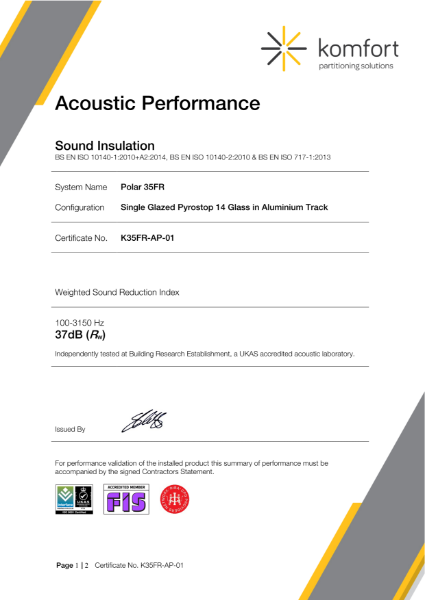

K35FR-AP-01 | Acoustic Performance | Polar 35FR | Pyrostop 14 | 37dB (Rw)
