Polar 101FR is Komfort’s mullion-free double glazed partitioning system using 10–14.8 mm glass configurations with a minimal aluminium trackwork.

Features and benefits:

Trackwork | 100mm Wide x 32mm Deep
Screen Height | Up to 3000 mm _{depending on configuration}
Acoustic Performance | Up to 53dB (Rw) _{depending on configuration}
Structural Performance | 0.74kN/m up to 3000mm (BS 6180) _{depending on configuration}
Fire Performance | 30/0
Deflection | None
Door Options | 12mm Pyran S Glass Doorsets up to 2800mm or Fire Rated 44mm & 54mm Timber Doorsets up to 3000mm
Other Options | Ghost Posts, Integral Blinds _{depending on configuration}
Finishes | Polyester Powder Coated to any RAL or BS Colour Code or Special Anodized Finishes

Please consult the Komfort Specification Team for further information and certifications.

Additional Notes on Supporting Construction

Please note that in accordance with PAR/20075/01 the supporting construction may be blockwork, brickwork or concrete walls, but shall be a type that provides in excess of 30 minutes fire resistance at the required size and with the required aperture size. Partitions constructed from steel or timber studs with layers of plasterboard may be used as an alternative supporting structure, ensuring that it deflects no more than 10 mm when subjected to fire resistance test conditions.

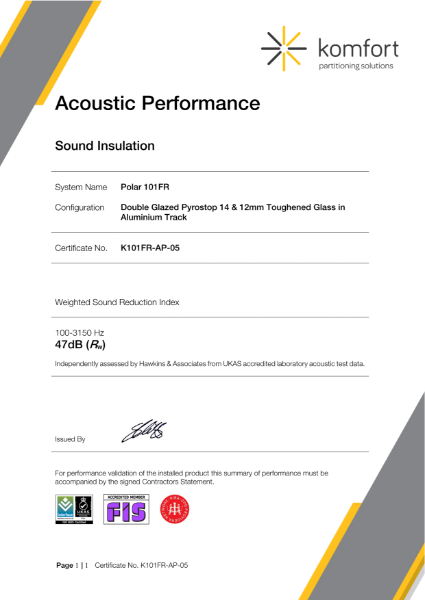

K101FR-AP-05 | Acoustic Performance | Polar 101FR | Pyrostop 14 & 12mm Toughened | 47dB (Rw)
