Polar 101 is Komfort’s mullion-free offset single glazed partitioning system with offset trackwork using 15-17.5mm glass with a minimal aluminium trackwork for increased structural and acoustic performance. The dry jointed glazing is fully demountable and relocatable.

Features and benefits :

Trackwork | 100mm Wide x 32mm Deep
Screen Height | Up to 3600 mm _{depending on configuration}
Acoustic Performance | Up to 41dB (Rw) _{depending on configuration}
Structural Performance | 0.74kN/m up to 3400mm, 1.5kN/m up to 2400m (BS 6180) _{depending on configuration}
Fire Performance | None
Deflection | +/-25mm Option at Head
Glass Options | 15mm Toughened, 17.5mm Toughened Laminated, 16.8mm Acoustic Laminated
Glass Specification | Toughened Glass Can be Specified as Heat Soaked, All Glass Can be Specified as Low-Iron
Door Options | 12mm Glass Doors, 44mm & 54mm Timber Doors, Sonik 52, 70 & 70R Doors
Other Options | Kross Glaze Bars
Finishes | Polyester Powder Coated to any RAL or BS Colour Code or Special Anodized Finishes
Integration | Fully Integrates with Komfire 100

Please consult the Komfort Specification Team for further information and certifications.

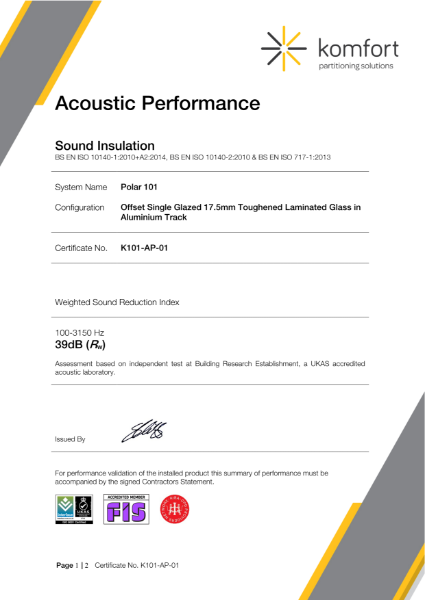

K101-AP-01 | Acoustic Performance | Polar 101 | 17.5mm Toughened Laminated | 39dB (Rw)
