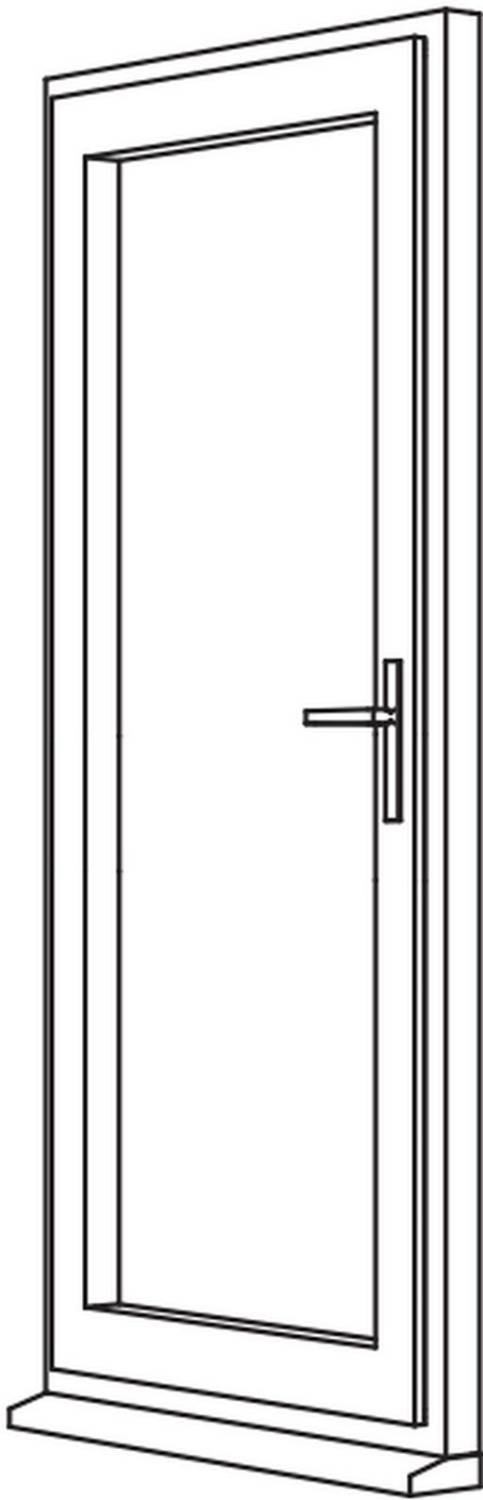

Zendow Neo Residential Door - R1 Open In

A range of PVC-U single residential doors, available in a range of styles and framing options in three standard finishes.

General information



PVC-U, Glass Fibre (Linktrusion®)


990 x 2100 mm

Uniclass 2015
Pr_30_59_24_92 Unplasticized polyvinyl chloride (PVC-U) doorsetsPrimary

L20/480 Doorsets

L20/55 Doorsets

Specification data - Unplasticized polyvinyl chloride (PVC-U) doorsets
Product Reference

Zendow Neo Doors - Residential

Door -
Size (w x h)

___ x ___ mm

Insert requirement.

As drawing ___




Door frame -

64 mm

70 mm






Not required

3310 Slimline coupler

3197 Slimline coupler

3705 Slimline coupler

1130 Reinforced coupler

6975 Reinforced coupler




Not required

2455 Head section

Accommodates proprietary trickle ventilators.

3300 Add-on

Allows additional clearance for hinges.

3301 Add-on

Accommodates proprietary trickle ventilators.

3302 Add-on

Frame build-up for conservatories.

3336 Add-on

Provides clearance over existing plaster or tiling.

3340 Add-on

Reveal liner adaptor.


Fully welded construction

Mechanically jointed transom and mullions


Not required

1044 D-mould

30 mm wide.

1087 Architrave

40 mm wide.

1178 Quadrant

19 mm.

3341 Architrave

Architrave adaptor.

3342 Architrave

30 mm wide.

3343 Architrave

35 mm wide.

Bay window corner posts

Not required

3313/3327 Slimline bay pole and adaptor

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor

Angles from 90°-270°.

6920 90° Square corner post

3196 Bay post

Fixed 135° angle.



Weather bars

Not required

3303 Head drip

3306 Weather bar

Projecting sill

Not required

3338 Projecting sill

150 mm.

3339 Projecting sill

180 mm.

3258 End cap

For 3338 Projecting sill.

3259 End cap

For 3339 Projecting sill.


Not required

3337 Stub-sill

95 mm.

3257 End cap

For 3337 Stub-sill.

Low Threshold

Not required

2976 AM3-70 open-in low threshold

2977 AM5EX-70 open-out low threshold

Doorset colour

RAL 9016 Traffic White

Decoroc patented coating system. Colour: RAL ___

Insert requirement.

Wood grain foil laminate. Finish: ___

Insert requirement.

Glazing -

Double glazed

Single glazed

Triple glazed


Not required

Georgian bar

Leaded lights

Stainless steel security glazing clip

Glazing beads

As drawing ___


As section P21


Not required

Proprietary ventilation device: ___

Insert requirement.

Standard product features

Linktrusion (combining new material and processes):

- Door sash:

Continuous glass fibre strip embedded into the outer walls, replacing traditional steel reinforcement to significantly increase thermal performance.

Accreditation (PAS 24, BS 7412, BS 6375):

- Maximum sizes tested:

  • Single leaf; 1200 mm wide x 2500 mm high.
  • Open-in or open-out, double glazed, standard or low PVC-U or aluminium threshold, DK (key-key) D KT (key-thumbturn).

- Performance:

  • Air permeability: Class 4.
  • Exposure category: Class A3.
  • Water tightness: Class 3A.

Seals and gaskets:

Main profiles supplied with high-performance integral multifunctional seal and gasket.


Galvanized steel profiles optimised for strength and secure hardware attachment.


  • Will accept hardware from most manufacturers.
  • Full depth euro-groove.
  • Secure location of hardware.


  • Internally glazed as standard.
  • Single doors have been assessed to PAS 24 (enhanced security).

Thermal insulation:

  • Whole door ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Door energy ratings E to A++ can be achieved.

Product Options


- Linktrusion (combining new material and processes):

Instead of traditional steel reinforcement, thermal reinforcement consisting of a recycled PVC skin, steel wires and a low density foam core to significantly increase thermal performance. Regular steel reinforcement also available.

  • 54 mm (threshold), 64 mm and 70 mm outer frames.
  • Dedicated 108 mm sashes for inward and outward opening doors.
  • Low threshold to suit inward and outward opening doors to improve access for the disabled and wheelchair users.

Door options:

  • Open in or open out.
  • Fanlights and sidelight frames.
  • Options for transoms and mullions.
  • Designed for use with entrance units and conservatories.


  • Fully welded construction.
  • Option for mechanically jointed transom and mullions.


  • Choice of three glazing bead styles.
  • Frames accept units from 5 mm up to 42 mm thick.
  • Sashes accept units from 17 mm up to 54 mm thick.
  • Georgian bar and leaded light options.

Architraves and finishing trims.

  • Frame extensions, sills and weathering trims.
  • Lightweight and structural coupling members.
  • Standard and structural bay corner posts.
  • Architraves and finishing trims.


Proprietary ventilation devices can be fitted to the doors in compliance with Building Regulations.


  • Fixing can be achieved through the frame with bespoke fixing lugs or into proprietary cavity closers or sub-frame systems.
  • Fixing methods exist for timber framing, flush or check reveals.

Digital objects
PlatformCompatibleVersionCertified to
Revit 2016 1 2.0
- 1 2.0
Download now from NBS National BIM Library
Third party certifications
  • BS 7412
  • BS 6375
  • PAS24
