Zendow 5000 Tilt & Turn (Standard Sash) - TT5 Opener/Fixed/Opener
Verified by manufacturer over a year ago

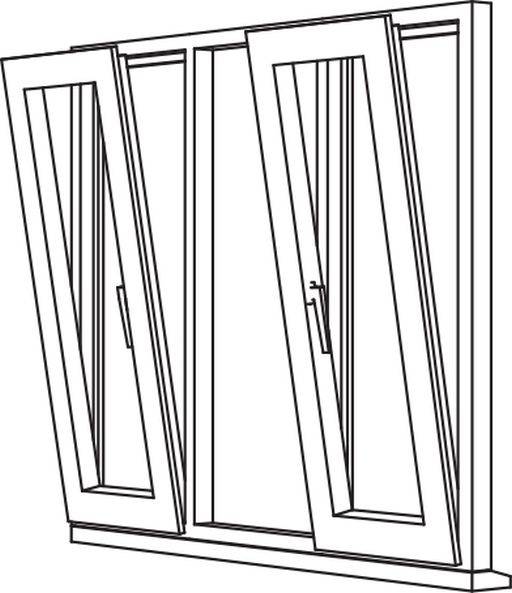

Opening light next to a fixed light next to an opening light style window with a simple contemporary design frame.
Application
Suitable for commercial projects.
Description
PVC-U tilt & turn windows, available in range of styles in three standard finishes.
Years of research and development has resulted in a technically advanced system ideal for commercial projects. With two sash sizes (72 mm & 80 mm), three frame sizes (54 mm, 64 mm & 70 mm), and a slim (80 mm) transom/mullion option.
Features and benefits:
- Zendow 5000 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
- Available in a range of colours and finishes.
General information
Color | White Guidance for specification option: Standard RAL 9016 Traffic White. Other Guidance for specification option: Decoroc patented coating RAL or Wood grain foil laminate. |
Material | PVC-U |
Shape | Rectangle |
Uniclass | |
CAWS | L10/30 PVC-U windows L10/350 PVC-U windows |
Product range |
Specification data - Unplasticized polyvinyl chloride (PVC-U) window units
Dimensions and configurations | Tilt and turn double opening light with fixed middle light. |
Product performance | |
Weather performance | |
UK exposure category | 2000 Pa. |
Air permeability | To BS EN 1026, 600 Pa (positive and negative pressure). |
Watertightness | Class 8A. |
Resistance to wind load | Class A5. |
Safety | |
Security level | To PAS 24. |
Environmental | |
Acoustic performance rating | Rw (C ; Ctr) 46 (-1 ; -3) dB. |
Thermal | |
Whole window U-value | Guidance for specification option:
|
British Fenestration Rating Council Window Energy Rating | A++ to C. |
Frame | |
Reinforcement | Galvanized steel.Guidance for specification option: Standard: Galvanized steel profiles optimised for strength and secure hardware attachment. Linktrusion.Guidance for specification option: Premium: continuous glass fibre strip embedded into the outer walls, replacing traditional steel reinforcement to significantly increase thermal performance. |
Colour and texture | White Grain.Heritage White.Ice Cream.Classic Cream.Agate Grey.Slate Grey.Grey.Soft Cherry.Quartz Grey.Chartwell Green.Steel Blue.Dark Red.Moss Green.Vin Rouge.Smooth Anthracite.Black Ash.Fir Green.Rustic Cherry.English Oak.Anthracite Grey.Golden Oak.Antique Oak.Grey Cedar.Irish Oak.Rosewood.Nut Tree.Silver Bullet.Bronze Metallic.Pyrite Mettalic.Black Brown.Light Ivory.Cream.Cement Grey.Traffic Grey.Concrete Grey.Umbra Grey.Blue Grey.Wine Red. |
Ventilator | Not required.Proprietary ventilation device. |
Glazing or infill | |
Requirements | Single glazed.Double glazed.Triple glazed. |
Hardware | Guidance for specification option:
|
Operation | |
Type | Manual. |
Fixing features | Guidance for specification option:
|
Size (w x h) | 1500 x 1000 mm. |
Outer frame size | 54 mm. 64 mm. 70 mm. |
Transom/ mullion size | 80 mm. |
Joints | Cruciform joints. Mechanically jointed. 'T' joints. Welded. |
Sash | 72 mm Neo Standard slim. 72 mm Neo Premium slim. 80 mm Neo Standard. 108 mm Neo heavy duty. |
Couplings | Not required. 3310 Slimline coupler. 3312 Slimline coupler. 3197 Slimline coupler. 3705 Reinforced coupler. |
Extensions | Not required. 2455 Head section. Guidance for specification option: Accommodates proprietary trickle ventilators. 3300 Add-on. Guidance for specification option: Allows additional clearance for hinges. 3301 Add-on. Guidance for specification option: Accommodates proprietary trickle ventilators. 3302 Add-on. Guidance for specification option: Frame build-up for conservatories. |
Architraves | Not required. 1044 D-mould. Guidance for specification option: 30 mm wide. 1087 Architrave. Guidance for specification option: 40 mm wide. 1178 Quadrant. Guidance for specification option: 19 mm. 3341 Add-on. Guidance for specification option: Architrave adaptor. |
Bay window corner posts | Not required. 3313/3327 Slimline bay pole and adaptor. Guidance for specification option: Angles from 138°-222°. 6916/ 3311 Bay pole and adaptor. Guidance for specification option: Angles from 90°-270°. 6920 90° Square corner post. 3196 Bay post. Guidance for specification option: Fixed 135° angle. |
Weather bars | Not required. 3303 Head drip. 3306 Weather bar. |
Projecting sill | Not required. 3338 Projecting sill. Guidance for specification option: 150 mm. 3339 Projecting sill. Guidance for specification option: 180 mm. 3258 End cap. Guidance for specification option: For 3338 Projecting sill. 3259 End cap. Guidance for specification option: For 3339 Projecting sill. |
Stub-sill | Not required. 3337 Stub-sill. Guidance for specification option: 95 mm. 3257 End cap. Guidance for specification option: For 3337 Stub-sill. |
Options | Not required. Georgian bar. Leaded lights. Manufacturer guidanceGlazing options. |
Style | Standard. Contemporary. Decorative. |
Ironmongery | As section P21. Concealed hinges. Full perimeter locking. |
Thickness | 5—42 mm. Manufacturer guidanceGlazing thickness. |
ThermalTransmittance | 1.2. |
Sustainability data
Material | PVC-U |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
