Zendow 5000 Tilt & Turn (Slim Sash) - TT3 Opener/Opener

Deceuninck Ltd

Opening light next to an opening light style window with a simple contemporary design frame.

Jump to:
+44 (0)1249 816969 Website

Application

Suitable for commercial projects.

Description

PVC-U tilt & turn windows, available in range of styles in three standard finishes.

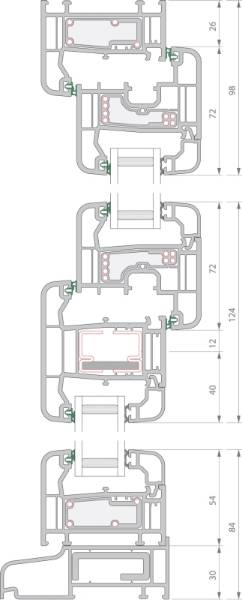

Years of research and development has resulted in a technically advanced system ideal for commercial projects. With two sash sizes (72 mm & 80 mm), three frame sizes (54 mm, 64 mm & 70 mm), and a slim (80 mm) transom/mullion option.


Features and benefits:

  • Zendow 5000 is a window and door system that offers the best in weather-proofing technology, energy efficiency and security.
  • Available in a range of colours and finishes.

.

General information

Shape

Rectangle

Color

White

Standard RAL 9016 Traffic White.

Other

Decoroc patented coating RAL or Wood grain foil laminate.

Material

PVC-U

Size

1000 x 1000 mm

Uniclass

Pr_30_59_98_92 Unplasticized polyvinyl chloride (PVC-U) window unitsPrimary

CAWS

L10/30 PVC-U windows

L10/350 PVC-U windows

Product range

Tilt & Turn Window / Contemporary (PVC-U)

Specification data - Unplasticized polyvinyl chloride (PVC-U) window units

Dimensions and configurations

Tilt and turn double opening light.

Product performance

-

Weather performance

-

UK exposure category

2000 Pa.

Air permeability

To BS EN 1026, 600 Pa (positive and negative pressure).

Watertightness

Class 9A.

Resistance to wind load

Class A5.

Safety

-

Security level

To PAS 24.

Environmental

-

Acoustic performance rating

Rw (C ; Ctr) 46 (-1 ; -3) dB.

Thermal

-

Whole window U-value

  • Whole window ‘U’ values comply with Approved Document L (Eng/Wales) Section 6 (Scotland) of the Building Regulations.
  • Lower ‘U’ values can be achieved.
  • Window energy ratings from C to A++ can be achieved.

British Fenestration Rating Council Window Energy Rating

A++ to C,

Frame

-

Reinforcement

Galvanized steel.

Standard: Galvanized steel profiles optimised for strength and secure hardware attachment.

Linktrusion.

Premium: continuous glass fibre strip embedded into the outer walls, replacing traditional steel reinforcement to significantly increase thermal performance.

Colour and texture

White Grain.

Heritage White.

Ice Cream.

Classic Cream.

Agate Grey.

Slate Grey.

Grey.

Soft Cherry.

Quartz Grey.

Chartwell Green.

Steel Blue.

Dark Red.

Moss Green.

Vin Rouge.

Smooth Anthracite.

Black Ash.

Fir Green.

Rustic Cherry.

English Oak.

Anthracite Grey.

Golden Oak.

Antique Oak.

Grey Cedar.

Irish Oak.

Rosewood.

Nut Tree.

Silver Bullet.

Bronze Metallic.

Pyrite Mettalic.

Black Brown.

Light Ivory.

Cream.

Cement Grey.

Traffic Grey.

Concrete Grey.

Umbra Grey.

Blue Grey.

Wine Red.

Ventilator

Not required.

Proprietary ventilation device.

Glazing or infill

-

Requirements

Single glazed.

Double glazed.

Triple glazed.

Hardware

  • System accepts all popular hardware, including concealed hinge types.
  • Full depth euro-groove
  • Secure location of hardware.

Operation

-

Type

Manual.

Fixing features

  • Fixing can be achieved through the frame with bespoke fixing lugs or into proprietary cavity closers or sub-frame systems.
  • Fixing methods exist for timber framing, flush or check reveals.

Size (w x h)

1000 x 1000 mm.

Outer frame size

54 mm.

64 mm.

70 mm.

Transom/ mullion size

80 mm.

Joints

Cruciform joints.

Mechanically jointed.

'T' joints.

Welded.

Sash

72 mm Neo Standard slim.

72 mm Neo Premium slim.

80 mm Neo Standard.

108 mm Neo heavy duty.

Couplings

Not required.

3310 Slimline coupler.

3312 Slimline coupler.

3197 Slimline coupler.

3705 Reinforced coupler.

Show more

Extensions

Not required.

2455 Head section.

Accommodates proprietary trickle ventilators.

3300 Add-on.

Allows additional clearance for hinges.

3301 Add-on.

Accommodates proprietary trickle ventilators.

3302 Add-on.

Frame build-up for conservatories.

Show more

Architraves

Not required.

1044 D-mould.

30 mm wide.

1087 Architrave.

40 mm wide.

1178 Quadrant.

19 mm.

3341 Add-on.

Architrave adaptor.

Show more

Bay window corner posts

Not required.

3313/3327 Slimline bay pole and adaptor.

Angles from 138°-222°.

6916/ 3311 Bay pole and adaptor.

Angles from 90°-270°.

6920 90° Square corner post.

3196 Bay post.

Fixed 135° angle.

Show more

Weather bars

Not required.

3303 Head drip.

3306 Weather bar.

Projecting sill

Not required.

3338 Projecting sill.

150 mm.

3339 Projecting sill.

180 mm.

3258 End cap.

For 3338 Projecting sill.

3259 End cap.

For 3339 Projecting sill.

Stub-sill

Not required.

3337 Stub-sill.

95 mm.

3257 End cap.

For 3337 Stub-sill.

Options

Glazing options.

Not required.

Georgian bar.

Leaded lights.

Style

Standard.

Contemporary.

Decorative.

Ironmongery

As section P21.

Concealed hinges.

Full perimeter locking.

Thickness

Glazing thickness.

5—42 mm.

ThermalTransmittance

1.2.

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

2.0
IFC
-

1

2.0
Download now from NBS National BIM Library
