Description

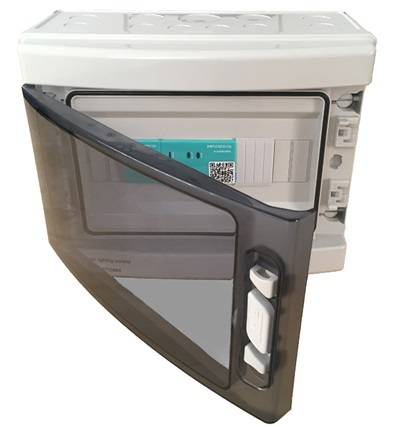

IP65-rated enclosure comprising one DALI Application Controller and Power Supply Unit pre-wired with terminals.

Ideal for control of DALI/DALI-2 luminaires in areas with exposed ceilings such as stairwells, lobbies, warehouses, factories and car parks. Each DALI Application Controller can support up to 64 DALI luminaires and 64 DALI devices.

A 1.5 mm² two-core DALI cable is wired from the Application Controller to permanently fed luminaires. Devices are powered off the DALI line.

Status and activity indicator lights confirm that the DALI controller and line are healthy and ready for commissioning, along with an on/ off button for manual override of all luminaires on the DALI line at any time.

General information
Features

10 / 100 Ethernet gateway to connect to cloud and extended system

Material

PC

Size

62 x 72 x 92.5 mm

WarrantyDescription

Standard warranty

Uniclass 2015 Centralized lighting controllers (Pr_70_70_47_12)
Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 1.3
Download now from NBS National BIM Library
