Zaptec Pro - EV charger | 7 - 22 kW charging unit | public or private car charger | OZEV and part S compliant | Open OCPP | - Charging Unit
Verified by manufacturer 4 months ago
ISO 9001 Quality Management
Certificate type
Statement of compliance
Certificate type
An AC electric car charging unit for commercial spaces, car parks and apartment blocks rated at 7-22 kW. The Zaptec Pro provides a safe and compliant charging experience for its users.
Application
- For larger parking spaces in commercial spaces, car parks and apartment blocks.

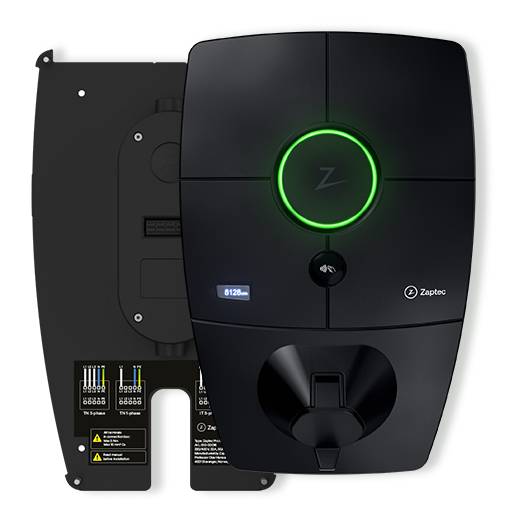

- The Zaptec Pro Backplate is required for the installation of Zaptec Pro and makes the installation simple, safe and neat.
- The Zaptec backplate can also be used where an installation only requires a small number of active chargers from day one, but the owner wishes to complete the infrastructure in one go, and then simply add the Zaptec Pro cover as demand requires.
Description
The Zaptec Pro is an electric car charging unit for commercial spaces, car parks and apartment blocks.
The Zaptec Pro charging system uses all available capacity and distributes it intelligently between the charging stations. Zaptec Pro performs load and phase balancing, and the charging station switches dynamically between one-phase and three-phase charging for the best possible utilisation.
With up to 22 kW of power, you can charge your EV up to a driving range of around 100 miles in only one hour.
Features and benefits:
- Patented charging technology - Zaptec Pro features dynamic load and phase balancing, which means you can utilise the available power more efficiently compared to traditional charging systems. This provides a seamless distribution of power among all vehicles, without overloading the facility. The system ensures an efficient and equitable charging experience for users – no matter how many there are.
- Scalable charging system - When installing Zaptec Pro, the infrastructure can be set up for all parking spaces. If there is increased demand for charging, you can quickly and easily scale the existing infrastructure with no additional effort or investment in the fuse box.
- Internet connection - Zaptec Pro offers a number of options to provide connectivity including 4G LTE-M, WiFi and Power Line Communication.
- Distribute costs fairly - Know that your vehicle receives precisely the amount of electricity you pay for. Zaptec Pro (MID) is equipped with a self-developed, built-in measuring instrument that adheres to the European Union’s Measuring Instruments Directive (MID). You can also monitor how much power is used in each charging session from the display on the charging station.
- A charge point operator (CPO) is required on all Pro installs as they operate the chargers, take payments and assist the managing agent. TAP Electric is one of Zaptec's CPO partners.
General information
Color | Black |
Finish | Matt |
Material | Acrylonitrile styrene acrylate (ASA) |
Shape | Other |
Length | 392 mm |
Width | 258 mm |
Height | 112 mm |
Warranty description | Five year |
Uniclass | |
CAWS | V90/590 Equipment V90/590 Equipment |
Specification data - Electric vehicle charging points
Standards | To IEC 61851-1, IEC 61851-22, Radio Equipment Directive 2014/53/EU, ROHS Directive 2011/65/EU. |
Charging mode | 3. |
Input voltage | 230 V a.c. single-phase.400 V a.c. three-phase.Manufacturer guidanceTN, IT and TT networks. |
Input current | 32 A. |
Rated frequency | 50 Hz. |
Power output | 22 kW at 32 A/ 3-phase.Guidance for specification option: Applicable to TN networks only. 12.7 kW at 32 A/ 3-phase.Guidance for specification option: IT network. 7.4 kW at 32 A/ 1-phase.Guidance for specification option: IT/TN network. |
Outlet type | Type 2 socket, to IEC 62196-2 with integrated self-closing cover.Guidance for specification option: Electronic lock, can be permanently locked by user. |
Mounting | Wall-mounted. |
Impact protection (minimum) | IK10. |
Ingress protection (minimum) | IP54. |
Circuit protection | Built-in type B RCD earth fault protection. |
Accessories | Not required.dLAN-pro PLC module.Guidance for specification option: The dLAN-pro attachment is needed on any Pro install where wifi connectivity is not close by. PLC stands for power line connectivity and means that the power cable from each charger carries the data signal to the PLC module rather than needing a hardwired CAT5/6 to each charger location. Zaptec Sense - three-phase.Guidance for specification option: Zaptec Sense - Zaptec (cloud) Zaptec Sense three-phase version is for commercial premises and allows Zaptec Pro to provide dynamic load management rather than just static load management. |
Operating temperature range | –30°C to +50°C. |
Colour | Black. |
FlammabilityRating | UL94 5VB. |
Communications | 4G LTE-M. Guidance for specification option: Subscription required. Wi-Fi 2.4 GHz, IEEE 802.11 b/g/n (channels 1-11). Powerline (PLC) – HomePlug Green PHY®, 10 Mbit/s. |
Configuration | Bluetooth Low Energy (BLE 4.1). |
Interfaces | API. Webhooks. OCPP 1.6J cloud-to-cloud. Message subscription. |
Integral accessories | Integrated power meter, MID class A tested and calibrated (EN 50470). |
Required accessories | Zaptec Backplate - ZM000438. Guidance for specification option:
|
Sustainability data
Country of material origin | Europe |
Country of product manufacture | Norway |
Material | Acrylonitrile styrene acrylate (ASA) |
Recyclability | Compliant with WEEE directive 2012/19/EU |
