This product is no longer available

Application

Suitable for use in office spaces and other large communal areas.

Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.

Description

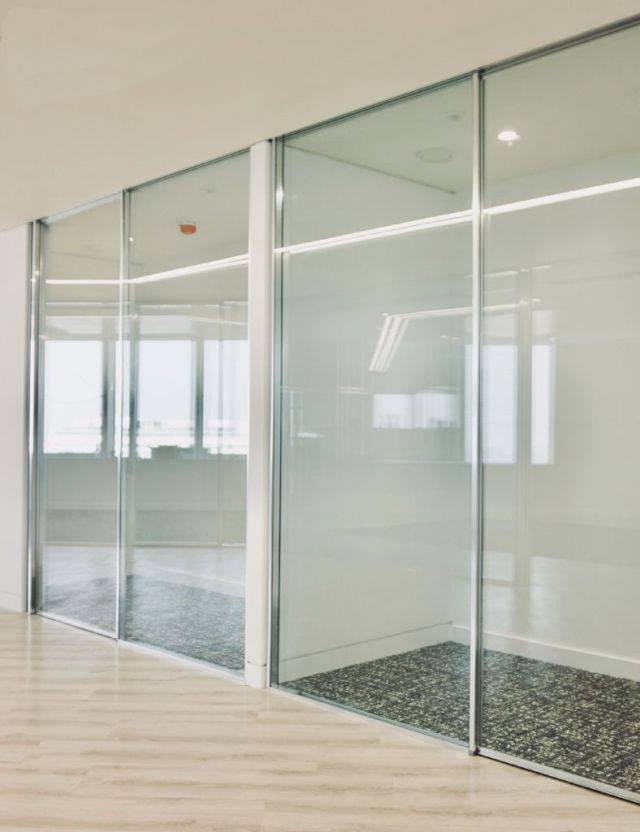

Demountable partition system, which can be integrated or non-integrated.

Features and benefits:

  • Flush, frameless system.
  • Available both single and double glazed; and glass thicknesses of 10–12.8 mm can be specified.
  • Can be integrated into ceilings and floors, as well as being non-integrated.
  • Various door options are available.

Applications:

Suitable for use in office spaces and other large communal areas.

Consult manufacturer to view relevant test results for each glazing combination and for guidance on specification choices.

General information
Specification data - Plasterboard panel partition systems
Product Reference

Z6 System

Module size

Standard module size: 200–1200 mm. Maximum height: 3000 mm. Consult manufacturer and insert requirements.

Glazing -
Type

Double glazed

Single glazed

Thickness/ Material

10 mm clear float toughened

10 mm low iron toughened

10.8 mm acoustic laminated

12 mm clear float toughened

12 mm low iron toughened

12.8 mm acoustic laminated

Head channel -
Type

Integrated

90 x 73 mm.

Non-integrated

63 x 72–117 mm.

Deflection

±10 mm deflection

With 72 mm channel.

±25 mm deflection

With 117 mm channel.

Finish

Aluminium anodized

Base channel -
Type

Integrated

80 x 38 mm.

Non-integrated

64 x 18 mm.

Finish

Aluminium anodized

Door

Double glazed door with tech panel

With 6 and 8 mm acoustic laminate glass. Includes mortice lock and back painted glass.

Double glazed pivot door

With 6 and 8 mm acoustic laminate glass. Includes mortice lock, magnetic gasket and lever handle.

Double glazed sliding door

With 6 mm acoustic laminate glass. Achieves Rw 35 dB acoustic performance. Includes magnetic gaskets and door handle.

Dry joints

Consult manufacturer and insert requirements.

Wall abutment

Consult manufacturer and insert requirements.

Accessories/ Other requirements

Not required

Aluminium joining strip

For double glazed sliding door only.

Inline poly

For double glazed sliding door only.

Mitred joint

For double glazed sliding door only.

Tape joint

For double glazed sliding door only.

Standard product features

Thickness:

60 mm.

Acoustic performance:

- Single glazed:

  • 10 mm toughened glass: Rw 34 dB.
  • 12.8 mm acoustic laminated: Rw 36 dB.

- Double glazed:

  • 10 + 10 mm toughened glass: Rw 38 dB.
  • 10.8 + 12.8 mm acoustic laminated: Rw 43 dB.

Product Options

Module size:

Other glass sizes are available, consult manufacturer for details.
