Z Planter

Verified by manufacturer 1 day ago

Zoontjens

Customizable planter system.

Jump to:
07435 963770 Website

Application

Customizable planter system adaptable to suit the needs of any project. Compatible with the following adjacent level surfaces: porcelain tiles, concrete flags and resin bonded gravel.

Description

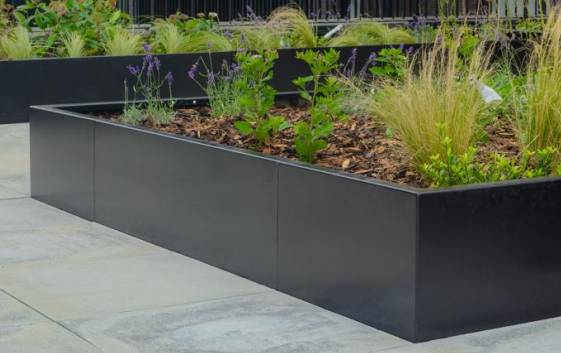

Z Planter is a customizable planter system featuring a range of straight, curved, angular, and tapered sections. The panels come in various heights and lengths, seamlessly integrating with seating elements and optional LED base lighting. Offered in a selection of finishes and mounting options, Z Planter is adaptable to suit the needs of any project.

Features and benefits:

  • Lengths, heights and layouts to suit any arrangement.
  • Heights range from 300 mm to 1100 mm.
  • Smooth joint appearance catering for thermal movement.
  • Wide range of seating options.
  • Easily installed with cordless tools.
  • Fast installation and alignment.
  • Fits to sub-base and perforated floor panels to maintain drainage flows.
  • Wide range of materials and finishes.

General information

Color

Beige

Black

Blue

Bronze

Brown

Show more

Manufacturer guidance

Available in any RAL code in the PPC range, oxidized, rust, natural.

Finish

Powder-coated

Anodized

Natural

Other

Manufacturer guidance

Available finishes included polyester powder-coating, Corten, rust, anodized, natural concrete stone effect.

Material

Aluminium

Steel

Timber

Wood

Cement

Shape

Rectangle

Square

Other

Length

3000 mm

Bespoke

Width

Bespoke

Height

300 mm

1100 mm

Uniclass

Pr_45_63_63_04 Aluminium plant containersPrimary
Pr_45_63_63_84 Steel plant containers

CAWS

Q31/292 Prefabricated plant containers

Specification data - Aluminium plant containers

Classification data

Finish

Polyester powder-coating.
Corten.
Rust.
Anodized.
Natural concrete stone effect.

Shape

Lineal.
Rectangle.
Square.
Curved.
Tapered.

Dimensions

-

Manufacturer guidance

Consult manufacturer and insert requirements.

  • Length : sectional up to 3 metres, lineal runs bespoke.
  • Height : 300 mm to 1100 mm.

Drainage holes

Weep holes in base corners.

Materials

Aluminium.
Mild steel.
Galvanized steel.

Base fixing

Direct onto drainage boards.
Aluminium sub-base with inset perforated floor panels.
Adjustable pedestals.
Concrete plinth.

Seating

Not required.
Sapele slats.

Guidance for specification option:

With galvanized steel support formers.

Iroko slats.

Guidance for specification option:

With galvanized steel support formers.

Cumaru slats.

Guidance for specification option:

With galvanized steel support formers.

Oak slats.

Guidance for specification option:

With galvanized steel support formers.

Integral accessories

Galvanized steel cross braces.
Perforated floor panels.
Sub-base.
Insulated linings.

Sustainability data

Material

Aluminium
Steel
Timber
Wood
Cement

Recyclability

can be recycled
