YewdaleDefiant® R40 Premium Roller Blind with Sidewinder Mechanism - Blind
Verified by manufacturer 3 months ago
R40-36: 36 mm
R40-36: 36 mm

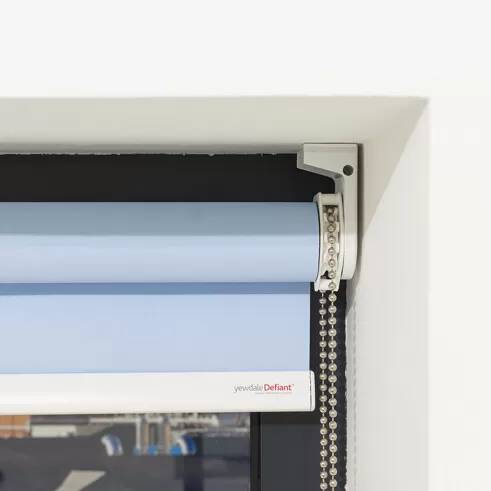

Heavy duty roller blind with premium sidewinder mechanism.
Application
For heavy duty use.
Description
PART NO R40-53**R40-70
Heavy duty roller blind with premium sidewinder mechanism available in three sizes.
Features and benefits:
- Either white plastic brackets for face or top fixing with 36 mm grooved aluminium barrel, or white metal brackets with 53 mm or 70 mm grooved aluminium barrel, depending on blind size and fabric weight.
- Superior quality 1:4 geared sidewinder mechanisms.
- The fabric is locked into a groove in the barrel.
- Features a white Tear Drop aluminium bottom bar as standard.
General information
Color | White |
Material | Aluminium PVC Polyester Plastic |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Product range |
Specification data - Roller blinds
Dimensions (minimum width x depth) | 200 x 3600 mm. |
Headrail | |
Material | Aluminium. |
Colour | White. |
Blinds | |
Material | PVC.Polyester.Manufacturer guidanceVarious, on request |
Finish | YewdaleDefiant Eden Daylight Fabric.YewdaleDefiant Eden Blackout Fabric.YewdaleDefiant Roe Fabric.YewdaleDefiant Dart Fabric.YewdaleDefiant Thames Fabric.YewdaleDefiant Roach.Guidance for specification option: Not available for vertical blinds |
Colour | Manufacturer guidanceAny colour from the range |
Tube | |
Diameter | 36 mm. |
Operation | Manual, metal chain. |
Accessories | 1.4 geared sidewinder. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
YewdaleDefiant® Brochure for fabric and blind systems
