YewdaleDefiant® C24 Cassetted Roller Blind with Crank Mechanism
Verified by manufacturer 4 months ago
C24-120: 120 mm
C24-120: 120 mm

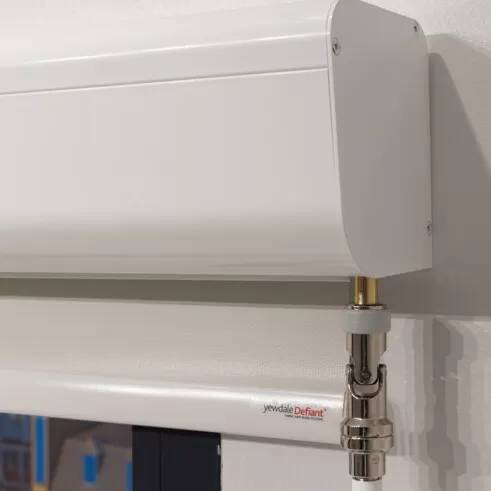

Cassetted roller blind with a detachable crank.
Application
Can be used in a range of applications.
Description
PART NO C24-90**C24-120
Cassetted roller blind with a detachable crank.
Features and benefits:
- Choose between square or rounded headbox.
- Durability and simplicity.
- Performs dependably in all kinds of contract applications.
- Smooth blind control.
- Safer for areas where cords are a threat.
- The fabric is locked into the barrel and bottom bar and supported by sturdy supports.
- A robust 1:3 gear mechanism operates the blind.
General information
Color | Black Guidance for specification option: Hardware White Guidance for specification option: Hardware Manufacturer guidanceAny RAL colour available |
Material | Aluminium PVC Polyester |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Product range |
Specification data - Roller blinds
Position | Face fixing.Top fixing. |
Dimensions (minimum width x depth) | 200 x 5750 mm. |
Headrail | |
Material | Aluminium. |
Colour | Black.White.Manufacturer guidanceAny RAL colour available |
Blinds | |
Material | PVC.Polyester.Manufacturer guidanceVarious available on request |
Finish | YewdaleDefiant Eden Daylight Fabric.YewdaleDefiant Eden Blackout Fabric.YewdaleDefiant Roe Fabric.YewdaleDefiant Dart Fabric.YewdaleDefiant Thames Fabric.YewdaleDefiant Roach.Guidance for specification option: Not available for vertical blinds |
Tube | |
Material | Aluminium. |
Diameter | 45 mm.53 mm.70 mm. |
Operation | Manual, crank. |
Accessories | Side guide wire.Round aluminium bottom barWhite plastic bottom bar.Fixed crank handle. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
YewdaleDefiant® Brochure for fabric and blind systems
