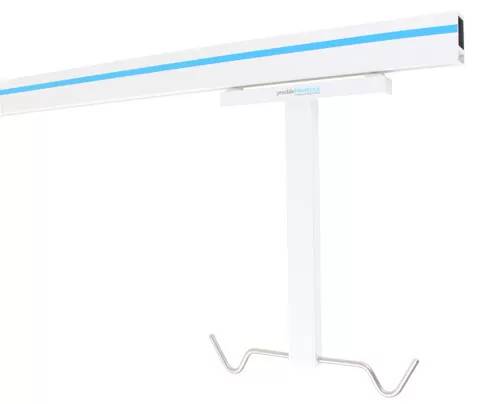

Yewdale Movatrack® IV400 Intravenous Cubicle Support Track - Cubicle track

Verified by manufacturer 4 months ago

Yewdale Corporation Ltd

Medium-duty intravenous cubicle support track.

Jump to:
BOS
+44 (0) 1268 570900 Website

Application

Applied in hospitals and used for cubicles and bed bays.

Description

PART NO IV400


Aluminium, medium-duty intravenous cubicle support track.


Features and benefits:

  • Can be mounted directly to the ceiling or suspended at cubicle track height of 2.1 m.
  • Hygienic, white powder-coated finish as standard.
  • Utilises economical two-point drip carriers with nylon runners.
  • Able to span 2.5 m without support and includes all necessary fittings.

General information

Color

White

Finish

Powder-coated

Material

Aluminium

Guidance for specification option:

High grade

Warranty description

Lifetime

Uniclass

Pr_40_20_76_84 Support railsPrimary

CAWS

N10/60 Curtain supports

N10/230 Curtain supports

Product range

Cubicle tracking

Specification data - Support rails

Form

Fixed.

Materials

-

Body

Aluminium

Guidance for specification option:

High-grade

Finish and colour

Powder coated, white.

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Literature

YewdaleMovatrack® the cubicle track range for hospitals and healthcare settings

YewdaleMovatrack® the cubicle track range for hospitals and healthcare settings
