Yewdale Movatrack® 100 cubicle curtain track - Curtain track
Verified by manufacturer 4 months ago
Curtain cubicle track.
Application

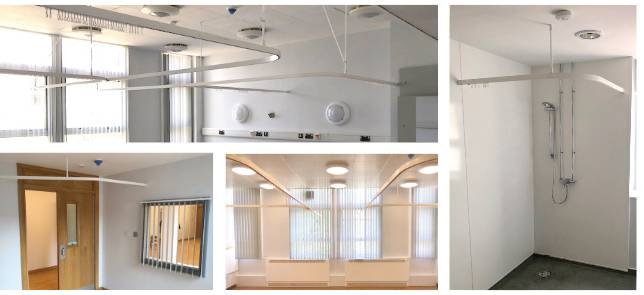

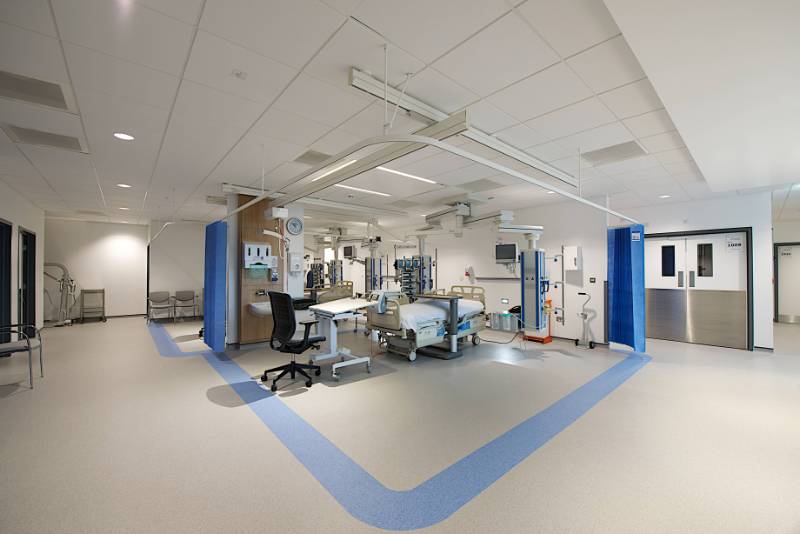

Used within hospitals and clinics worldwide, suited for use as shower tracks in washroom environments and other areas where room screening is required.
Description
PART NO 100

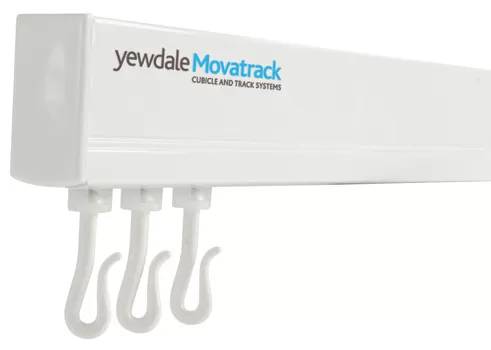

Rigid, high-grade aluminium cubicle track with an enclosed flat-top profile.
Features and benefits:
- Spans three metres between hangers.
- Self-lubricating wheeled roller runner hooks for a smooth curtain draw.
- NHS compliant, maintenance-free, double hangers to ensure full functionality of system.
- Flat top for easy cleaning.
- Curtain removal point for quick changeover of curtains.
- Approved track to work with Yewdale Harrier Disposable curtains.
General information
Color | White Silver Manufacturer guidanceAny RAL colour available to order |
Finish | Powder-coated Anodized |
Material | Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | N10/60 Curtain supports N10/230 Curtain supports |
Product range |
Specification data - Privacy curtains
Materials | |
Supports | |
Support type | Aluminium curtain rails. |
Finish and colour | Powder coated white.Guidance for specification option: Profile Anodised silver.Guidance for specification option: Track Manufacturer guidanceAny RAL colour available. |
Product Reference | Yewdale Movatrack® 100 cubicle curtain track |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
Literature
YewdaleMovatrack® the cubicle track range for hospitals and healthcare settings
Case studies
State of the art Spire Hospital specifies easy maintenance cubicle and curtain tracking
World class cubicle tracking and blinds fitted at Worcestershire Royal Hospital
