Xspan Pitched Polygon
Self-supporting, multi-faceted rooflight.
Application
Flat roof 0–15°.
Description

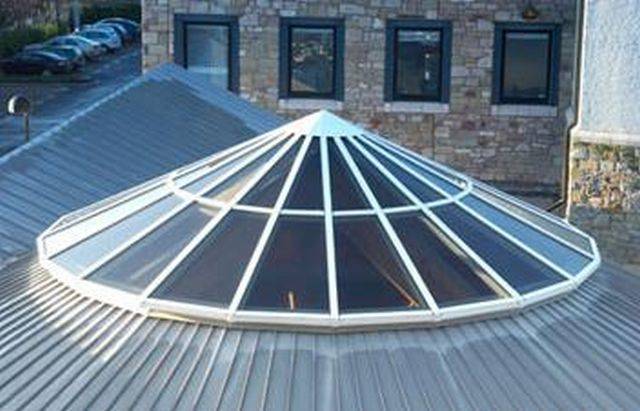

A self-supporting, multi-faceted rooflight, glazed with solid or multi-wall polycarbonate, or glass. Whilst slopes are commonly specified at 30º or 45º, they can be as low as 10º to near vertical.
Features and benefits:
- Round, faceted pyramid shape.
- The system has internal water management system.
- Can be glazed in multi-wall structured polycarbonate or glass, giving exceptional thermal performance for Part L compliance.
- Finished in powder-coated white as standard, other options available on request.
Performance:
- Maximum wind loading to BS 6399:1: 1.5 kPa.
- Maximum imposed loading to BS 6399:3: 0.75 kPa.
- Safety: Non-fragile – polycarbonate rooflights achieve a Class B rating to ACR[M]001:2014, and glass options are available with a CWCT Class 1 or Class 2 specification.
General information
Color | White Bespoke |
Finish | Polyester powder-coated (PPC) |
Material | Aluminium; Polycarbonate; Glass |
Shape | Rectangular |
Size | Up to 8000 x 8000 mm, self-supporting. Consult manufacturer and insert requirements. |
WarrantyDescription | Available on request |
Uniclass 2015 | |
CAWS | L10/45 Rooflights L10/460 Rooflights |
Specification data - Framed rooflights Enhanced data
Form | Self-supporting, multi-faceted rooflight. |
Size | Up to 8000 x 8000 mm.Up to 8000 x 8000 mm, self-supporting. Consult manufacturer and insert requirements. |
Product performance | - |
Fire performance | - |
Fire resistance | To BS 476, Part 7: Class 1, AA. TPa rated. |
Reaction to fire | EN 13501-1: Class B-s1,d0.Surface spread of flame: EN 13501-5 + A1: Broof (t4). |
Whole window U-value | <1.6 W/m²K. |
Frame | - |
Material | Aluminium. |
Finish | - |
Coating | Polyester powder-coating. |
Colour | White.Polyester powder-coated, standard. RAL.Polyester powder-coated; insert requirements. |
Film thickness (minimum) | 0.6 µm. |
Glazing or infill | - |
Type | Glass.Polycarbonate. |
Construction | Double glazed Insulating glass unitsGlass only. Solid single skin.Polycarbonate only. Multi-wall structured.Polycarbonate only |
Colour | Bronze.Reduces light transmission and solar gain. Clear.Offers high light transmission and allows full vision of views or objects. Opal.Prevents vision of views and objects. |
Coating | Manufacturer's standard. |
Integral kerb | Aluminium cill. |
Operation | - |
Control | Manual.Electric, 230 V/ 24 V opening vents.Consult manufacturer for details. |
Product Reference | Xspan Pitched Polygon |
Maximum wind loading | To BS 6399-1: 1.5 kPa. |
Maximum imposed loading | To BS 6399-3: 0.75 kPa. |
Environmental information
Country of product manufacture | United Kingdom |
Embodied carbon | Meets BRE EN 15804:2012+A1:2012 |
