XPress Copper
Application

  • Hot and cold water services.
  • Closed circuit heating.
  • Chilled water and oil-free compressed air applications.
  • Incorporating a unique and timesaving Leak Before Press (LBP) design to instantly identify un-pressed joints.

Description

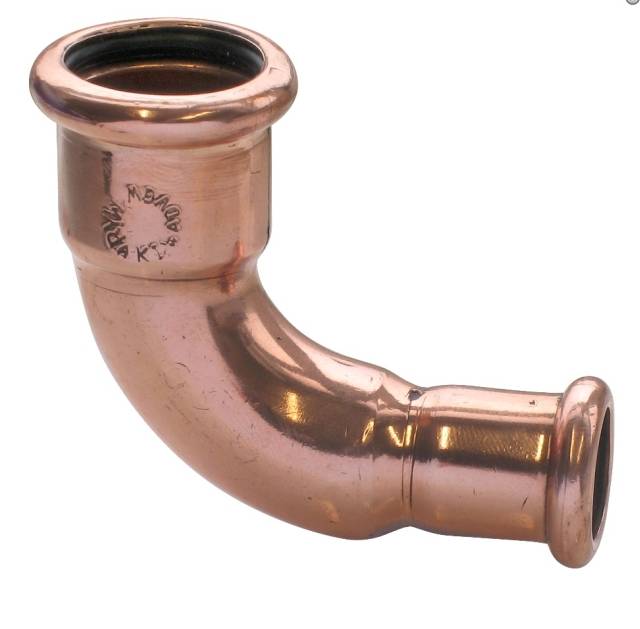

XPress copper fittings are manufactured from copper and copper alloy in sizes from 15–108 mm and are ideal for jointing copper tube to BS EN 1057. Incorporates a black Ethylene Propylene Diene Monomer (EPDM) 'O' ring.

Applications:

  • Hot and cold water services.
  • Closed circuit heating.
  • Chilled water and oil-free compressed air applications.
  • Incorporating a unique and timesaving Leak Before Press (LBP) design to instantly identify un-pressed joints.

The range includes:

  • Straight and reduced couplings.
  • Straight male and female connectors.
  • Elbows and street elbows.
  • Equal tees.
  • Tee, reduced branches.
  • Stop ends.
  • Union connector.

25 year guarantee. BSI Kitemark certified plus WRAS and DVGW approved.

General information
Uniclass 2015
Pr_65_52_63_18 Copper pipeline fittingsPrimary
CAWS

S90/110 Mains cold water supply

S90/120 Storage cold water supply

S90/130 Instantaneous hot water supply

S90/140 Direct hot water storage supply

S90/150 Indirect hot water storage supply

S90/160 Rainwater/ greywater recycling system

Specification data - Copper pipeline fittings
Product Reference

XPress Copper

Type

Consult literature for details and insert requirements.

Standard product features

Service temperature/ pressure (15–108 mm):

-20°C to +110°C: 16 bar.
