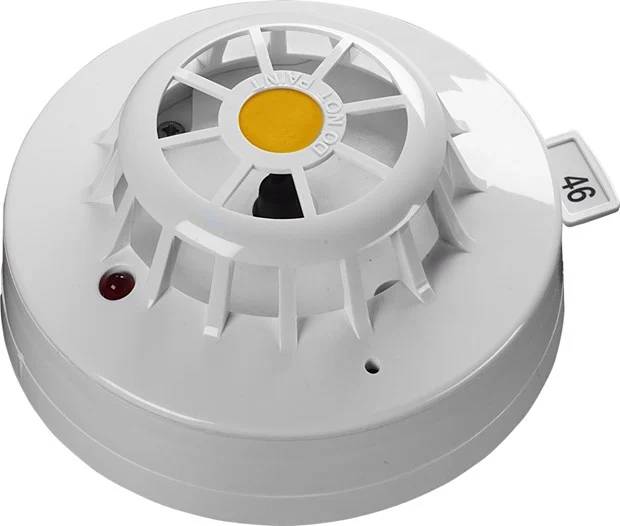

XP95 Heat Detector A2S
Verified by manufacturer 2 days ago
Certificate of constancy of performance
Certificate type
Certificate of constancy of performance
Certificate type
LPCB Certification
Certificate type
An addressable heat detector.
Application
- Car parks/ loading bays
- Dusty environments
- Warehouses
- Hotels
- Offices
- Restaurants
- Retail
- Cafes
- University campuses.
Description
The XP95 Heat Detector (A2S) monitors temperature by using a single thermistor which provides a count output proportional to the external air temperature, reporting an alarm at 55°C.
Features and benefits:
- Reliable fire detection in areas with a wide temperature range from -20°C to +70°C.
- Well-suited to environments that are dirty or smoky under normal circumstances.
- Unaffected by wind or atmospheric pressure.
General information
Color | White |
Finish | Gloss |
Material | Polycarbonate |
Shape | Circle |
Length | 100 mm |
Width | 100 mm |
Height | 42 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | W90/327 Point heat detectors |
SKU Code | 55000-400APO |
Specification data - Point heat detectors
Classification data | |
Standard | To EN 54-5. |
Third-party certification | LPCB and CPR. |
Classification | A2. |
Suffix | S. |
Power source | Loop powered. |
Colour | White. |
Weight | 105 g. |
Materials | Polycarbonate housing and nickel-plated stainless steel terminals. |
Diameter | 100 mm. |
Depth | 42 mm. |
Detector | Linear approximation over temperature range 25–90°C. Manufacturer guidanceDetection principle. |
Ingress protection (IP) rating | IP54. |
Voltage | 17–28 V d.c. Manufacturer guidanceSupply voltage (Vmin-Vmax). |
Indicator colour | Red LED status indicator. Guidance for specification option: Alarm: Red. Fault: Off. |
Operating temperature | -20 to +70°C. |
RelativeHumidity | 0% to 95% (no condensation or icing). |
Alarm | Alarm level analogue value: 55. |
Sustainability data
Material | Polycarbonate |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Product certifications
Certificate of constancy of performance
2531-CPR-CSP10913
Certificate of constancy of performance
8504-UKCA-CPR-UKCSP10115
LPCB Certification
LPCB - 010p Issue 45
Literature
XP95 Heat Detector
