Xflo Plaza Permeable Paving - Sustainable method for storm water use

Name: Xflo Plaza Permeable Paving - Sustainable method for storm water use
Brand: AG Paving and Building Products Ltd
SKU: dMNMUmVdVX4wAu327py2gu

Verified by manufacturer 3 days ago

AG Paving and Building Products Ltd

Product certifications:

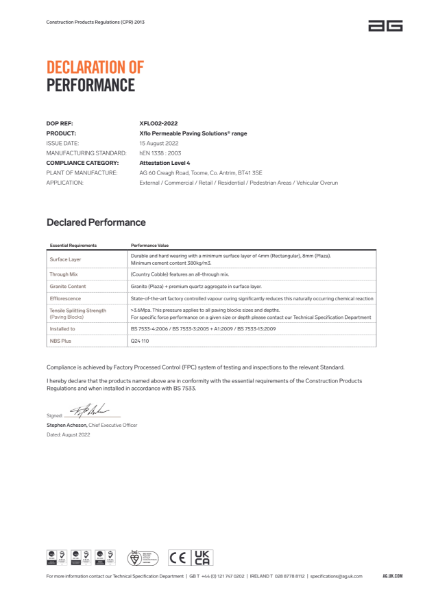

DoP
Certificate type
EPD
Certificate type

Xflo permeable paving solutions are a highly effective, sustainable method of dealing with storm water control. Xflo is available in a range of paving finishes and unit sizes.

Jump to:

028 8952 1275 Website

Application

Suitable for permeable paving block systems for all applications from domestic to commercial schemes.
Appropriate for all types of loading from pedestrian to heavy duty traffic.

Description

These Permeable paving blocks are an ideal paving solution for source control within Sustainable Urban Drainage Systems (SuDS). Designed to work in conjunction with a specified sub-base, these innovative paving blocks allow surface water to pass through the joints and into a carefully engineered, voided sub-base.

Once in the sub-base, water is naturally treated and either stored for gradual infiltration into the ground or released in a controlled manner into the surface water drainage system for attenuation. This advanced paving solution supports effective water management while contributing to long-term sustainability in both residential and commercial projects.

Features and benefits:

Designed to allow an initial surface infiltration in the order of 2000 L/s/ha.
Manufactured from premium quality selected granite and other natural aggregates.
The textured washed surface gives the appearance of natural granite stone.
The enlarged spacers on the sides of the block create 7 mm wide joints which allow surface water to pass through the paving. Enlarged spacers are dropped (invisible on the surface).

General information

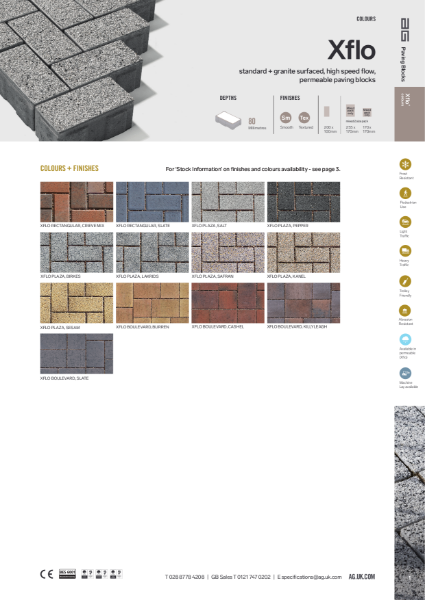

Color	Beige Black Cream Gold Grey Yellow Silver Show more
Finish	Textured Guidance for specification option: Sstone washed
Material	Aggregate
Shape	Rectangle Square
Length	255 mm 200 mm 100 mm 150 mm
Width	100 mm 150 mm 170 mm
Height	80 mm 60 mm

Uniclass	Pr_25_93_60_17 Concrete paving blocksPrimary
CAWS	Q24/115 Permeable concrete block paving – total infiltration Q24/117 Permeable concrete block paving – partial infiltration Q24/119 Permeable concrete block paving – no infiltration Q24/12 Permeable concrete block paving

Specification data - Concrete paving blocks

Classification data
Standard	BS EN 1338. Manufacturer guidance Standard: Manufactured to BS EN 1338. Surface layer: Durable and hard wearing with a minimum surface layer of 8 mm. Minimum cement content 380 kg/m³. Granite content: Granite and premium quartz aggregate in surface layer. Efflorescence: State-of-the-art factory controlled vapour curing significantly reduces this naturally occurring chemical reaction. Tensile Splitting: >3.6 MPa. This pressure applies to all sizes and depths. Strength: For specific force performance on a given size or depth please contact AG's Technical Specification Department. CE marked; Certificate 04/1-7-13, attestation Level 4 CPR (2011) Annex V.
Physical properties	-
Colour	Salt. Pepper. Kardemom. Salvie. Kanel. Safran. Paprika. Lakrids. Sesam. Birkes. Sinnep.
Finish	Textured stone washed.
Profile	-
Paver type	Regular plan form. Guidance for specification option: Standard surface, granite surface and subtly antiqued surface high speed flow, permeable paving blocks.
Dimensions and associated tolerances	-
Nominal sizes	60 x 200 x 100 mm. 80 x 200 x 100 mm. 80 x mixed pack (255 x 170 mm/ 170 x 170 mm).

Sustainability data

Contains Red List materials	No
Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Material	Aggregate
A1-A3 (production stage)	Embodied carbon as defined in BS EN 15804
Normalised unit	0.076 kg CO₂ eq/kg
Declared unit	179 kg CO₂ eq/m³ Certified Lower emissions Manufacturer guidance Carbon footprint: AG have a new state-of-the-art washing plant which enables AG to produce paving from 100% recycled waste aggregate. BREEAM rating: 60 mm: A Rating – according to the Green Guide to Specification 4th edition 2009. A+ Rating can be achieved when used in conjunction with a prepared recycled sub-base. 80 mm: B Rating – according to the Green Guide to Specification 4th edition 2009. A Rating can be achieved when used in conjunction with a prepared recycled sub-base.
Recyclability	100% Manufacturer guidance Energy use: 100% renewable energy. Water used: 90% recycled water Recyclability: 100% of this product can be recycled. Manufacturing location: Produced in the UK using responsibly sourced materials. Waste wood and plastic: 100% recycled.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	52 %
