NBS Source
Xeno² Wall-Hung WC, Washdown, Shrouded, Rimfree

Application

  • For concealed cisterns.
  • For pressure flushing valves.

Description

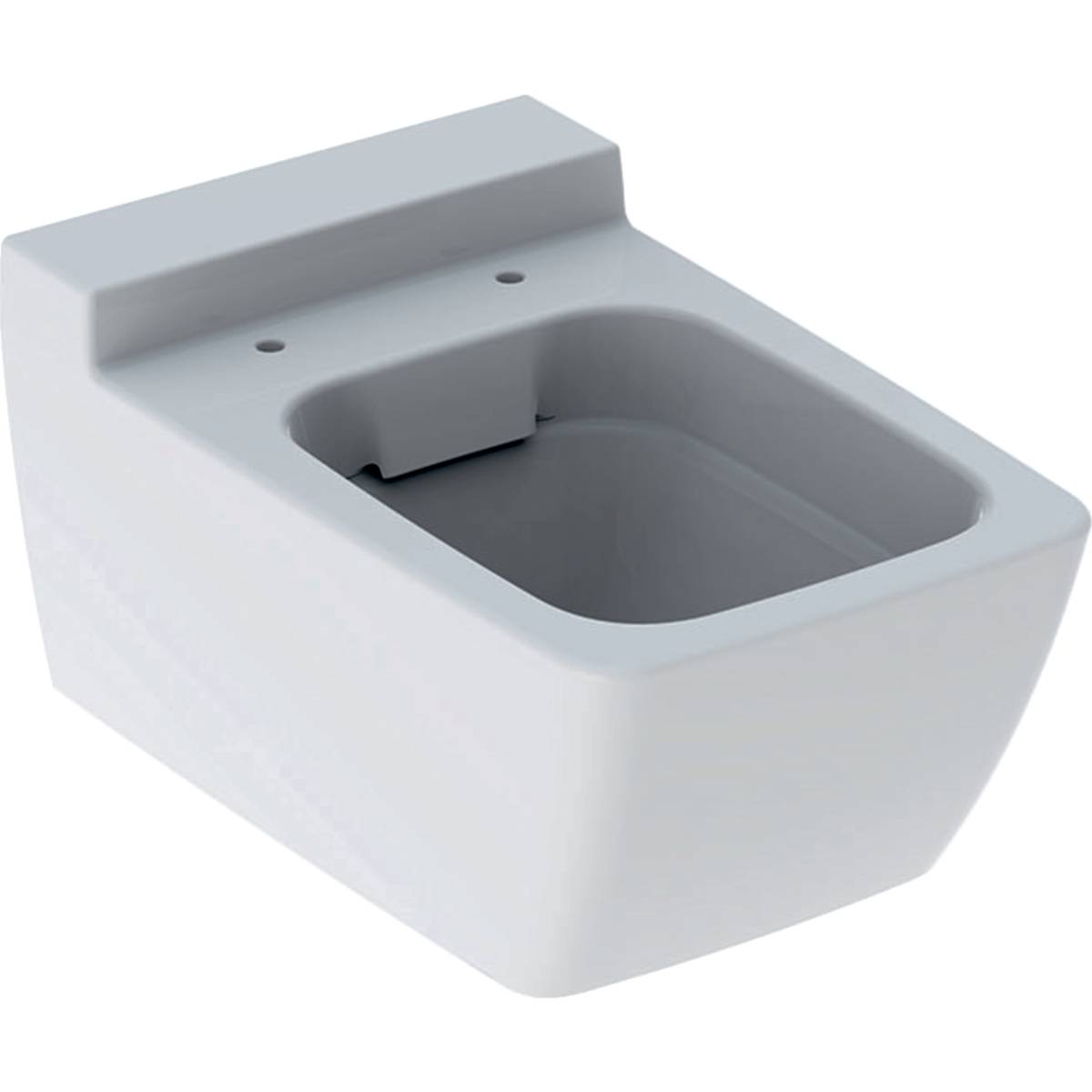

Geberit Xeno² wall-hung WC, washdown, shrouded, Rimfree.


Features and benefits:

  • Rimfree.
  • Wall-hung.
  • Washdown WC.
  • Easy fastening with Geberit WC wall fixing type EFF3.
  • Type 1, full flush volume 6 / 5 l, in accordance with EN 997.
  • Type 2 in accordance with EN 997.
  • Flushes with 4.5 L.
  • Hidden fastening.
  • Shrouded.

General information

Color

White

Material

Vitreous china

Shape

Rectangle

Length

540 mm

Width

350 mm

Height

375 mm

Uniclass

Pr_40_20_93_94 WC pansPrimary
Ss_40_15_75_97 WC systems

CAWS

N13/10 WC pans and flushing arrangements

N13/300 WCs and cisterns

Specification data - WC pans Enhanced data

Standard

To BS EN 997, Class 2.

Form

Wall-mounted, washdown.

Pan height

410 mm.

Materials

-

Body

Vitreous china to BS 3402.

Finish and colour

White.

Water supply, outlet and seat holes

-

Water supply

Back inlet.

Seat holes

None, integral seating rim.

Material/ Surface finish

KeraTect.

Fixing

500.105.00.1, Fastening material for wall-hung WCs and wall-hung bidets.

Seat

Not required.

500.537.01.1, Xeno² soft close seat & cover, white.

500.833.01.1, Xeno² soft close seat and cover with quick release, top fix hinge, white.
