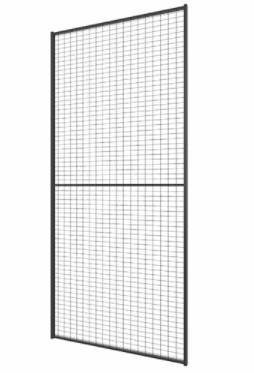

X-Guard Machine Guarding - W322 Classic 50 x 30 mm Mesh Panel RAL 9011

Application

Panels for machine guarding.

Description

Machine guarding mesh panels which comply with the Machine Directive’s new demands on permanent guards from 29 December, 2009.


The panels are available in four different heights 750 mm, 1300 mm, 1900 mm and 2200 mm. The 750 mm panel is only used for extension to the other heights. They are available in thirteen different widths, except the 1300 mm height that is in fourteen widths. The standard colour is RAL 9011 however the panels can also be tailored to specific customer requirements. Fixings are included.


Premium mesh (50 x 20 mm) and plastic panels also available; consult manufacturer for details.


Technical characteristics:


  • Safety distance: 200 mm.
  • Uprights: 30 x 20 mm.
  • Horizontals: 25 x 15 mm.
  • Suitable posts: 50 x 50 mm, 70 x 70 mm, 50 x 100 mm or 100 x 100 mm.
  • Vertical wires: 3 mm diameter.
  • Horizontal wires: 2.5 mm diameter.
  • Mesh apertures: 51 x 31 mm.

General information

Shape

Rectangle

Color

Black

RAL 9011

Finish

Powder coated

Electrophoretic deposition

EPD.

Material

Steel

WarrantyDescription

One year

Size

Height: 750–3000 mm; width: 250–1500 mm.

-

Uniclass

Pr_25_71_57_60 Partition panelsPrimary

CAWS

K30/170 Mesh panel partitions

K30/40 Mesh panel partitions

Product range

Safety Fencing
Axelent
X-Guard
Machine Guarding

Specification data - Partition panels Enhanced data

Unit size

-

Partition height (nominal)

Height: 750–3000 mm available; consult manufacturer for details.

750 mm.

Extension piece.

1300 mm.

1900 mm.

2200 mm.

Width (nominal)

250 mm.

400 mm.

500 mm.

600 mm.

700 mm.

800 mm.

900 mm.

1000 mm.

1100 mm.

1200 mm.

1300 mm.

1400 mm.

1500 mm.

2200 mm.

For 1300 mm height only.

Panel partition type

Mesh.

Solid panels

-

Finish and colour

Phosphatising/ epoxy paint, black RAL 9011.
